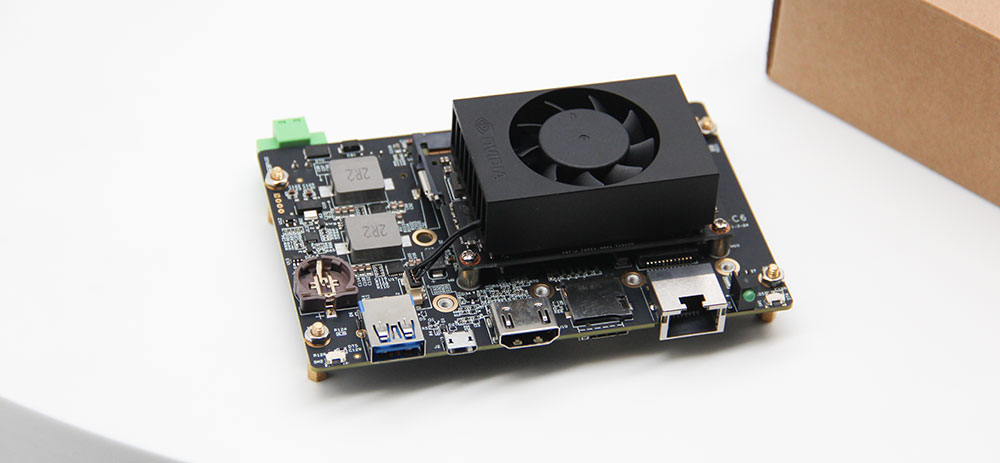

NVIDIA Jetson Orin Nano/Orin NX|

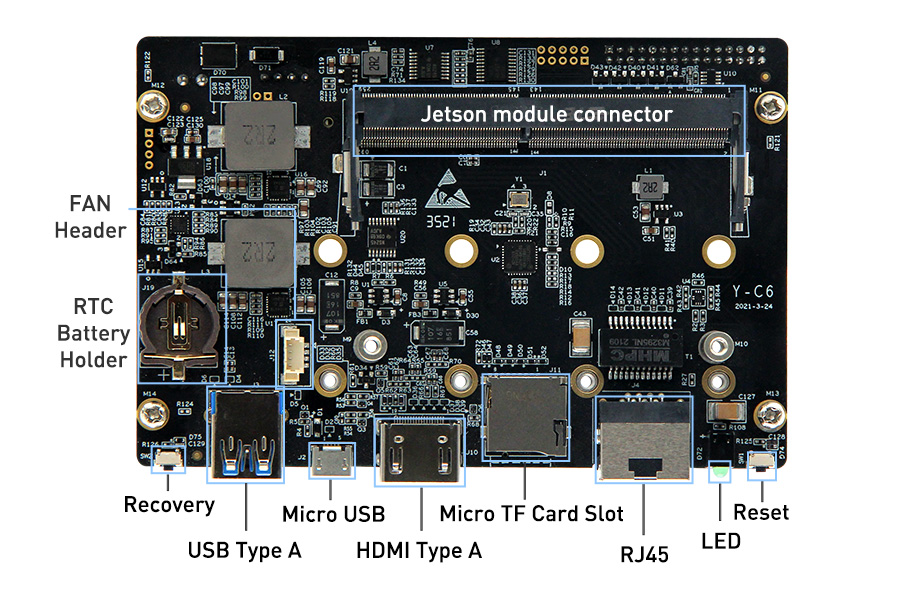

Product Name
|
Y-C6-DEV
|
|
Type
|
开发套件
|
|
Jetson Module Supported
|
NVIDIA Jetson Orin Nano/Orin NX/Xavier NX/TX2 NX/Nano
|
|
Networking
|
1x Gigabit Ethernet (10/100/1000 BASE-T) RJ45
|
|
USB
|
1x USB 3.0
1x Micro USB |
|
Camera
|
2x 2 Lane MIPI camera FPC connector
|
|
Display
|
1x HDMI
|
|
FAN
|
1x FAN
|
|
Other I/O
|
1x CAN, 2x RS232, 1x UART, 3x GPIO, 1x GPO, 1x SPI, 2x I2C
|
|
Mechanical
|
120mm x 80mm x 35mm
|
|
Weight
|
158g
|
|
Operating Temperature
|
-20℃~+65℃
|
|
Module
|
Jetson Orin NX 16GB
|
Jetson Orin NX 8GB
|
Jetson Orin Nano 8GB
|
Jetson Orin Nano 4GB
|
|
AI Perf
|
100 TOPS
|
70 TOPS
|
40 TOPS
|
20 TOPS
|
|
GPU
|
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
|
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
|
||
|
CPU
|
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3 |
||
|
Memory
|
16GB 128-bit LPDDR5
102.4GB/s |
8GB 128-bit LPDDR5
102.4GB/s |
8GB 128-bit LPDDR5
68 GB/s |
4GB 64-bit LPDDR5
34 GB/s |
|
Storage
|
-
(Supports external NVMe) |
|||
|
Video Encode
|
1x 4K60 (H.265)
3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
1080p30 supported by 1-2 CPU cores
|
||
|
Video Decode
|
1x 8K30 (H.265)
2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
1x 4K60 (H.265)
2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
||
|
CSI Camera
|
Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
||
|
Power
|
10W - 25W
|
10W - 20W
|
7W - 15W
|
7W - 10W
|
|
|

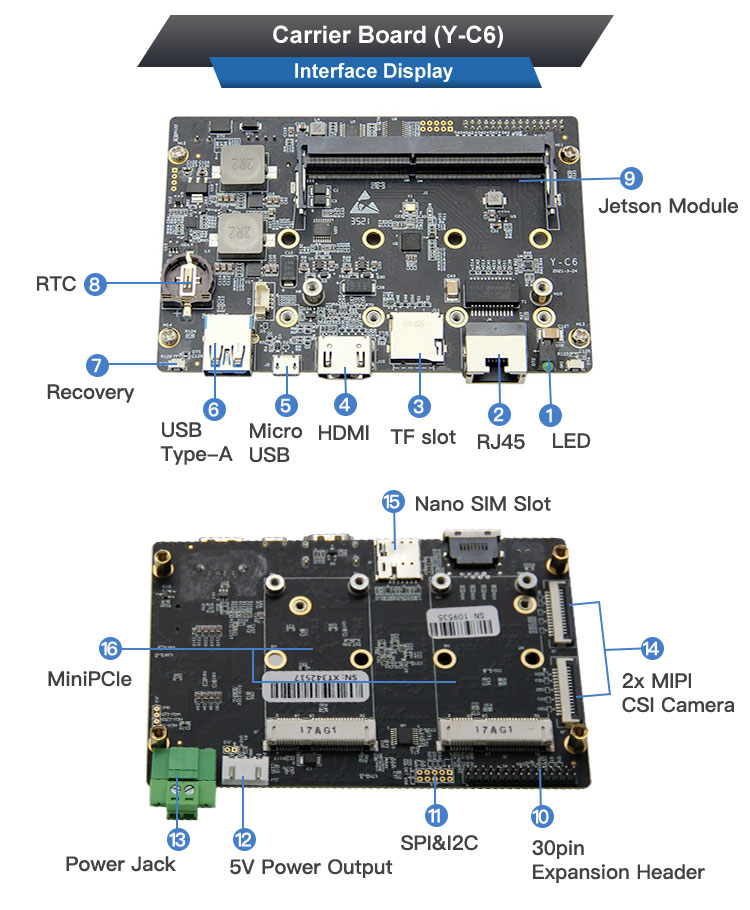

Xavier NX
|
Orin NX
|
|
HDMI
|
Support
|
Support
|
|
USB 3.0
|
Support
|
Support
|
|
Micro USB
|
Use to Flash System
|
|
|
Micro SD
|
Support
|
Nonsupport
|
|
RST
|
Support
|
Support
|
|
GPIO
|
Support
|
Support
|
|
I2C
|
Support
|
Support
|
|
CAN
|
Support
|
Support
|
|
SPI
|
Support
|
Support
|
|
MiniPCIe
|
Support
|
Support
|
|
USB 2.0
|
Support
|
Support
|
|
UART 0
|
Support
|
Support
|
|
UART 1
|
Support
|
Support
|
|
UART 2(DeBug)
|
Support
|
Support
|
|
MIPI
|
Support
|
-
|
*当Y-C6安装Jetson Nano模块时，CAN不可用，1 miniPCIe连接器不可用。
