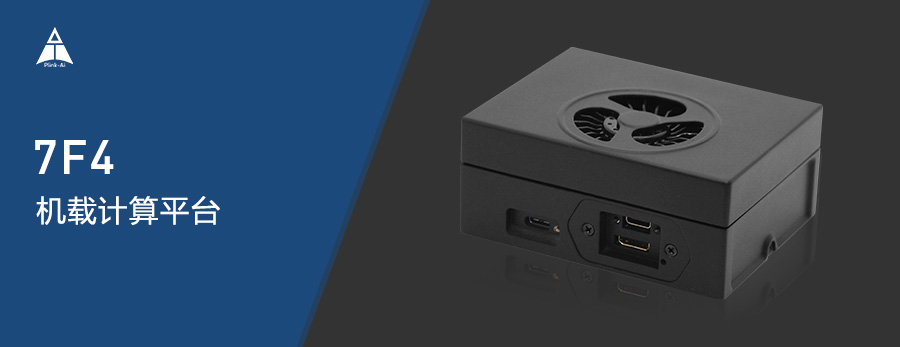

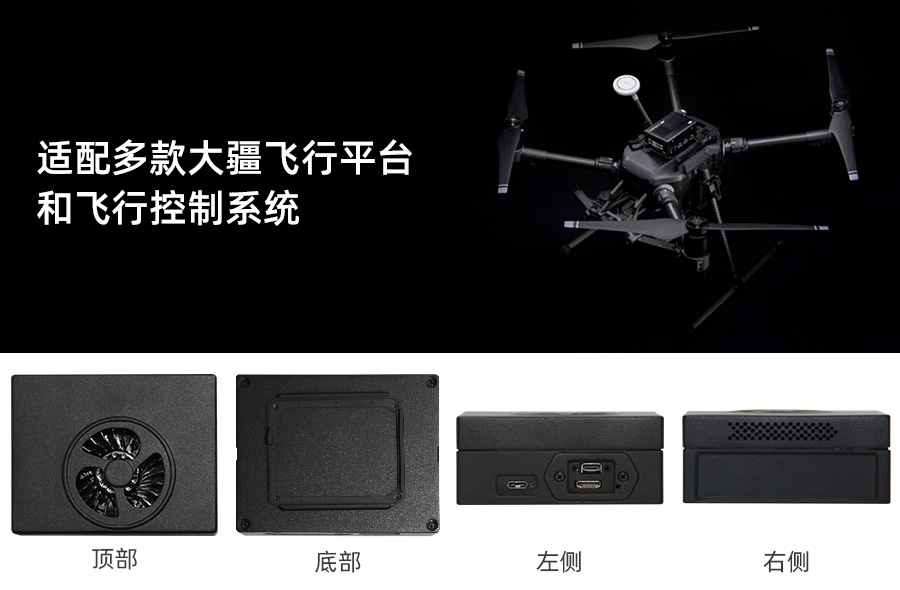

7F4 是一款基于 NVIDIA Jetson Xavier NX 16G / Orin NX 16G 核心模组设计的机载计算平台
产品参数
|
|
NX16-7F4 |
ONX16-7F4 |
|
AI Performance |
21 TOPS |
100 TOPS |
|
GPU |
384-core NVIDIA Volta™ GPU with 48 Tensor Cores |
NVIDIA Ampere architecture with 1024 NVIDIA® CUDA® cores and 32 tensor cores |
|
CPU |
6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3 |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
|
DL Accelerator |
2x NVDLA |
2x NVDLA v2 |
| Vision Accelerator |
2 x PVA |
PVA v2.0 |
|
Memory |
16GB 128-bit LPDDR4x 59.7GB/s |
16GB 128-bit LPDDR5 102.4 GB/s |
|
Storage |
16GB eMMC 5.1 |
Supports external NVMe |
|
Camera |
Up to 6 cameras (24 via virtual channels) 14 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
Up to 4 cameras (8 via virtual channels*) 8 lanes MIPI CSI-2 D-PHY 1.2 (20 Gbps) |
|
Video Encode |
2x 4K60 (H.265) 10x 1080p60 (H.265) 22x 1080p30 (H.265) |
1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
|
Video Decode |
2x 8K30 (H.265) 6x 4K60 (H.265) 22x 1080p60 (H.265) 44x 1080p30 (H.265) |
1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
|
PCIe |
1 x1 (PCIe Gen3) + 1 x4 |
1 x4 + 3 x1 (PCIe Gen4, Root Port & Endpoint) |
| Networking |
10/100/1000 BASE-T Ethernet |
1x GbE |
|
Display |
2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 No DSI support |
1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
|
Power |
10W | 15W | 20W |
10W | 15W | 25W |
|
Mechanical |
69.6mm x 45mm 260-pin SO-DIMM connector |
69.6mm x 45mm 260-pin SO-DIMM connector |
*Jetson Orin 模组的虚拟通道相关摄像头信息并非最终信息，可能会发生变化。
Related optional accessories
订货信息
| 订货型号 | 功能描述 |
|
NX16-7F4 |
基于 NVIDIA Jetson Xavier NX 16G核心模组设计的机载计算平台 |
|
ONX16-7F4 |
基于 NVIDIA Jetson AGX Orin NX 16G 核心模组设计的机载计算平台 |
