NVIDIA Jetson Orin NX/Orin Nano 载板 Y-C11

NVIDIA Jetson Orin NX/Orin Nano 载板 Y-C11

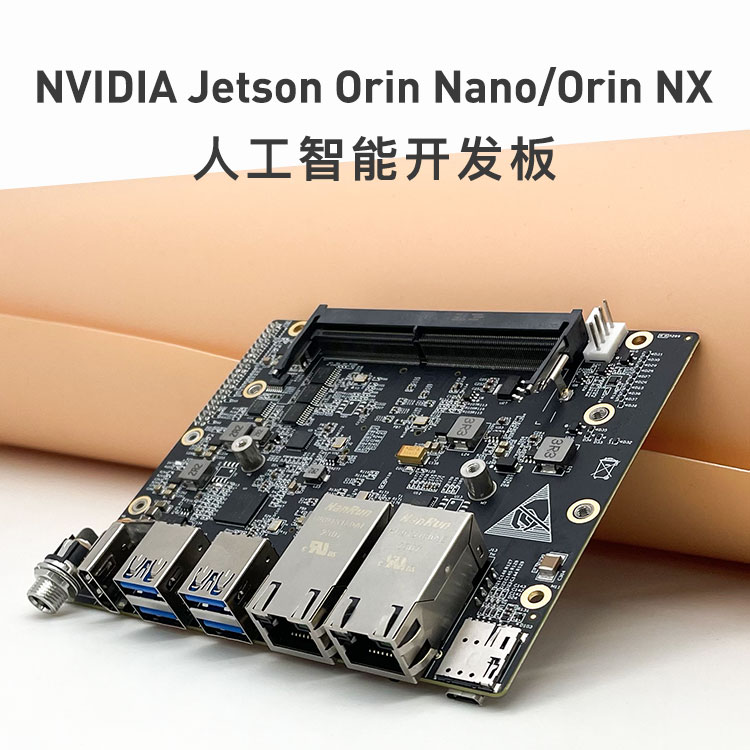

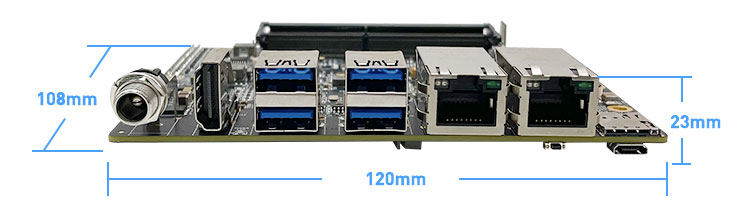

板卡尺寸:120mm*108mm*23mm
电源输入:DC +12V~+24V
工作温度: -20~+65°C
重量：108g

NVIDIA Jetson Orin Nano/Orin NX

Y-C11 载板/开发板

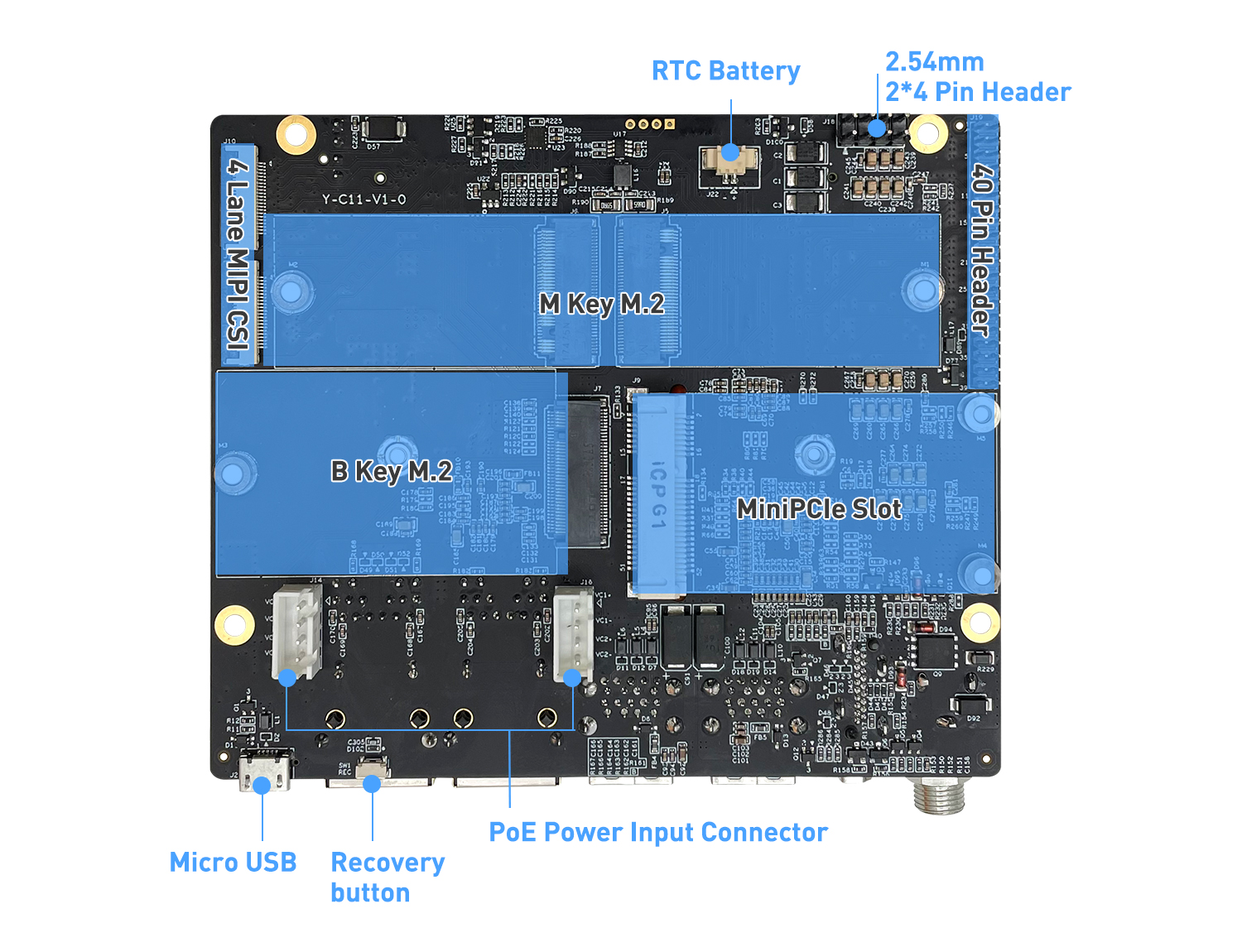

主要特性

* 适配模组: NVIDIA Jetson Orin NX/Orin Nano Module

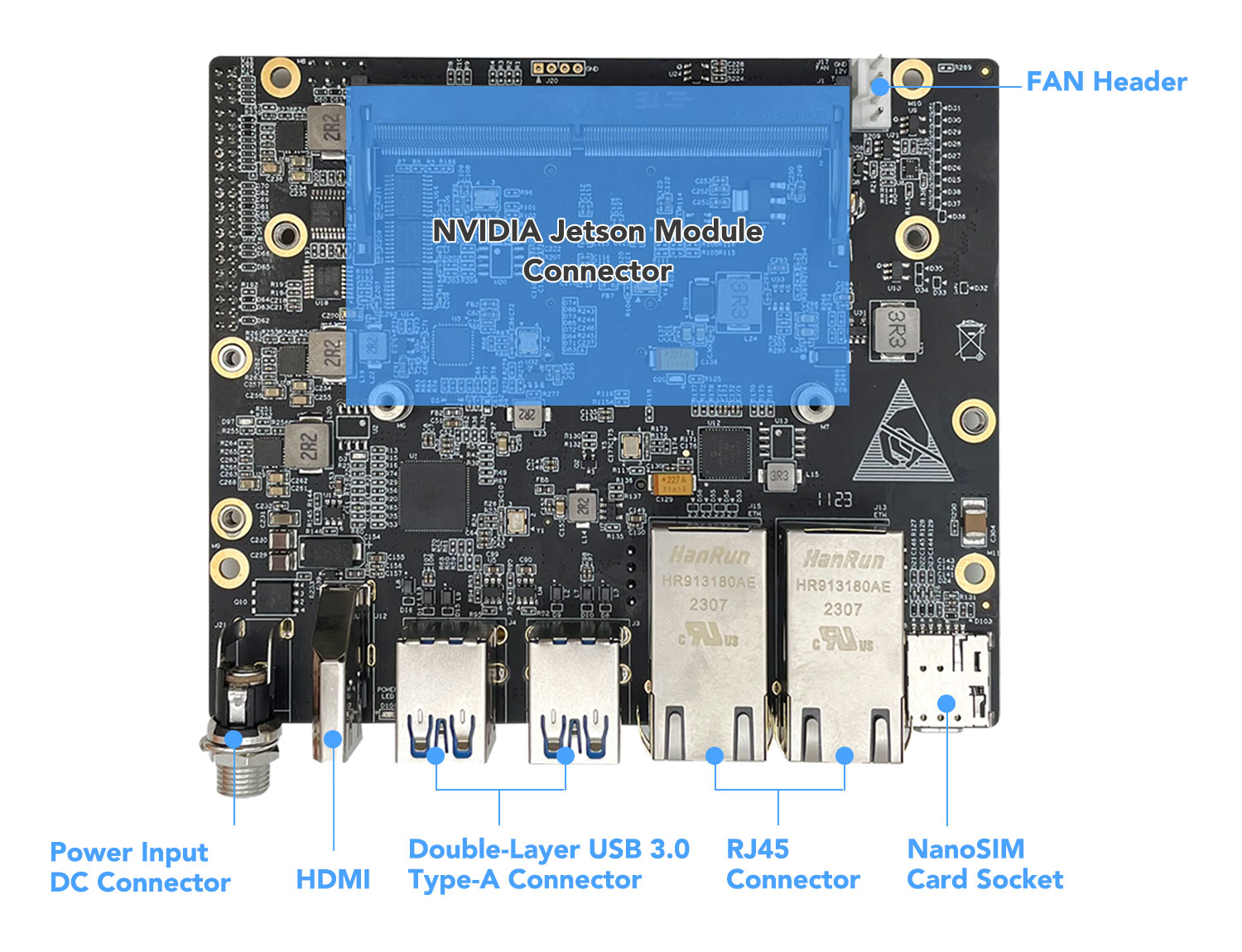

* 通用接口:

Offer 2x Gigabit Ethernet (10/100/1000 BASE-T) RJ45 connector (extensible support POE power supply), 4x USB 3.0, 1x Micro USB, 1x HDMI Type-A and 1x Nano SIM

* Other I/O: 2x M.2 2242 M key, 1x M. 2 3050 B key slot (for 4G/5G module), 2x 4 Lane MIPI camera interface FPC connector, 2x 20 pin 2.0mm spacing multi-function extension pin connector (including 4x GPIO, 2x I2C, 2x SPI, 1x I2S, 2x UART)

* 输入功率: DC +12V~+24V

* 工作温度：-20°C to 65℃
* 尺寸: 120mm*108mm*23mm

Product Name	Y-C11
Jetson Module Supported	NVIDIA Jetson Orin Nano/Orin NX
Networking	2x Gigabit Ethernet (10/100/1000)
USB	4x USB 3.0 1x Micro USB
Camera	2x 4 Lane MIPI camera interface FPC connector
Display	1x HDMI
FAN	1x FAN connector
M.2 KEY M	2x M.2 KEY M interface
Other I/O	1x CAN, 4x GPIO, 2x I2C, 2x SPI, 1x I2S, 1x UART
Mechanical	120mm x 108mm x 23mm
Weight	108g
Operating Temperature	-20℃~65℃

NVIDIA Jetson Orin NX to NVIDIA Jetson Orin Nano module comparison

	Jetson Orin NX 16GB	Jetson Orin NX 8GB	Jetson Orin Nano 8GB	Jetson Orin Nano 4GB
AI Performance	100 TOPS	70 TOPS	40 TOPS	20 TOPS
GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores			512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
CPU	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU2MB L2 + 4MB L3	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3
Memory	16GB 128-bit LPDDR5 102.4GB/s	8GB 128-bit LPDDR5 102.4GB/s	8GB 128-bit LPDDR5 68 GB/s	4GB 64-bit LPDDR5 34 GB/s
Storage	- (Supports external NVMe)
Video Encode	1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)		1080p30 supported by 1-2 CPU cores
Video Decode	1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)		1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)
CSI Camera	Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)		Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)
PCIe	1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint)		1 x4 + 3 x1 (PCIe Gen3, Root Port, & Endpoint)
USB	3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0		3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0
Networking	1x GbE
Display	1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1		1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4**
Other I/O	3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs		3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
PowerPower	10W - 25W	10W - 20W	7W - 15W	7W - 10W
Mechanical	69.6mm x 45mm 260-pin SO-DIMM connector
