NVIDIA Jetson AGX Xavier Series

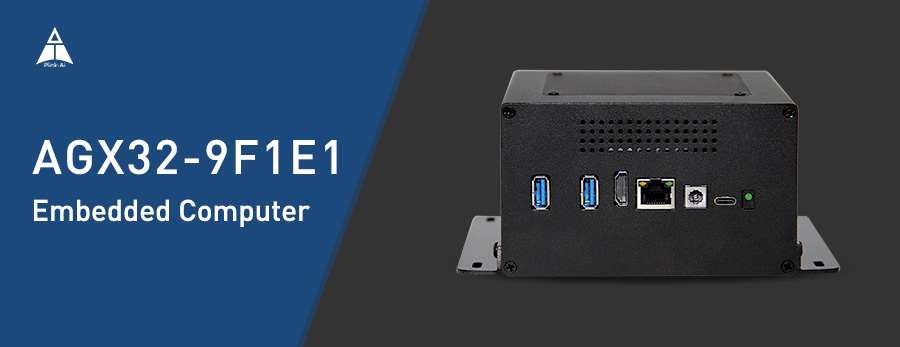

Embedded Computer 9F1E1
* NVIDIA Jetson Carrier Board:
|
Product Name
|
9F1E1
|
|
Jetson Module Supported
|
NVIDIA Jetson AGX Xavier/AGX Xavier Industrial
|
|
Networking
|
1x Gigabit Ethernet (10/100/1000 BAST-T) RJ45
|
|
USB
|
3x USB
1x Micro-B |
|
Display
|
1x HDMI
|
|
FAN
|
1x FAN（12V PWM）
|
|
Mechanical
|
167mm×132mm×75mm
|
|
Weight
|
1061g
|
|
Operating Temperature
|
-20℃~+65℃
|
|
|

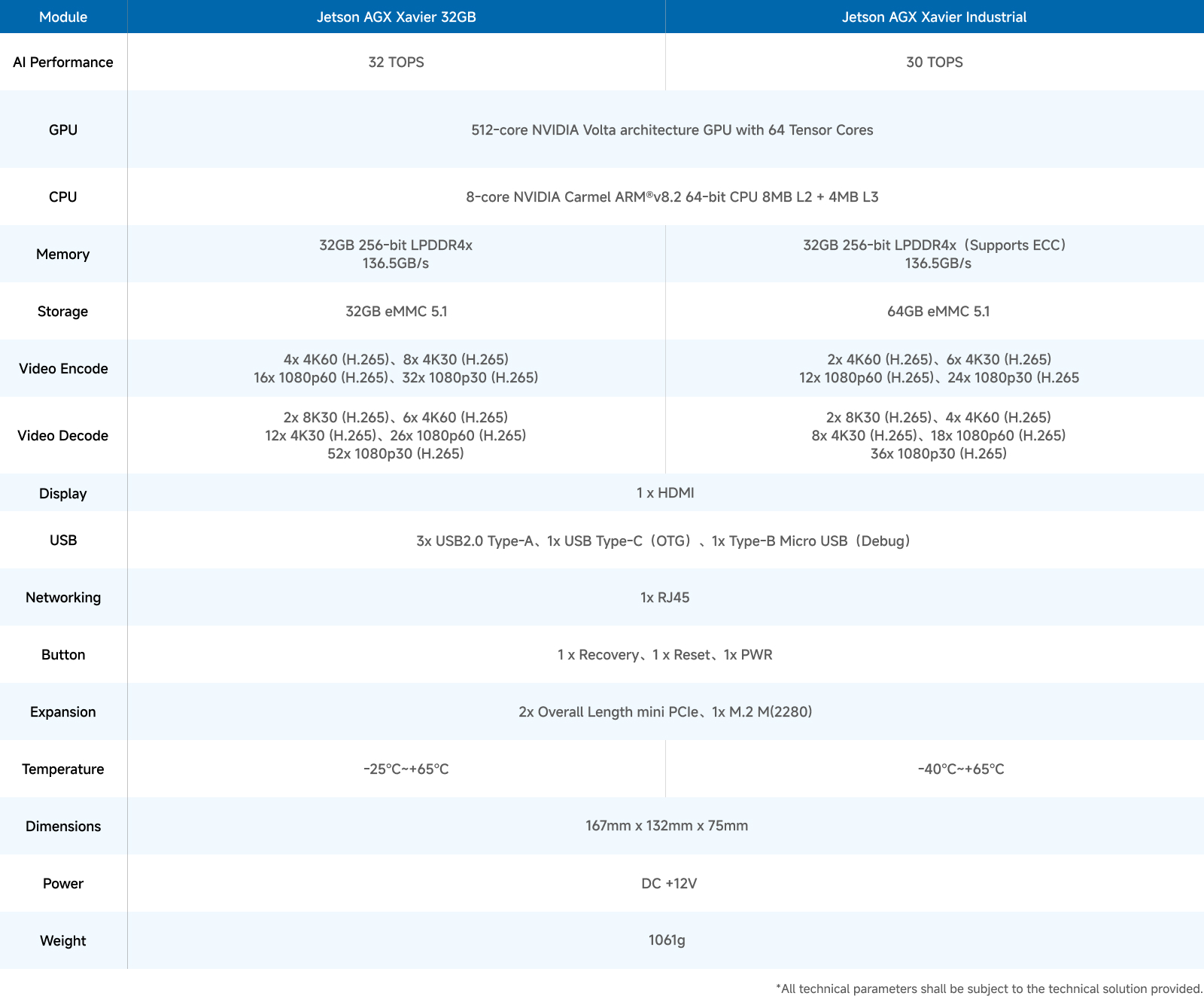

Jetson AGX Xavier Industrial
|
Jetson AGX Xavier 32GB
|
|
AI Performance
|
30 TOPS
|
32 TOPS
|
|
GPU
|
512-core NVIDIA Volta architecture GPU with 64 Tensor Cores
|
|
|
CPU
|
8-core NVIDIA Carmel Arm®v8.2 64-bit CPU
8MB L2 + 4MB L3 |
|
|
Memory
|
32GB 256-bit LPDDR4x (ECC support)
136.5GB/s |
32GB 256-bit LPDDR4x
136.5GB/s |
|
Storage
|
64GB eMMC 5.1
|
32GB eMMC 5.1
|
|
Video Encode
|
2x 4K60 (H.265)
6x 4K30 (H.265) 12x 1080p60 (H.265) 24x 1080p30 (H.265) |
4x 4K60 (H.265)
8x 4K30 (H.265) 16x 1080p60 (H.265) 32x 1080p30 (H.265) |
|
Video Decode
|
2x 8K30 (H.265)
4x 4K60 (H.265) 8x 4K30 (H.265) 18x 1080p60 (H.265) 36x 1080p30 (H.265) |
2x 8K30 (H.265)
6x 4K60 (H.265) 12x 4K30 (H.265) 26x 1080p60 (H.265) 52x 1080p30 (H.265) |
|
CSI Camera
|
Up to 6 cameras
(36 via virtual channels) 16 lanes MIPI CSI-2 D-PHY 1.2 (up to 40 Gbps) C-PHY 1.1 (up to 62 Gbps) |
Up to 6 cameras
(36 via virtual channels) 16 lanes MIPI CSI-2 | 8 lanes SLVS-EC D-PHY 1.2 (up to 40 Gbps) C-PHY 1.1 (up to 62 Gbps) |
|
PCIe*
|
1 x8 + 1 x4 + 1 x2 + 2 x1
(PCIe Gen4, Root Port & Endpoint) |
|
|
USB*
|
3x USB 3.2 Gen2 (10 Gbps)
4x USB 2.0 |
|
|
Display
|
3 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
|
|
|
Other I/O
|
5x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, PWM, DMIC, GPIOs
|
|
|
Power
|
20W - 40W
|
10W - 30W
|
