Jetson AGX Orin Developer Kit

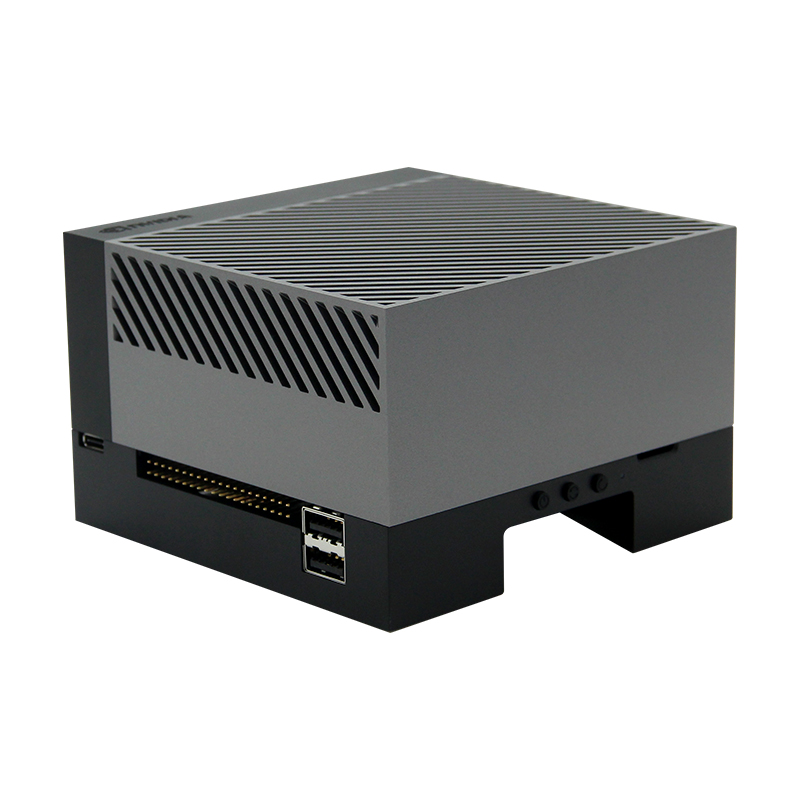

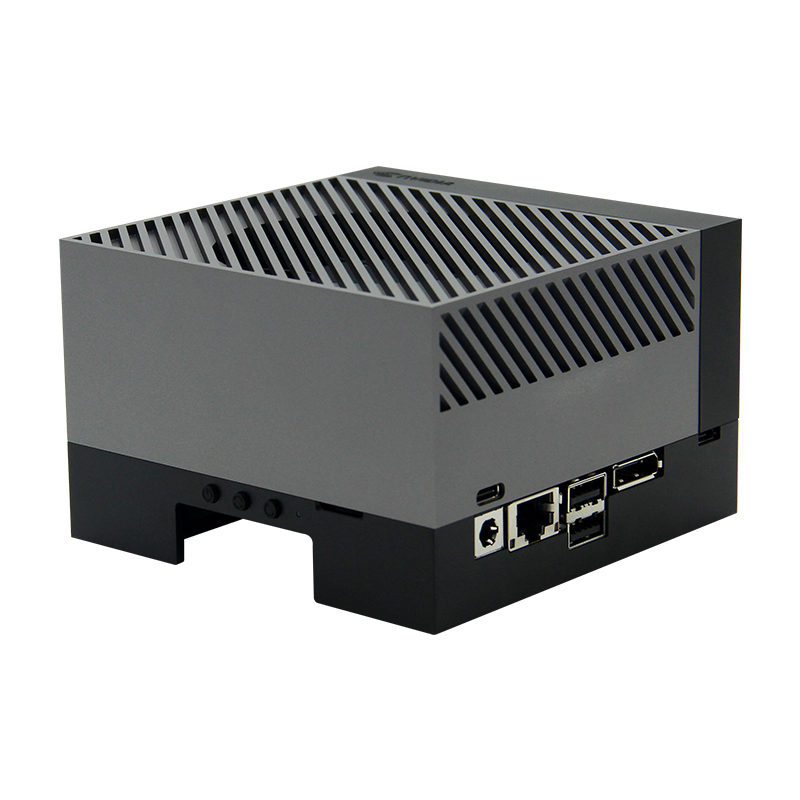

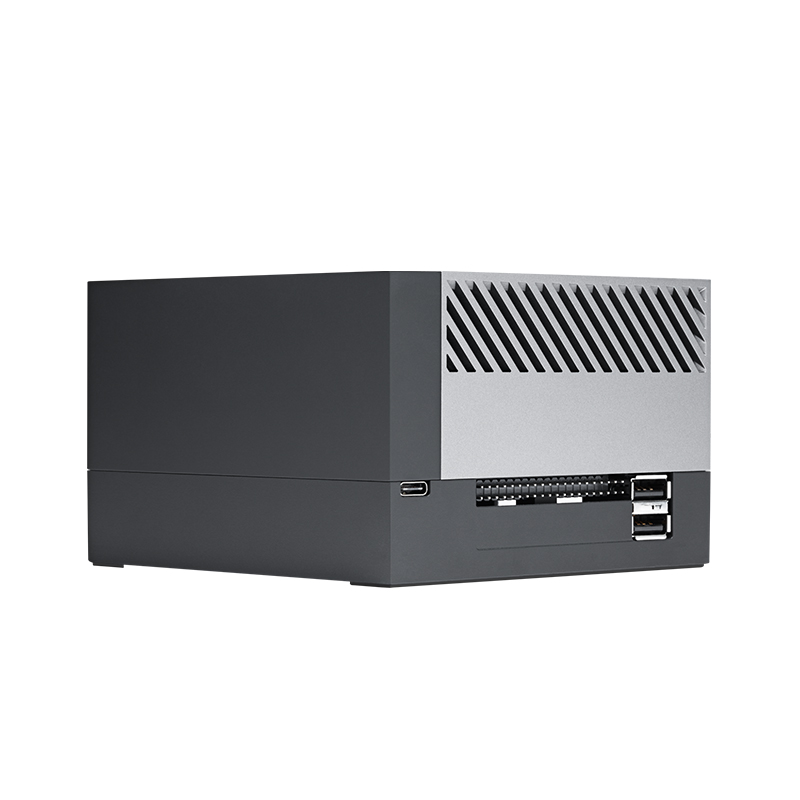

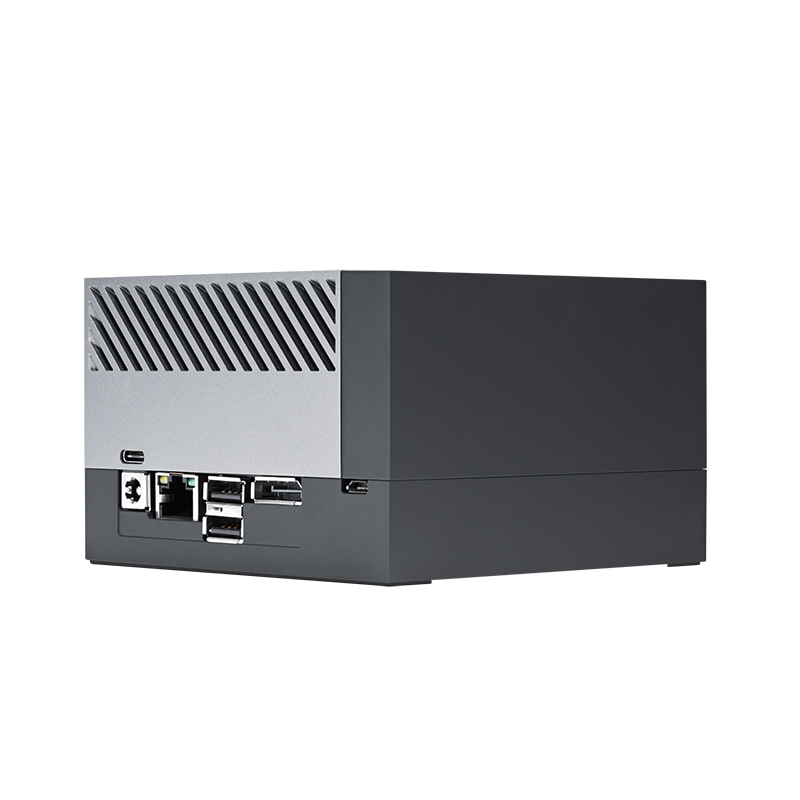

NVIDIA Jetson AGX Orin Developer Kit.
This kit contains a high-performance, energy-efficient Jetson AGX Orin module that can emulate other Jetson Orin modules.
With up to 275 TOPS of computing power running on the NVIDIA AI software stack, this developer kit enables the creation of adva

Jetson AGX Orin Developer Kit Specifications

JETSON AGX ORIN MODULE

AI Performance	275 TOPs
GPU	NVIDIA Ampere architecture with 2048 NVIDIA^® CUDA^® cores and 64 tensor cores
CPU	12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
DL Accelerator	2x NVDLA v2.0
Vision Accelerator	PVA v2.0
Memory	64GB 256-bit LPDDR5 204.8 GB/s
Storage	64GB eMMC 5.1
Video Encode	2x 4K60 \| 4x 4K30 \| 8x 1080p60 \| 16x 1080p30 (H.265)
Video Decode	1x 8K30 \| 3x 4K60 \| 7x 4K30 \| 11x 1080p60 \| 22x 1080p30 (H.265)

Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features

REFERENCE CARRIER BOARD

Camera	16 lane MIPI CSI-2 connector
PCIe	x16 PCIe slot: Lower x8 PCIe Gen4
RJ45	Up to 10 GbE
M.2 Key M	x4 PCIe Gen 4
M.2 Key E	x1 PCIe Gen 4, USB 2.0, UART, I2S
USB Type-C	2x USB 3.2 Gen2 with USB-PD support
USB Type-A	2x USB 3.2 Gen2 2x USB 3.2 Gen1
USB Micro-B	USB 2.0
DisplayPort	DisplayPort 1.4a (+MST)
MicroSD slot	UHS-1 cards up to SDR104 mode
Other	40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC) 12-pin automation header 10-pin audio panel header 10-pin JTAG header 4-pin fan header 2-pin RTC battery backup connector DC power jack Power, Force Recovery, and Reset buttons
Dimensions	110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution)

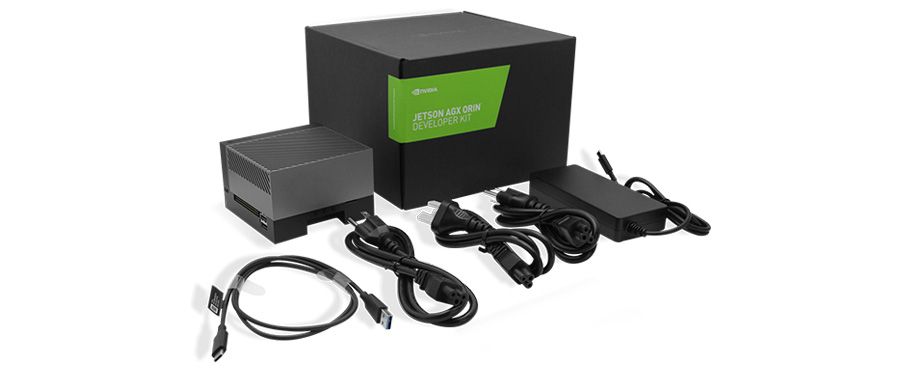

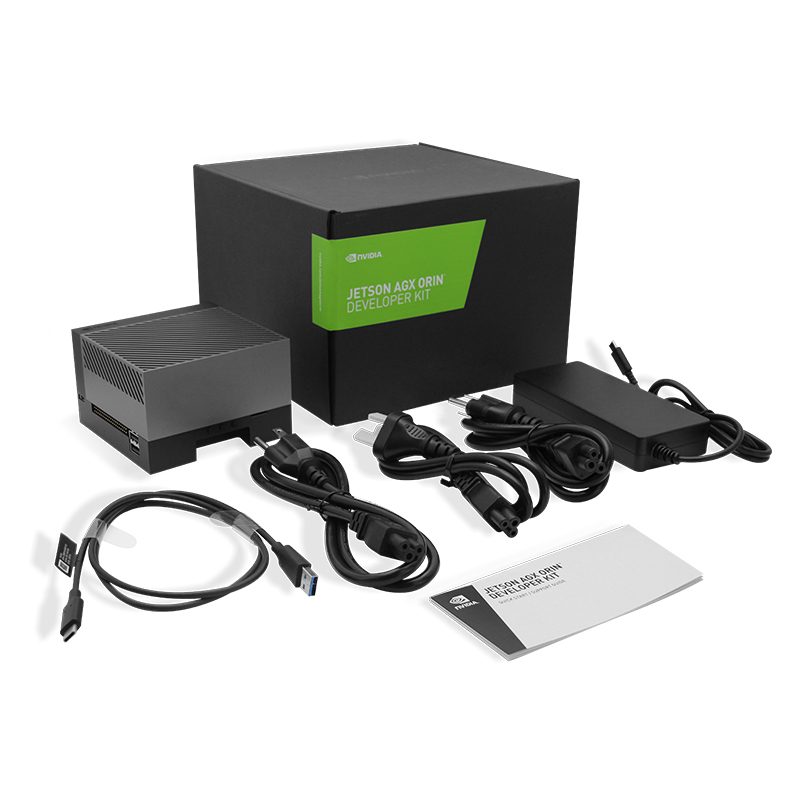

PACKING LIST

1、Packing Box (including Product manual)

2、Jetson AGX Orin

3、The Power Adaptor

4、The Power Cord (including CE GS/CS BS/FCC UL

5、Type-C to USB interface cable

PREVIOUS：Jetson Xavier NX Carrier Board Y-C7NEXT：Y-C6-DEV Development System
