Atlas IPC 200I-DEV

● Based on Ascend Atlas 200I A2
● 8 TOPS INT8, 4GB LPDDR4X, ECC supported
● 3x USB, 2x RJ45, 2x HDMI
● 1x Micro SD, 1x M.2 Key M(1x NVMe SSD)

Introduction

The 200I-DEV is an embedded edge AI computing device based on the Ascend Atlas 200I DK A2 Developer Kit, delivering 8 TOPS INT8 AI compute and meeting the demands of various fields such as video and image analysis, natural language processing, and robotics.


Specifications

Processor
 Ascend Atlas 200I A2

AI Compute

8 TOPS INT8, 4 TFLOPS FP16

Memory

4GB LPDDR4X, ECC supported

CPU

4core x 1.0GHz

Encode/Decode

Video Decode:  20x 1080P 30FPS, 2x 4K (3840 x 2160) 75FPS H.264 / H.265
Video Encode: 12x 1080P 30FPS, 2x 4K (3840 x 2160) 50FPS H.264 / H.265
JPEG Decode: 1080P 512FPS, JPEG Encode: 1080P 256FPS, max. resolution:16384 x 16384

I/O

2x MIPI-CSI 51-pin, capable of camera module

1x MIPI-DSI 51-pin
2x RJ45 100/1000M Mbit/s
2x HDMI
2x USB 3.0 Type-A, compatible with USB 2.0
1x USB 3.0 Type-C
1x 40-pin

Storage Expansion

1x Micro SD
1x M.2 Key M (1x NVMe SSD)

Power

24W

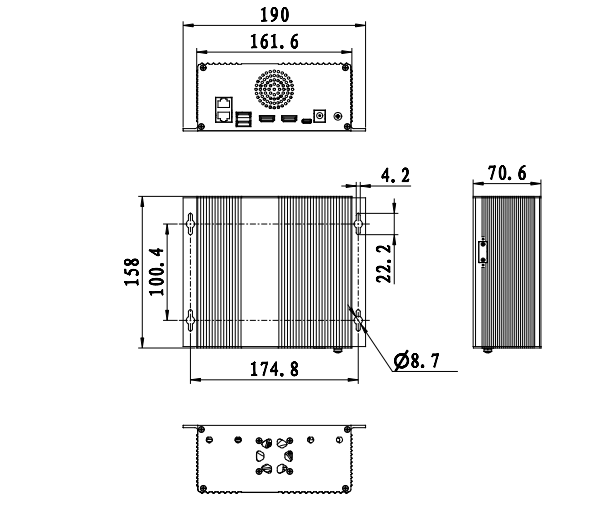

Dimensions

190mm*158mm*70.6mm

Weight

881g


Dimensions
