GPU Server

Leadtek Station W830

Middle-end Workstation
NVIDIA Data Science certified Workstation
Ideal for AI/Deep Learning/3D rendering

Specifications

Processor

CPU	Single Socket R4 (LGA 2066) supports Intel® Xeon® W-2200 processor Intel® Xeon® W-2100 processor

System Memory

Memory Capacity	8 DIMM slots Up to 512GB reg. ECC LRDIMM,up to DDR4-2666MHz
Memory Type	2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices

Chipset	Intel® C422 chipset
SATA	SATA3 (6Gbps) via Intel C422 controller, RAID 0, 1, 5, 10 support
Network Controllers	Single LAN with Intel® PHY I219LM LAN controller Single LAN with Aquantia 5G LAN chip AQC108

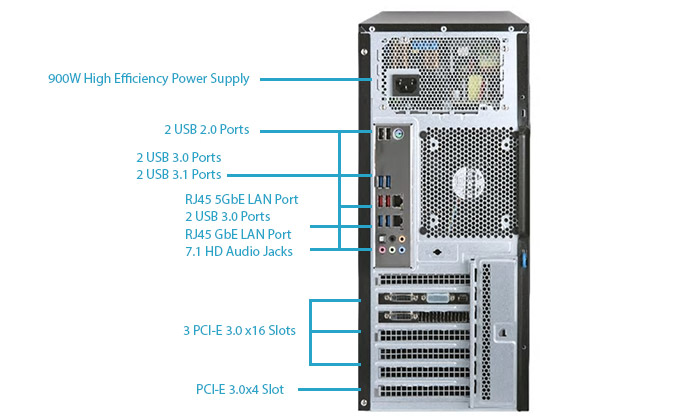

Input / Output

SATA	6 SATA3 (6Gbps) ports from Intel® C422
LAN	2 RJ45 Ethernet LAN ports
USB	6 USB 3.0 ports (4 rear + 2 headers) 6 USB 2.0 ports (2 rear + 4 headers) 2 USB 3.1 (2 Type A)
Audio	7.1 HD Jacks

Form Factor

Mid-Tower

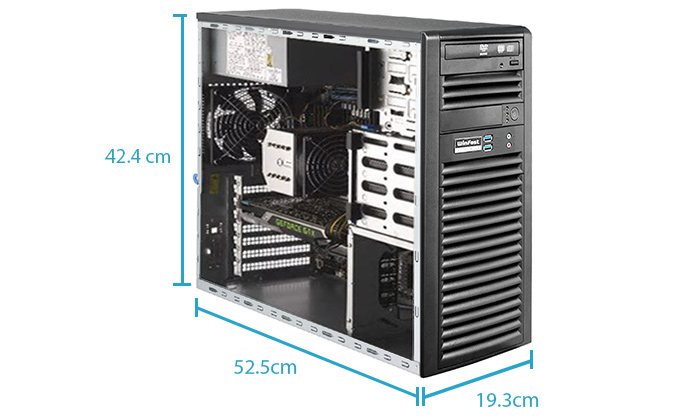

Dimensions and Weight

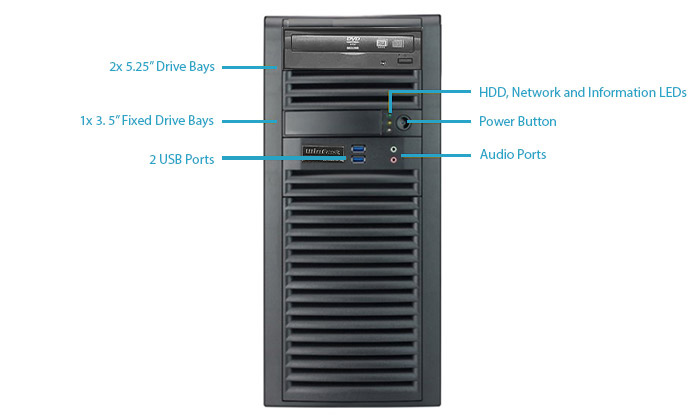

Drive Bays / Storage

Expansion Slots

PCI-Express

System Cooling

Fans	1x 12cm rear exhaust fan 1x 12cm front cooling fan

Power Supply

900W High Efficiency AC multi output power supply, Gold Level
AC Voltage	900W AC multi output power supply 100-240 V, 50-60 Hz, 10-6 Amp

OS Compatibility

Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
