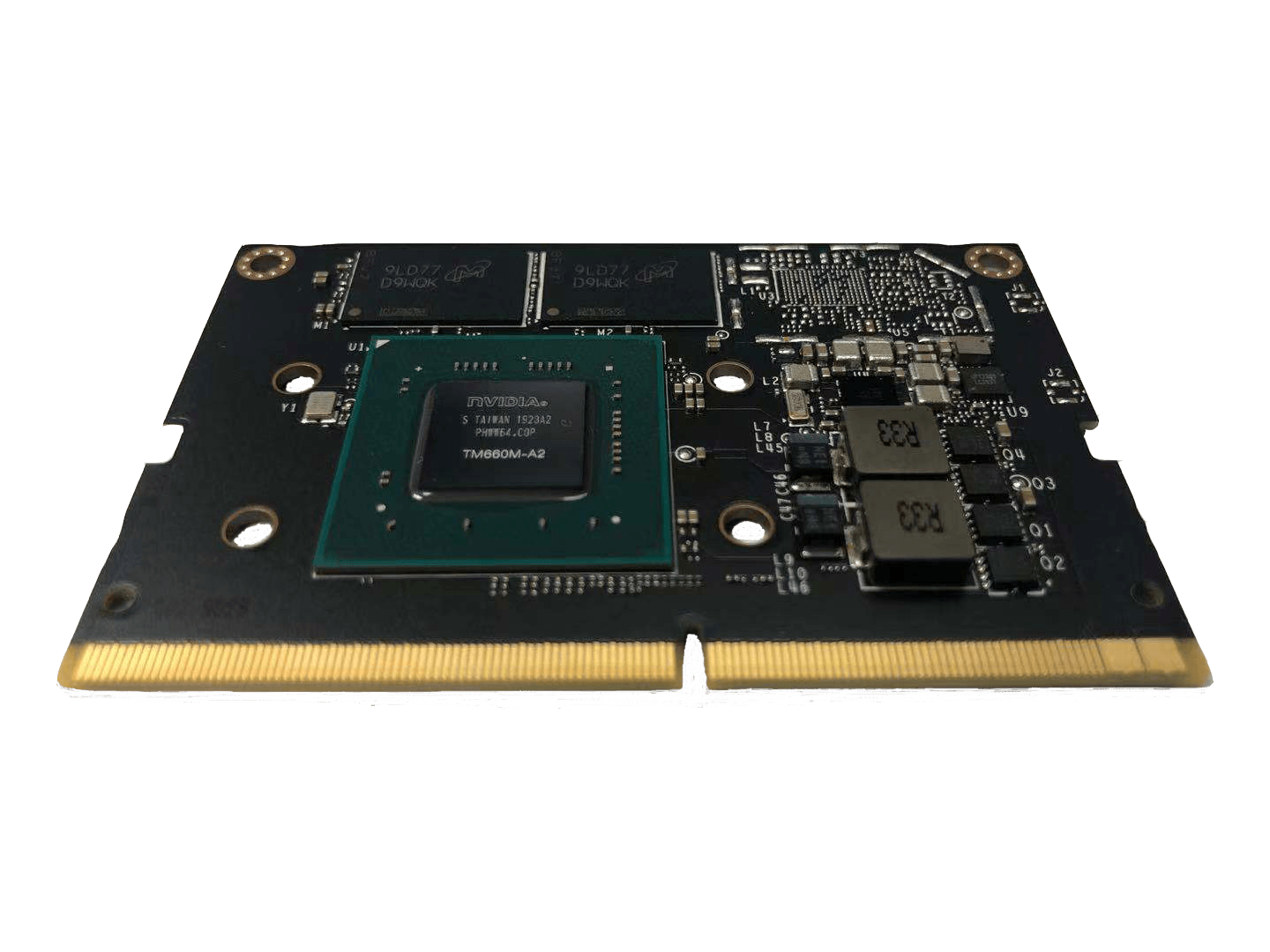

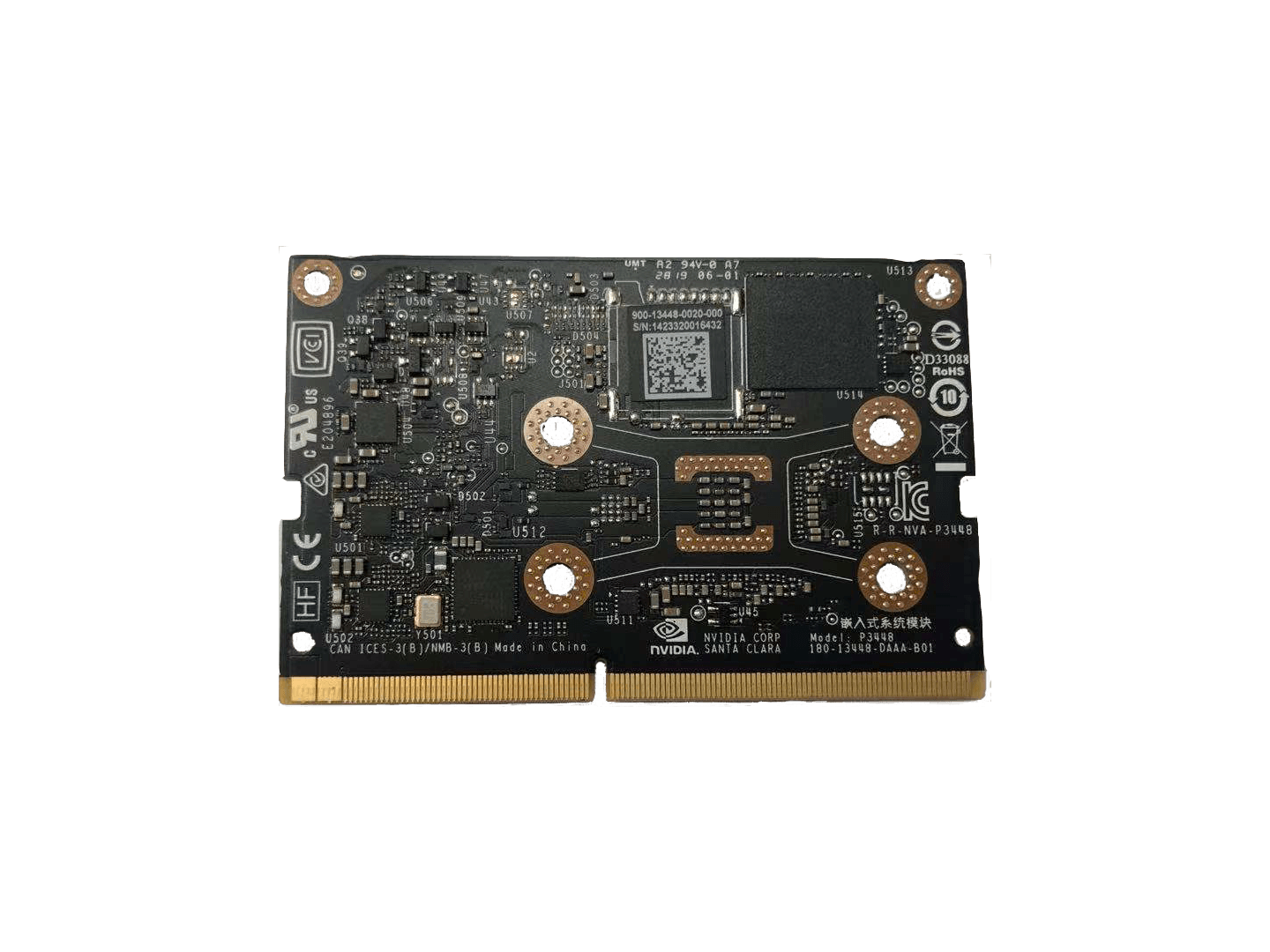

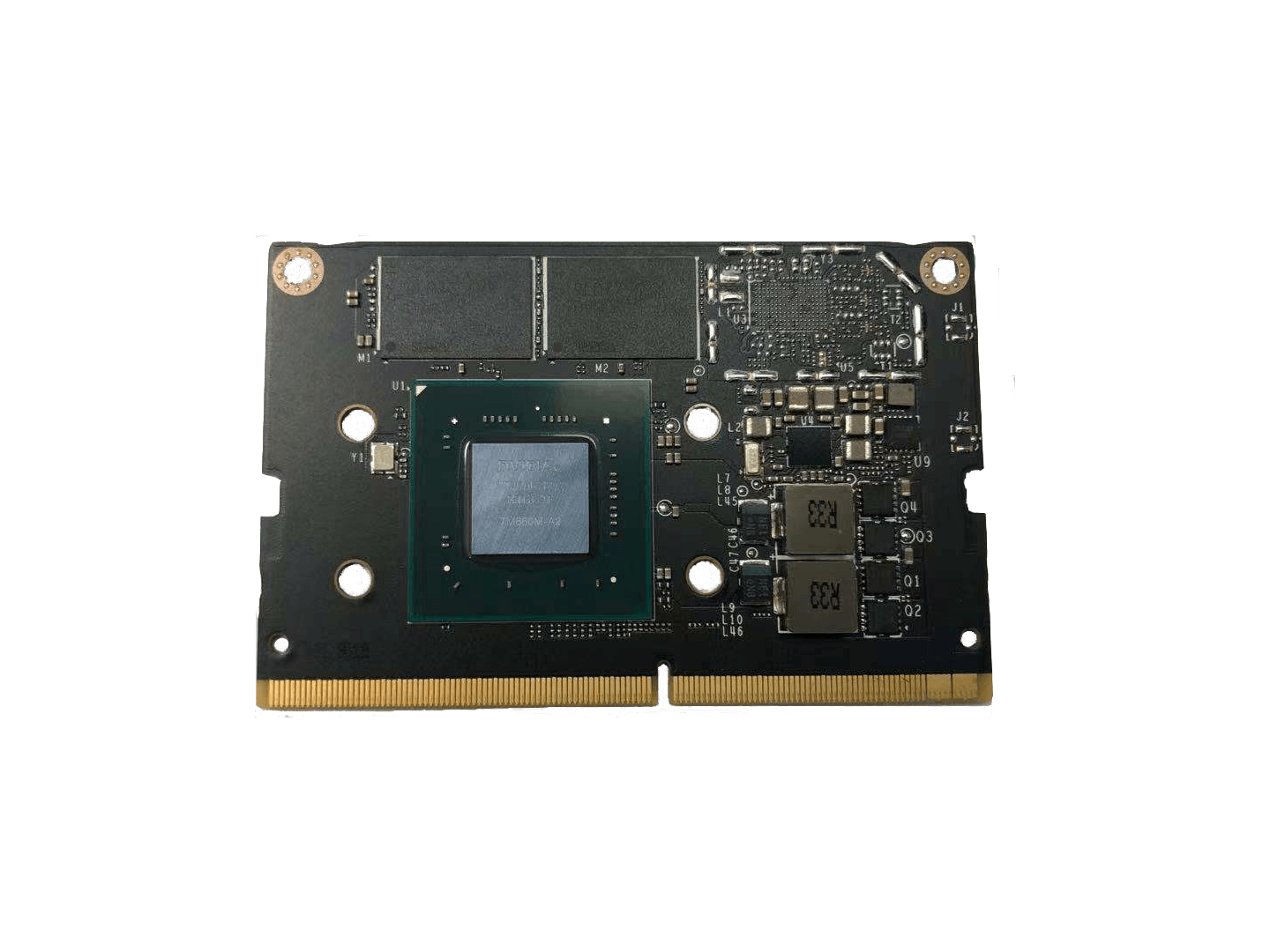

Jetson Nano Module

Jetson Nano is a powerful little computer designed to support entry-level edge AI applications and devices.
The comprehensive NVIDIA JetPack™ SDK includes accelerated libraries for deep learning, computer vision, graphics, multimedia, and more to get you started quickly.
Start prototypi


A NEW DIMENSION IN AI

At just 70 x 45 mm, the Jetson Nano module is smaller than a credit card. But this production-ready System on Module (SOM) delivers big when it comes to deploying AI to devices at the edge across multiple industries—from smart cities and factories to agriculture and robotics.


BIG COMPUTE PERFORMANCE

Jetson Nano delivers 472 GFLOPs for taking on modern AI algorithms. It runs multiple neural networks in parallel and processes several high-resolution sensors simultaneously, making it ideal for applications ranging from NVRs to intelligent gateways.


LOW POWER DEMANDS

Now, you can innovate at the edge with powerful and efficient AI, computer vision, and high-performance computing at just 5 to 10 watts.


Jetson Nano Technical Specifications

GPU
NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores
0.5 TFLOPs (FP16)
CPU
Quad-core ARM® Cortex®-A57 MPCore processor
Memory
4 GB 64-bit LPDDR4
1600MHz - 25.6 GB/s
Storage
16 GB eMMC 5.1 Flash
Video Encoder
4Kp30 | 4x 1080p30 | 9x 720p30 (H.264/H.265)
Video Decoder
4Kp60 | 2x 4Kp30 | 8x 1080p30 | 18x 720p30 (H.264/H.265)
Camera
12 lanes (3x4 or 4x2) MIPI CSI-2 D-PHY 1.1 (18 Gbps)
Connectivity
Wi-Fi requires external chip
10/100/1000 BASE-T Ethernet
Display
HDMI 2.0 or DP1.2 | eDP 1.4 | DSI (1 x2) 2 simultaneous
UPYH
1 x1/2/4 PCIE, 1x USB 3.0, 3x USB 2.0
I/O
3x UART, 2x SPI, 2x I2S, 4x I2C, GPIOs
Size
69.6 mm x 45 mm
Mechanical
260-pin edge connector
