NVIDIA Jetson Developer kits

  • Jetson AGX Xavier Developer Kit
  • Jetson AGX Xavier Developer Kit
  • Jetson AGX Xavier Developer Kit
  • Jetson AGX Xavier Developer Kit
  • Jetson AGX Xavier Developer Kit
Jetson AGX Xavier Developer KitJetson AGX Xavier Developer KitJetson AGX Xavier Developer KitJetson AGX Xavier Developer KitJetson AGX Xavier Developer Kit

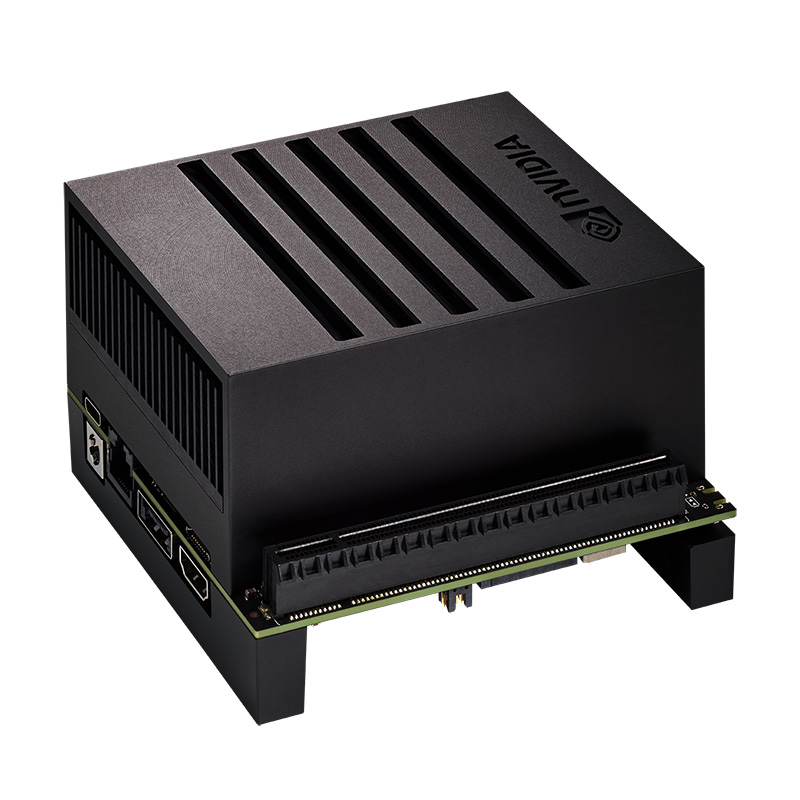

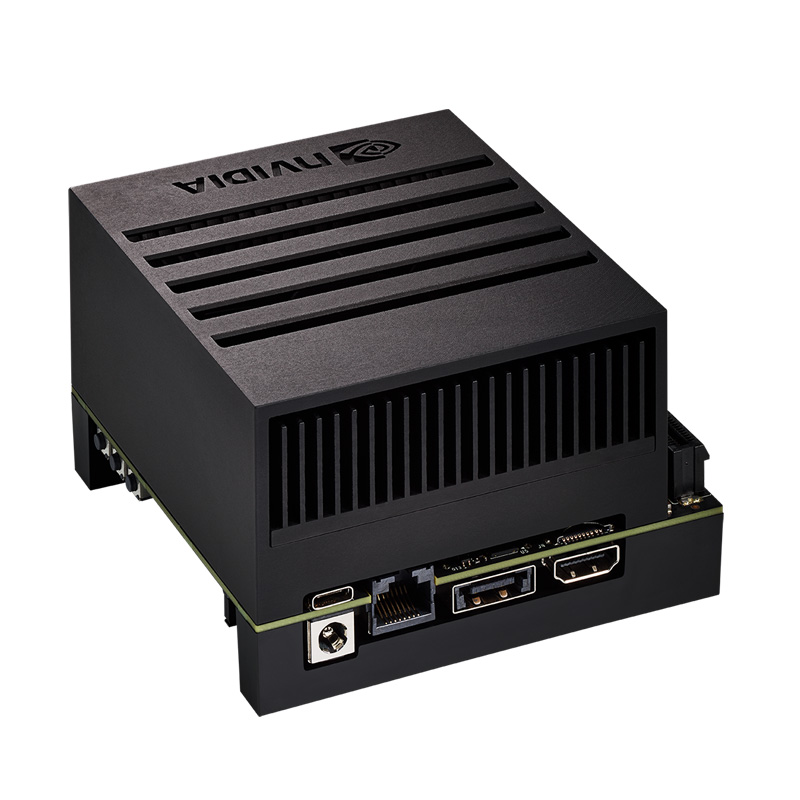

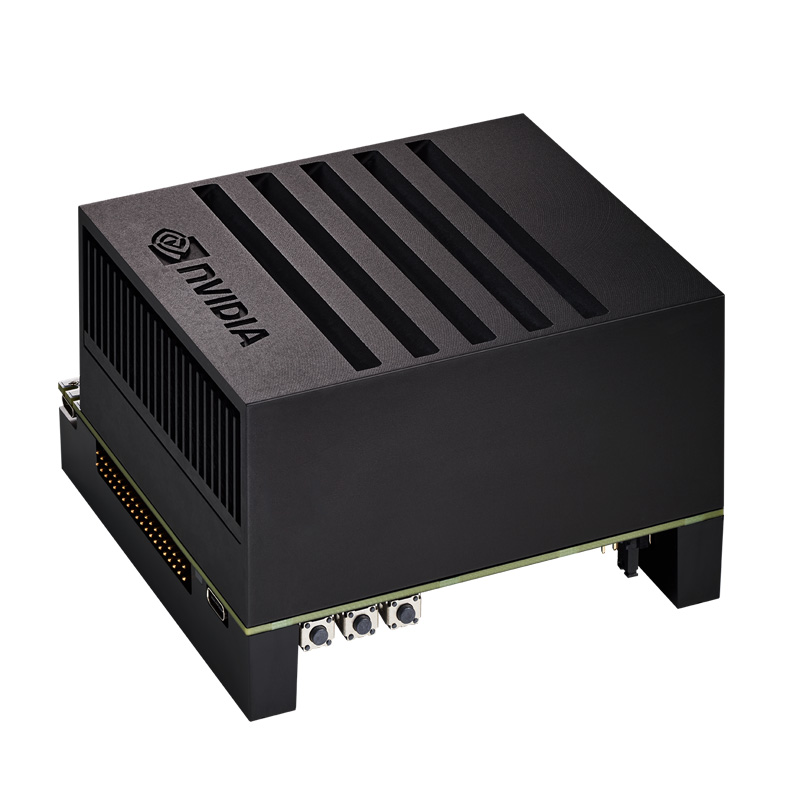

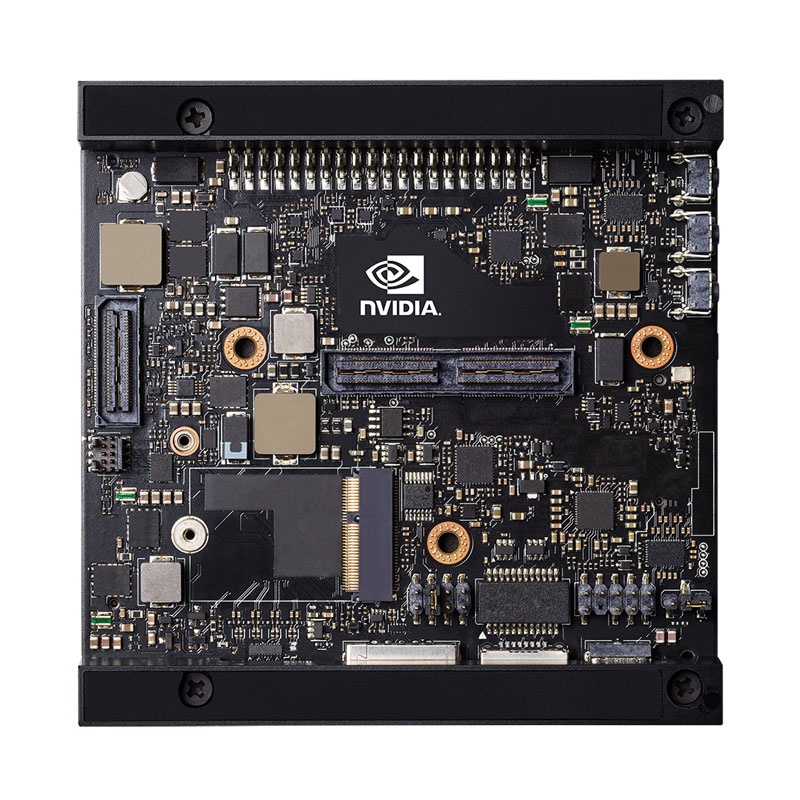

Jetson AGX Xavier Developer Kit

32GB eMMC 5.1
32GB 256-bit LPDDR4x | 137GB/s
105mm x 105mm x 65mm

The NVIDIA Jetson AGX Xavier Developer Kit lets you easily create end-to-end AI robotics applications for manufacturing, delivery, retail, smart cities, and more. The developer kit is supported by NVIDIA JetPack and DeepStream SDKs, as well as CUDA®, cuDNN, and TensorRT software libraries, giving you all the tools you need to get started right away. And because it’s powered by the NVIDIA Xavier processor, you now have more than 20X the performance and 10X the energy efficiency of its predecessor, NVIDIA Jetson TX2. Get started today with the Jetson AGX Xavier Developer Kit.

GPU 512-Core Volta GPU with Tensor Cores
CPU 8-Core ARM v8.2 64-Bit CPU, 8 MB L2 + 4 MB L3
Memory 32 GB 256-Bit LPDDR4x | 137 GB/s
Storage 32 GB eMMC 5.1
DL Accelerator (2x) NVDLA Engines*
Vision Accelerator 7-Way VLIW Vision Processor*
Encoder/Decoder (2x) 4Kp60 | HEVC/(2x) 4Kp60 | 12-Bit Support
Size 105mm x 105mm

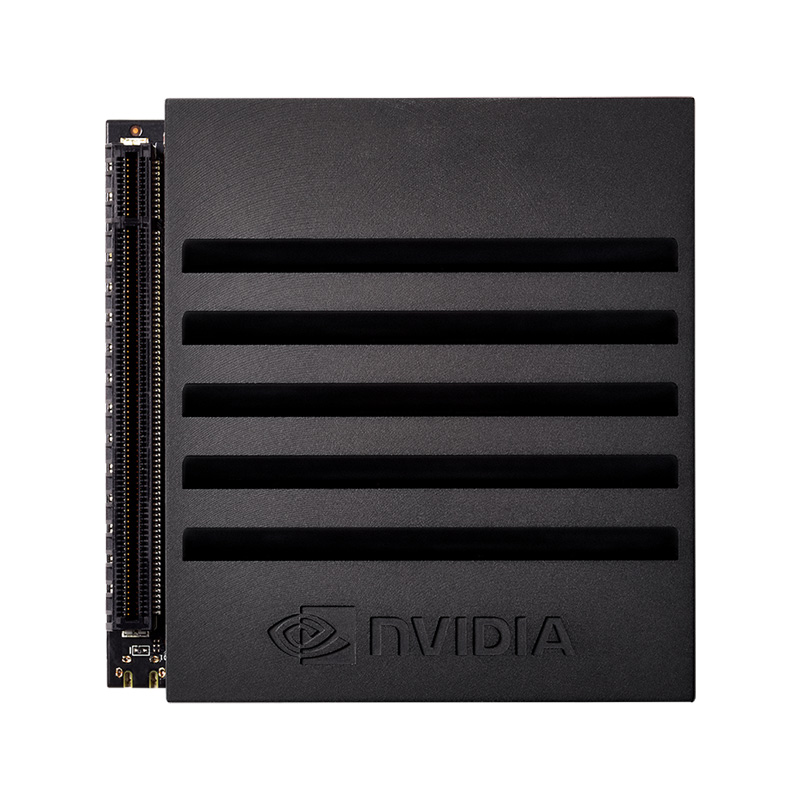

Deployment Module (Jetson Xavier)
Product Weight w/ Packaging 1548g
Package Dimension 223(L) x 209(W) x 134(H)mm
DEVELOPER KIT I/Os JETSON XAVIER MODULE INTERFACE
PCIe x16 x8 PCIe Gen4/x8 SLVS-EC
RJ45 Gigabit Ethernet
USB-C 2x USB 3.1, DP (Optional), PD (Optional)
USB-C Close-System Debug and Flashing Support on 1 Port
Camera Connector (16x) CSI-2 Lanes
M.2 Key M NVMe
M.2 Key E PCIe x1 + USB 2.0 + UART (for WiFi/LTE)/I2S/PCM
40-Pin Header UART + SPI + CAN + I2C + I2S + DMIC + GPIOs
HD Audio Header High-Definition Audio
eSATAp + USB3.0 Type A SATA Through PCIe x1 Bridge (PD + Data for 2.5 inch SATA) + USB 3.0
HDMI Type A/eDP/DP HDMI 2.0, eDP 1.2a, DP 1.4
uSD/UFS Card Socket SD/UFS
*Please refer to NVIDIA documentation for what is currently supported.


Kit Contents
  • NVIDIA Jetson Xavier Development Kit
  • AC Power Adapter 65W
  • Power Cord
  • Cable type C USB to Type A
  • Dongle type C USB to type A
  • Quick Start Guide
  • Safety Booklet

*Please refer to NVIDIA documentation for what is currently supported.
