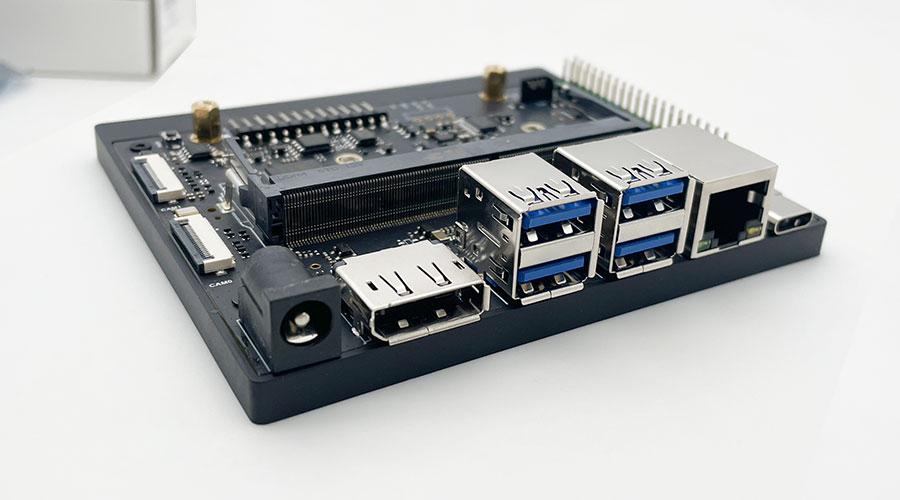

Jetson Orin NX/Orin Nano Carrier Board

Size: 104mm*90mm*23mm
Power: DC 9V~19V
Temperature: 0~+50°C
Weight: 81g

Orin NX/Orin Nano Carrier Board

Orin NX/Orin Nano domestic development board is based on NVIDIA Jetson Orin NX/Orin Nano core module design, providing M.2, HDMI, USB and other more rich interfaces.The NVIDIA Jetson Orin Nano core module is available in 4GB/8GB video memory versions.The NVIDIA Jetson Orin NX core module is available in 8GB/16GB video memory versions to provide AI performance up to 20 TOPS/40 TOPS/70 TOPS/100 TOPS for better product performance.

USB 3.2 Type-A
4

Type-C

1
RJ45 1
M.2 E key
1
M.2 M key
1

CSI camera

2x MIPI CSI-2

DisplayPort

1


Technical Specification of Nvidia Jetson Module


Jetson Orin NX 16GB
Jetson Orin NX 8GB
Jetson Orin Nano 8GB
Jetson Orin Nano 4GB
AI Performance
100 TOPS
70 TOPS
40 TOPS
20 TOPS
GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
CPU 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU2MB L2 + 4MB L3
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3
Memory 16GB 128-bit LPDDR5
102.4GB/s
8GB 128-bit LPDDR5
102.4GB/s
8GB 128-bit LPDDR5
68 GB/s
4GB 64-bit LPDDR5
34 GB/s

Storage

-
(Supports external NVMe)
Video Encode
1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)
12x 1080p30 (H.265)
1080p30 supported by 1-2 CPU cores

Video Decode

1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265)
1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)

CSI Camera

Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)
Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)

PCIe

1 x4 + 3 x1
(PCIe Gen4, Root Port, & Endpoint)
1 x4 + 3 x1
(PCIe Gen3, Root Port, & Endpoint)
USB 3x USB 3.2 Gen2 (10 Gbps)
3x USB 2.0
3x USB 3.2 Gen2 (10 Gbps)
3x USB 2.0

Networking

1x GbE
Display 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4**
Other I/O 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
PowerPower 10W - 25W
10W - 20W
7W - 15W
7W - 10W
Mechanical
69.6mm x 45mm
260-pin SO-DIMM connector
