The 17F1 is an onboard edge AI computing platform powered by NVIDIA® Jetson™ series modules, optimized for drone AI applications including power line inspection, precision agriculture and smart warehouse management.It offers scalable AI performance from 21 TOPS to 157 TOPS to match various workloads such as real-time image recognition, object detection and AI inference. With a compact design (96mm × 74mm × 47.3mm), it is fully compatible with DJI M300/M30/M350 series drones and DJI PSDK, supporting seamless integration with speakers, searchlights and professional payloads.
17F1

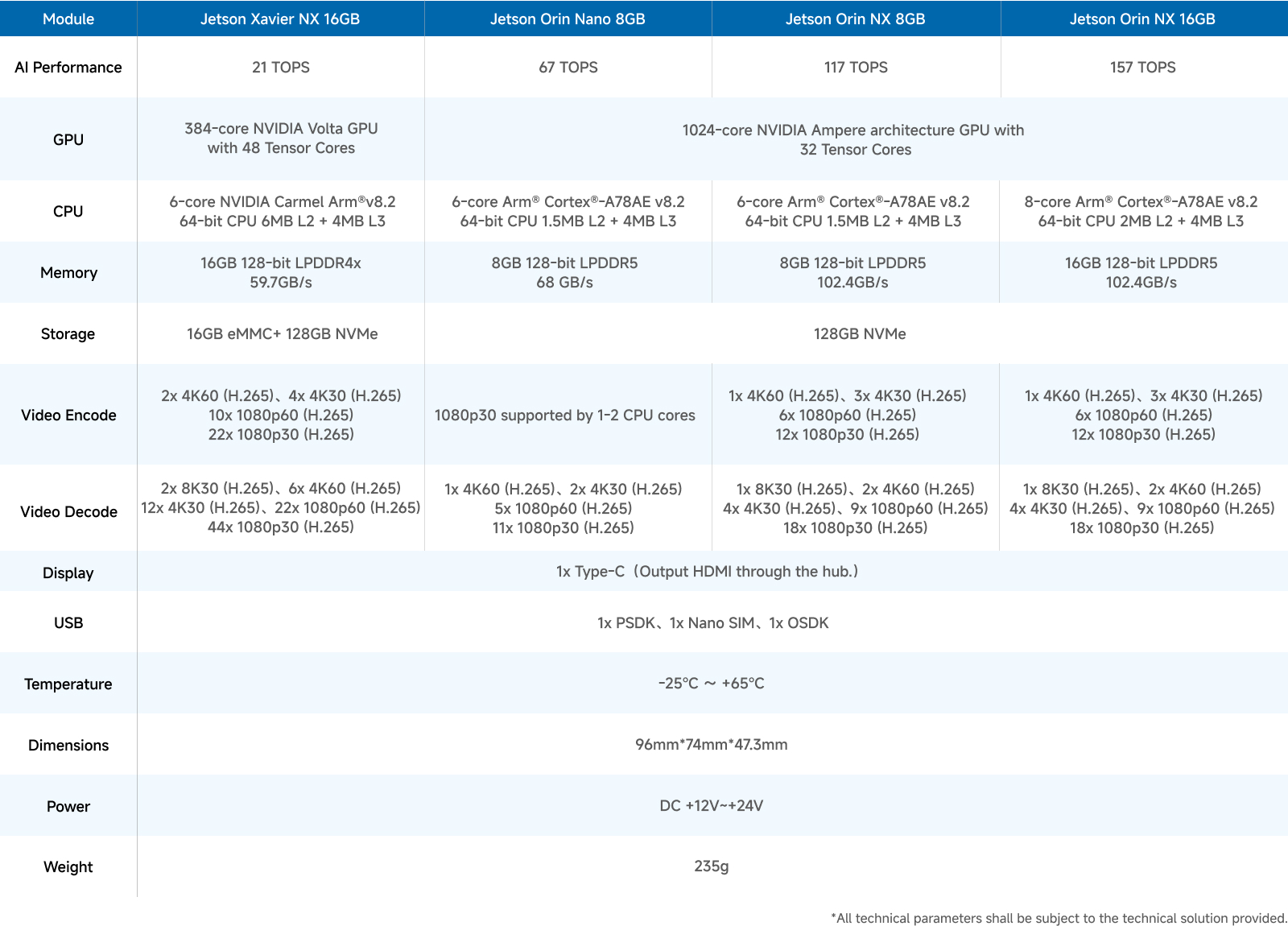

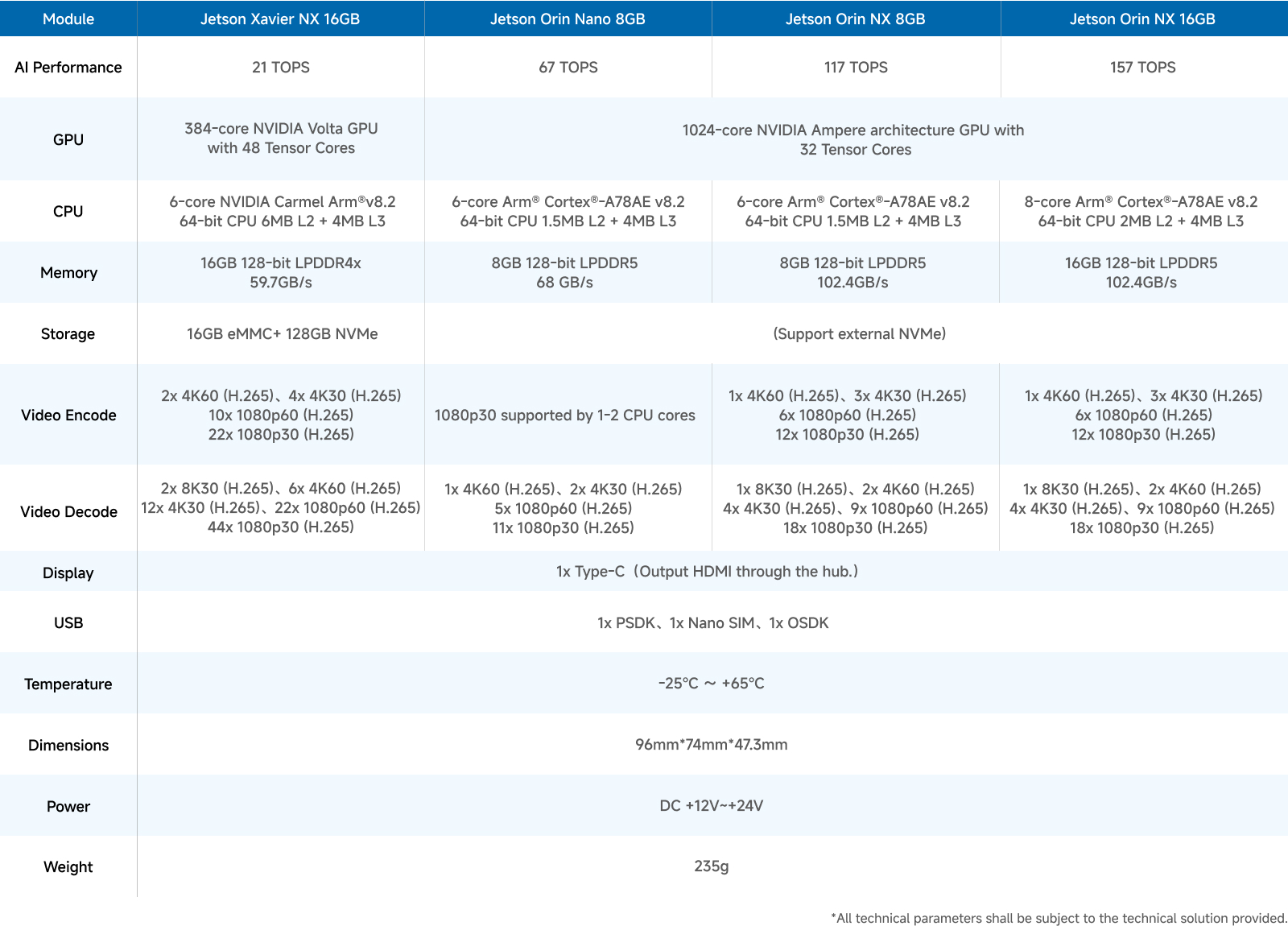

Jetson™ Orin NX: 157/117 TOPS, 16/8GB LPDDR5;
Jetson™ Orin Nano: 67 TOPS, 8GB LPDDR5;
Jetson™ Xavier NX: 21 TOPS, 16GB LPDDR4X

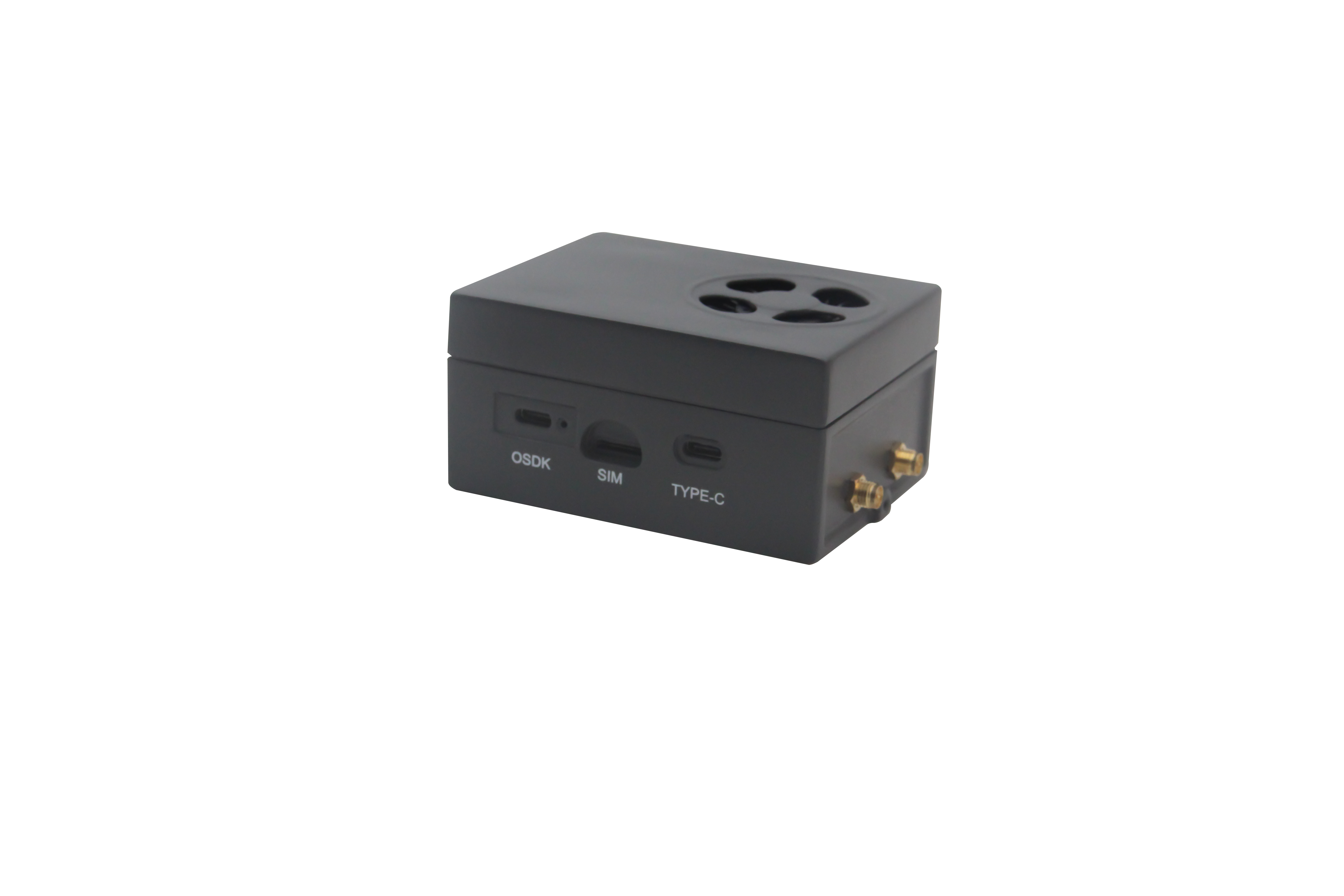

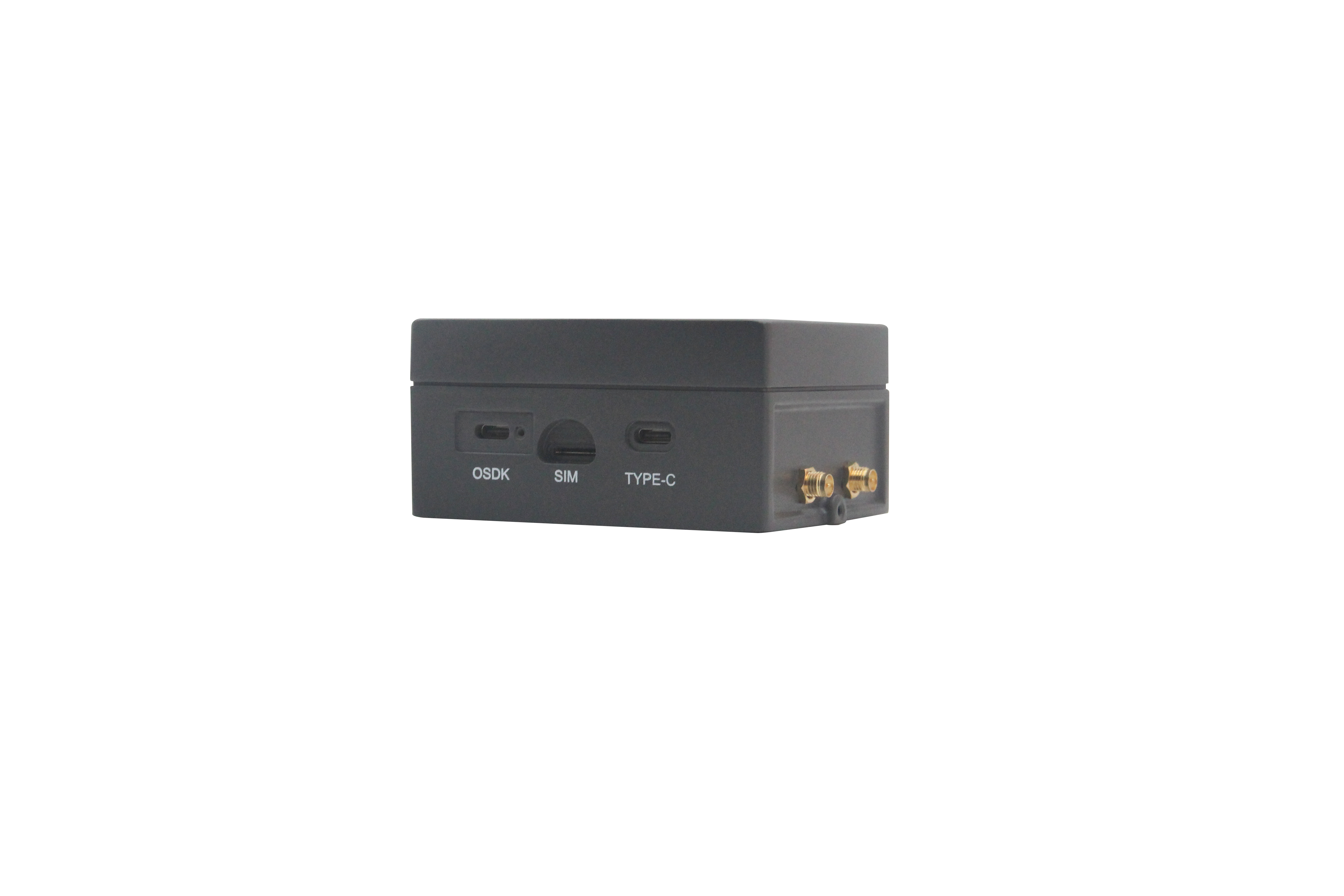

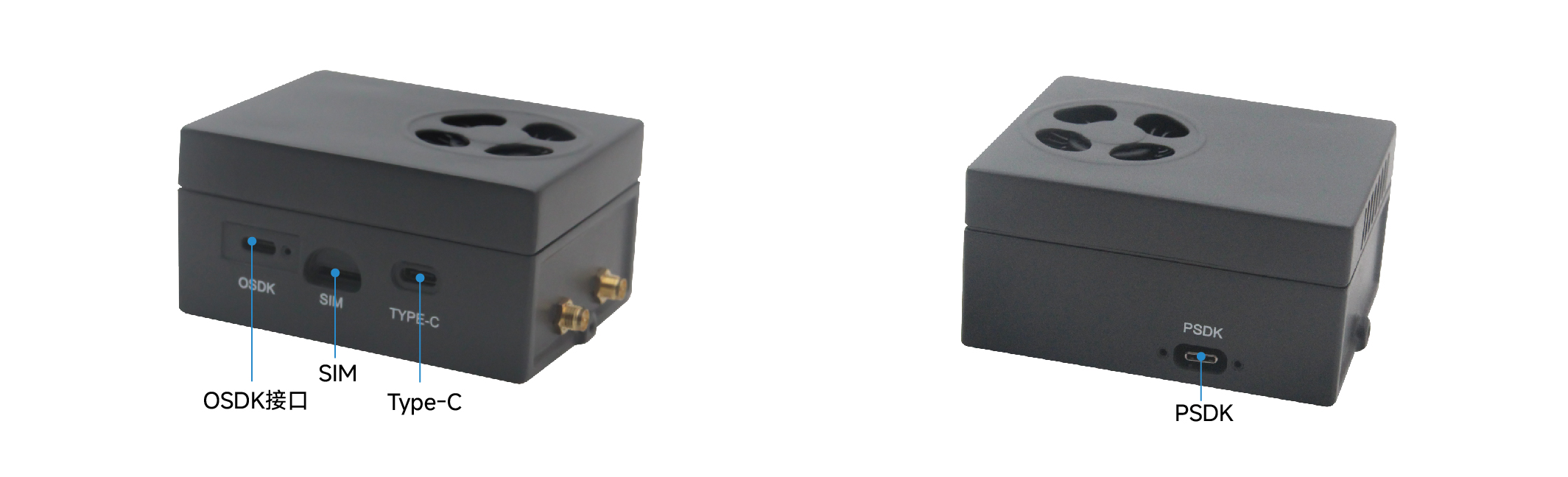

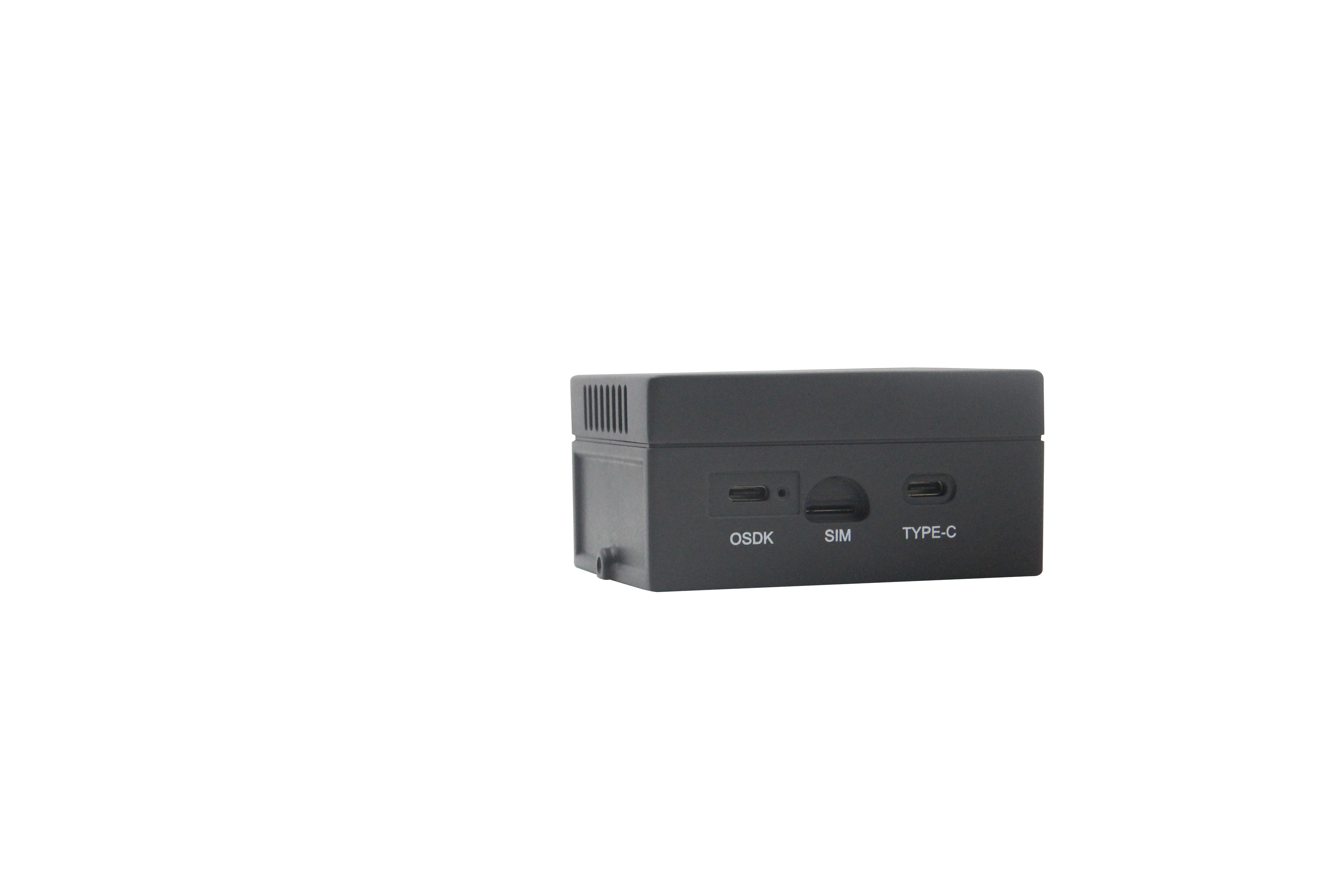

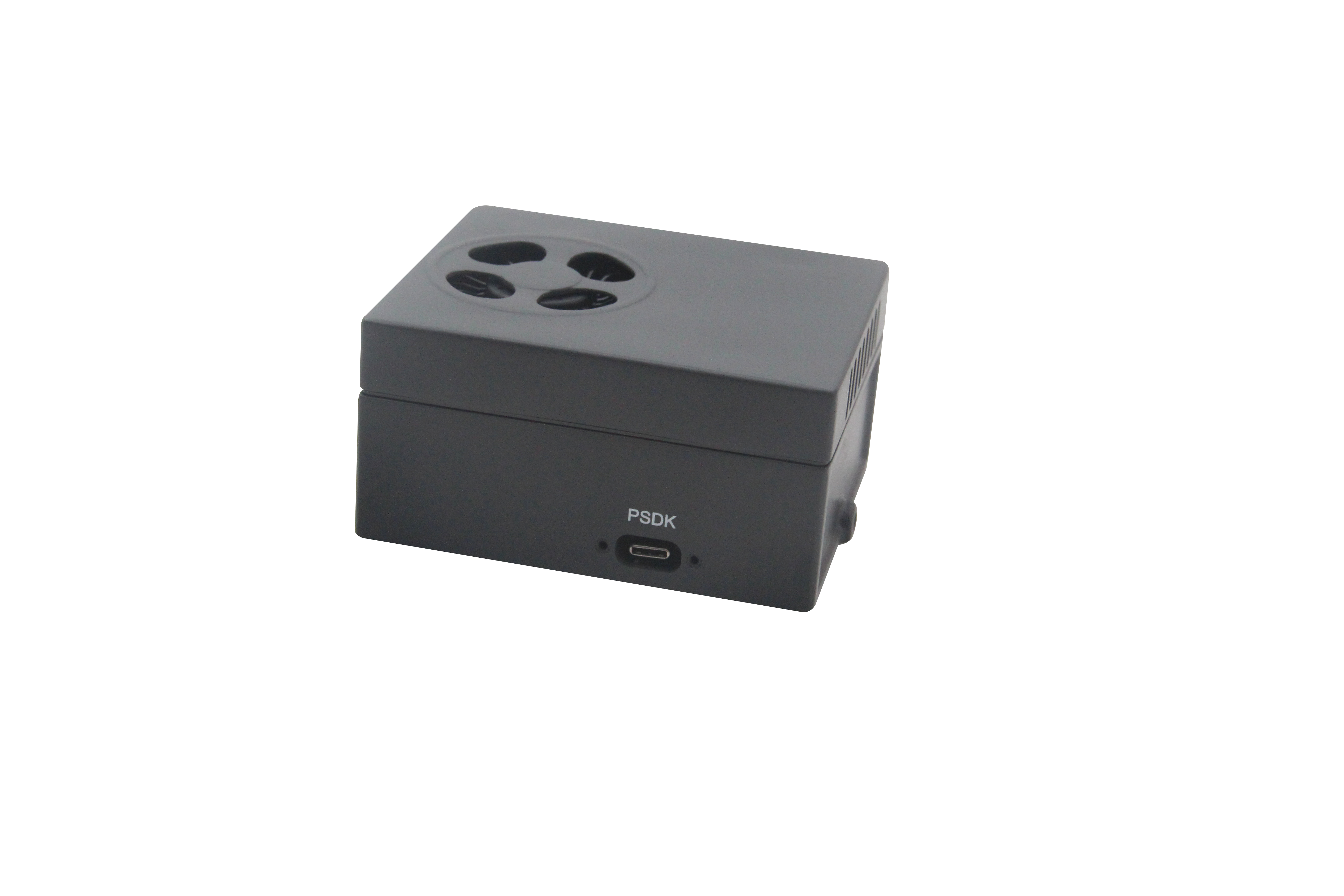

I/O Interface: 1 × Type-C,1 × PSDK, 1 × Nano SIM, 1 × OSDK
Type-C: USB2.0, USB3.0, DisplayPort signals
Built-in: Auto-dial 5G module; Wi-Fi optional
Ingress Protection: IP66
Dimensions: 96mm × 74mm × 47.3mm
Weight: 235g
Operating Temperature: -25℃ ~ +65℃
