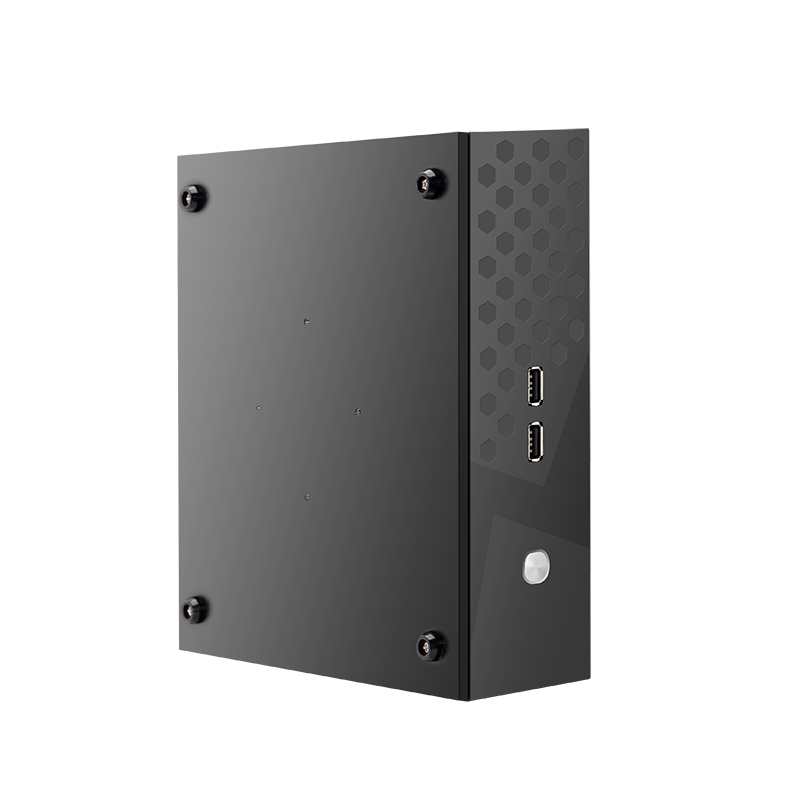

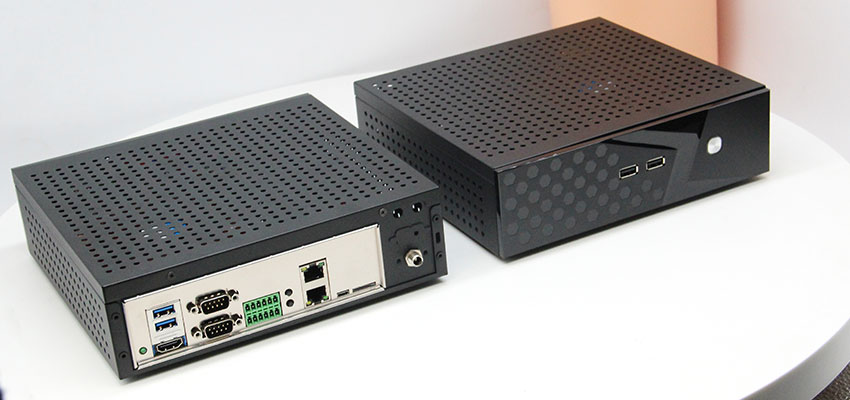

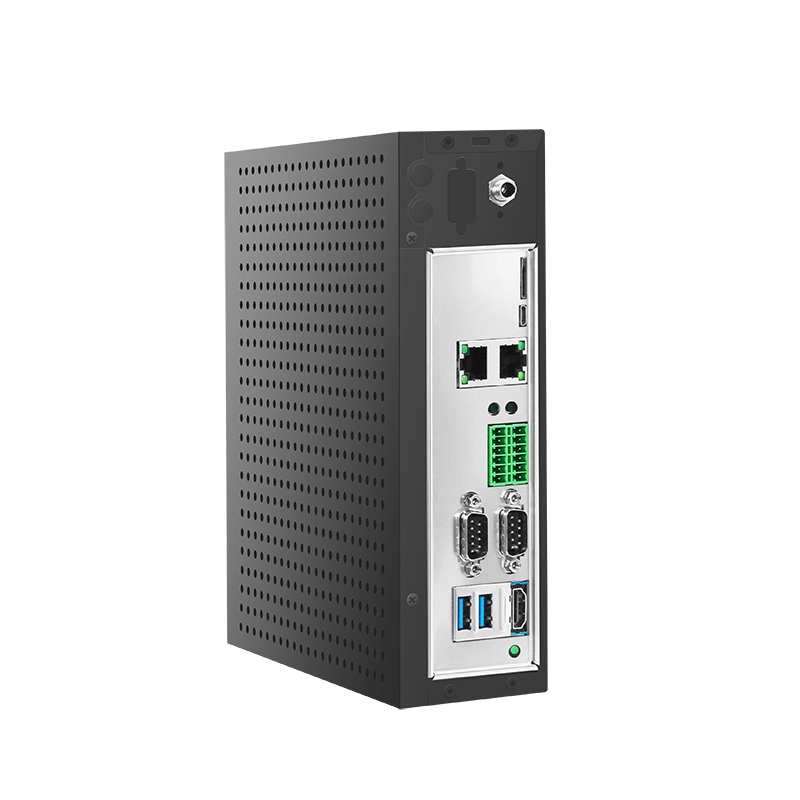

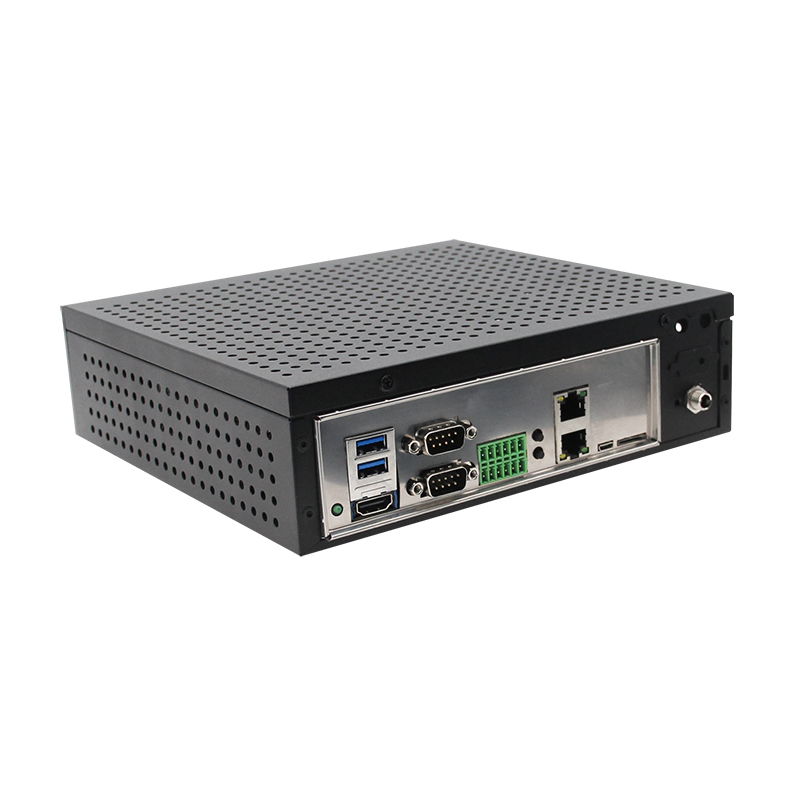

Jetson AGX Orin / AGX Xavier IPC 8F3E1

Input Power : DC +12V
Temperature Range : -20℃ to 65℃
Size : 210mm×200mm×60mm
Weight : 1485g

NVIDIA Jetson AGX Xavier/AGX Orin

Embedded Computer 8F3E1
8F3E1 for Jetson are compact edge computers built with NVIDIA advanced AI embedded systems


* NVIDIA Jetson Carrier Board:

Support NVIDIA Jetson AGX Orin/AGX Xavier Module

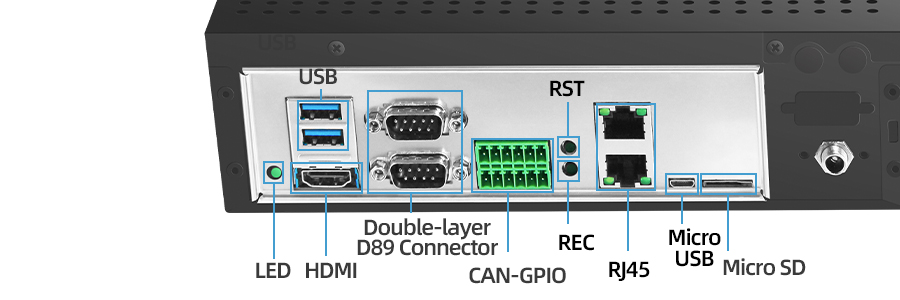

* Versatile Connectivity:
Offer 2x RJ45, 2x USB 3.0, 2x USB 2.0, 1x HDMI and 1x USB Micro B

* Advanced Peripherals Supported:
Assemble 1x fan, 1x RTC, 2x M.2 PCIe Key M connector, 1x 10 pin USB expansion connector, 2x MiniPCIE connector, 1x 120 pins CSI camera connector, 1x TF slot, 2x DB9 connector and 1x24 pin expansion header

* Input Power:DC +12V

* Compact and Durable during Operation:

Design in small size of 200mm*210mm*60mm to save operation space, and maintain function in the temperature range from -20°C to 65℃



Application

* robots and robotics
* Unmanned boats
* Industrial automation and control systems
* Digital signage and media players
* IoT (Internet of Things) and embedded systems

* Education and prototyping projects



Product Name
8F3E1
Jetson Module Supported
NVIDIA Jetson AGX Orin/AGX Xavier
Networking
2x Gigabit Ethernet (10/100/1000)
USB
2x USB 3.0 Type-A
2x USB 2.0
1x Micro-B
Camera
1x 120 pins CSI Camera expansion header
Display
1x HDMI
FAN
1x FAN connector（12V PWM）
M.2 KEY M
2x M.2 KEY M interface
Other I/O
2x CAN，2x RS232，1x Debug，4x GPIO，1x SPI，2x I2C
Mechanical
210mm x 200mm x 60mm
Weight
1485g
Operating Temperature
-20℃~65℃

Y-C8 Jetson Carrier Board features networking capability that is equipped with two Gigabit Ethernet (10/100/1000) port for fast data transfer speed. It also comes with two USB 3.0 Type-A ports, two USB 2.0 and one Micro-B for versatile connectivity options.

Note

When used with the Jetson AGX Xavier module, only one USB 3.1 is available, the rest is USB 2.0, and one RJ45 network port is optional

AGX Xavier 32G
AGX Xavier Industrial
AGX Orin 32G
AGX Orin 64G
AI Performance
32 TOPS
30 TOPS
200 TOPS
275 TOPS
GPU
512-core NVIDIA Volta GPU with 64 Tensor Cores
1792-core NVIDIA Ampere GPU with 56 Tensor Cores
2048-core NVIDIA Ampere GPU with 64 Tensor Cores
CPU
8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3
8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
Memory
32GB 256-bit LPDDR4x 136.5GB/s
32GB 256-bit LPDDR4x (ECC support)
136.5GB/s
32GB 256-bit LPDDR5 204.8 GB/s
64GB 256-bit LPDDR5 204.8 GB/s
Storage
32GB eMMC 5.1
64GB eMMC 5.1
Video Encode
4x4K60 (H.265) 16x1080p60 (H.265) 32x1080p30 (H.265)
2x 4K60 (H.265)
6x 4K30 (H.265)
12x 1080p60 (H.265)
24x 1080p30 (H.265)
1x4K60 (H.265) 3x4K30 (H.265) 6x1080p 60 (H.265) 12x1080p 30 (H.265)
2x4K60 (H.265) 4x4K30 (H.265) 8x1080p 60 (H.265) 16x1080p 30 (H.265)
Video Decode
2x8K30 (H.265) 6x4K60 (H.265) 26x1080p60 (H.265) 52x 1080p30 (H.265)
2x 8K30 (H.265)
4x 4K60 (H.265)
8x 4K30 (H.265)
18x 1080p60 (H.265)
36x 1080p30 (H.265)
1x8K30 (H.265) 2 x4K60 (H.265) 4x4K30 (H.265) 9x1080p60 (H.265) 18x1080p30 (H.265)
1x8K30 (H.265) 3x4K60 (H.265) 7x4K30 (H.265) 11x1080p60 (H.265) 22x 1080p30 (H.265)
PCIe
1x8 + 1x4 + 1x2 + 2x1 (PCIe Gen4, Root Port & Endpoint)
Up to 2x8 + 2x4 + 2x1 (PCIe Gen4, Root Port & Endpoint)
Networking
10/100/1000 BASE-T Ethernet
1x GbE 4x 10GbE
Display
3 multi-mode DP 1.4 /eDP 1.4/HDMI 2.0 No DSI support
1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Power
10W - 30W
20W - 40W
15W - 40W
15W - 60W
