Jetson Orin NX/Orin Nano IPC 18F1E1

●Jetson™ Orin NX:157/117 TOPS,16/8GB LPDDR5
●Jetson™ Orin Nano:67/34 TOPS,8/4GB LPDDR5

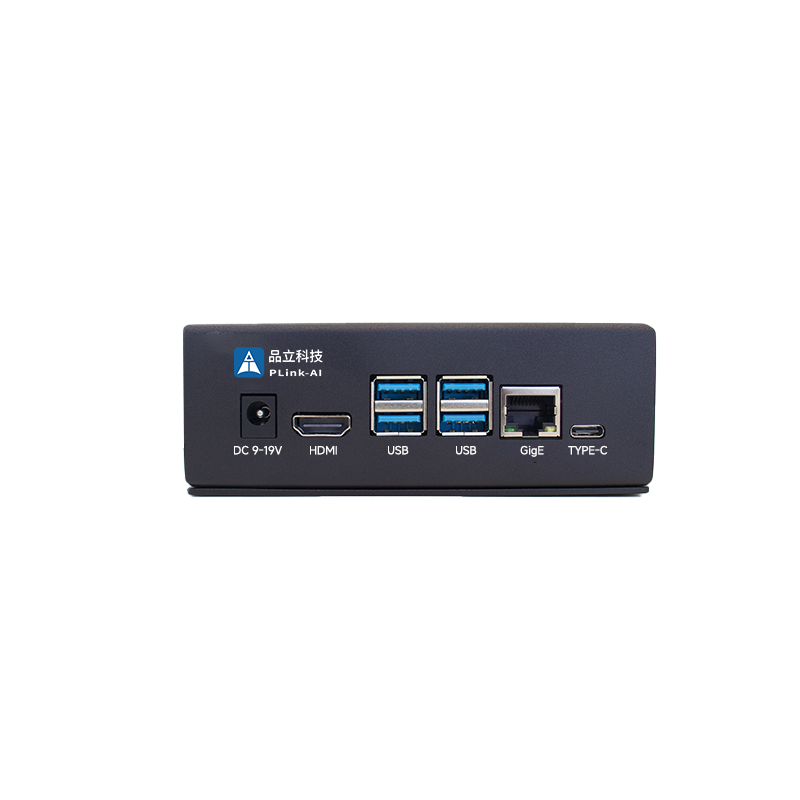

●1xHDMI,4xUSB Type-A,1xRJ45
●1x M.2 E 2230, 2x M.2 M(2230/2280)
●-25℃~+60℃
●Pre-installed Ubuntu system

Introduction

Powered by the NVIDIA Jetson Orin NX/Orin Nano system-on-module,the 18F1E1 is a compact, high-performance edge AI computing platform for advanced AI deployment. It offers scalable AI performance with 34/67/117/157 TOPS multi-grade configurations, flexible enough to fit diverse scenario needs.

At an ultra-small 125mm × 105mm × 45mm size, it supports local model deployment and efficient AI inference, empowering developers, students and makers to quickly build innovative AI applications: mobile robotics, intelligent vision and multi-modal interaction.

Loaded with HDMI, RJ45 Ethernet and USB Type-A ports, it enables seamless multi-device coordination, real-time data processing and large local data storage. It delivers a stable, efficient hardware base for fast, reliable edge AI algorithm deployment.
Ideal for core edge AI use cases: medical imaging, industrial quality inspection, intelligent inspection and mobile autonomous robots.


Specifications

Module Jetson Orin NX 16GB Jetson Orin NX 8GB Jetson Orin Nano 8GB Jetson Orin Nano 4GB
AI Performance 157 TOPS 117 TOPS 67TOPS 34TOPS
GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
CPU
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU

2MB L2 + 4MB L3


6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3
Memory 16GB 128-bit LPDDR5
102.4GB/s
8GB 128-bit LPDDR5
102.4GB/s
8GB 128-bit LPDDR5
102 GB/s
4GB 64-bit LPDDR5
51 GB/s
Storage 256GB SSD
Video Encoding
1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)
12x 1080p30 (H.265)
1080p30，supported by 1-2 CPU cores
Video Decoding
1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265)
1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
Display 1x HDMI
USB 4×USB 3.0 Type-A
Networking 1x RJ45
Wireless
 WIFI5
Expansion
1x M.2 E key（2230）
1x M.2 M key（2230）
1x M.2 M key（2280）
Serial Ports 1x TTL
Temperature -25℃~+60℃
Dimensions 125mm×105mmx45mm
Power
 DC 9V~19V

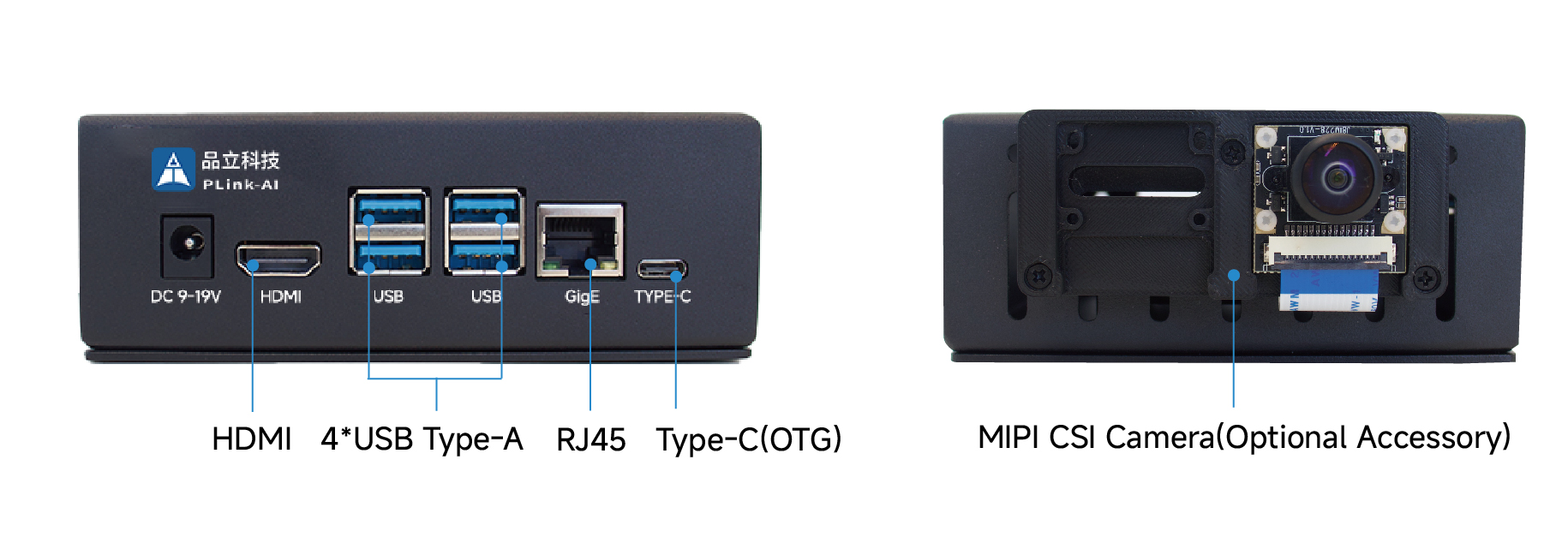

Interfaces

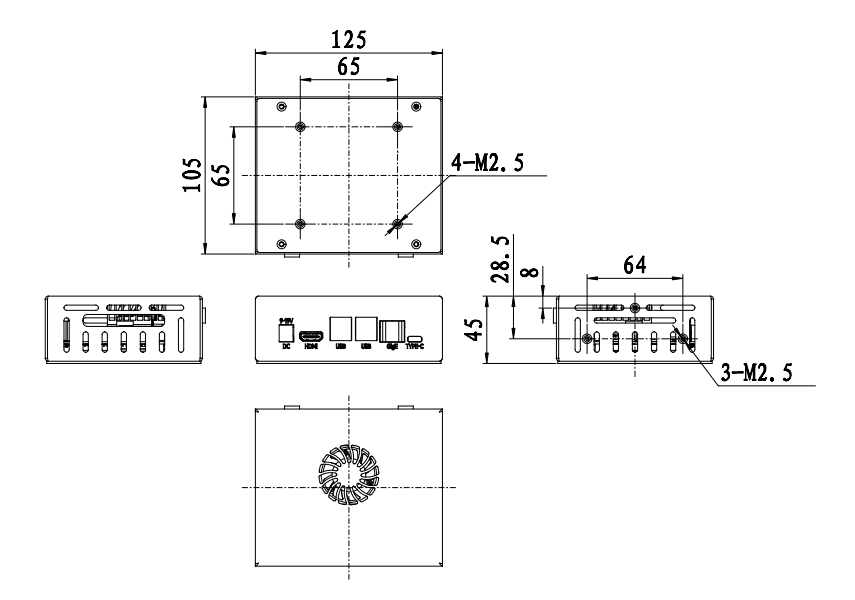

Dimensions
