Jetson Xavier NX IPC 7F5E2

1* USB 3.1 Type-C
1* USB 2.0 Type-A
1* Micro USB
2* Gigabit Ethernet (10/100/1000 BASE-T) RJ45
1* HDMI 2.0 port (Max. 6Gbps, 24bpp, 4096x2160@60Hz)
Standard with 64GB of extended storage

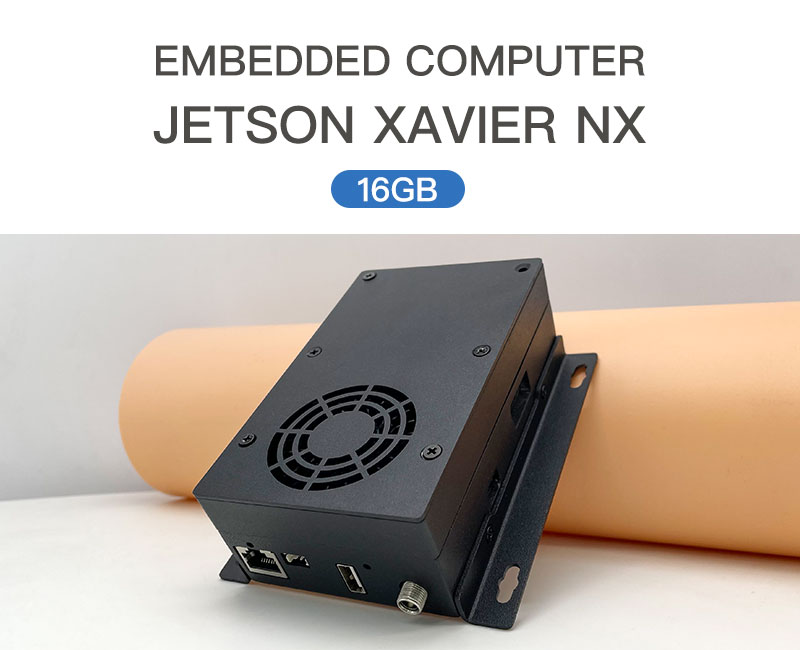

The 7F5E2 is a small AI industrial computer with NVIDIA Jetson Xavier NX series core modules. For industrial deployment applications, the main interface is designed for electrostatic safety protection, and the power supply application scheme of high reliability is adopted. The input power supply has the functions of overvoltage and reverse polarity protection, and has a rich external interface. The internal interface carrier board components are of wide temperature models.


The 7F5E2 adopts fan heat dissipation and internal fan heat dissipation teeth, providing excellent heat transfer and heat dissipation performance, enabling the system to adapt to higher ambient temperatures. Applicable to industrial automation, security, new retail and other scenarios.

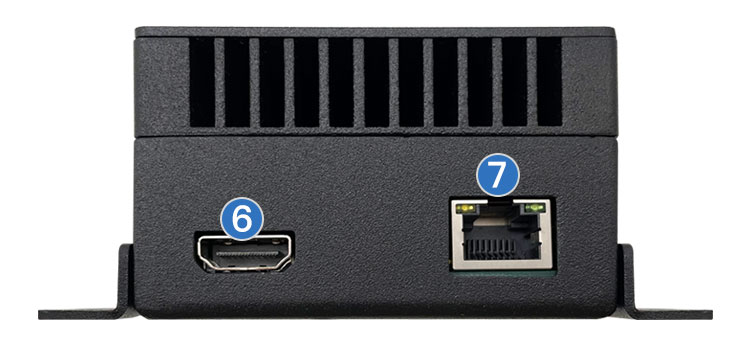

The standard 7F5E2 can be configured with two full speed Gigabit Ethernet ports, one HDMI display port, one USB3.1 Type-port, and one USB 2.0 port.


1* USB 3.1 Type-C
1* USB 2.0 Type-A
1* Micro USB
2* Gigabit Ethernet (10/100/1000 BASE-T) RJ45
1* HDMI 2.0 port (Max. 6Gbps, 24bpp, 4096x2160@60Hz)
Standard with 64GB of extended storage

Recovery

Power on automatically
Product size: 130mm×108mm×45mm
Power supply: DC +9V to +24V
Operating temperature: -25~+60℃

NVIDIA Jetson Xavier NX module

Technical Specification


Jetson Xavier NX 16G

Jetson Xavier NX 8G

AI Performance
21 TOPS
GPU 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
CPU 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU
6MB L2 + 4MB L3

Memory

16 GB 128-bit LPDDR4x
59.7GB/s
8GB 128-bit LPDDR4x
59.7GB/s
Storage 16 GB eMMC 5.1
Power 10 W | 15 W | 20 W

PCIe

1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s*

CSI Camera

Up to 6 cameras (24 via virtual channels)
14 lanes (3x4 or 6x2) MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)
Video Encode
2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)
2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264)

Video Decode

2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)
2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)
Display
2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
Mechanical
69.6 mm x 45 mm
260-pin SO-DIMM connector
