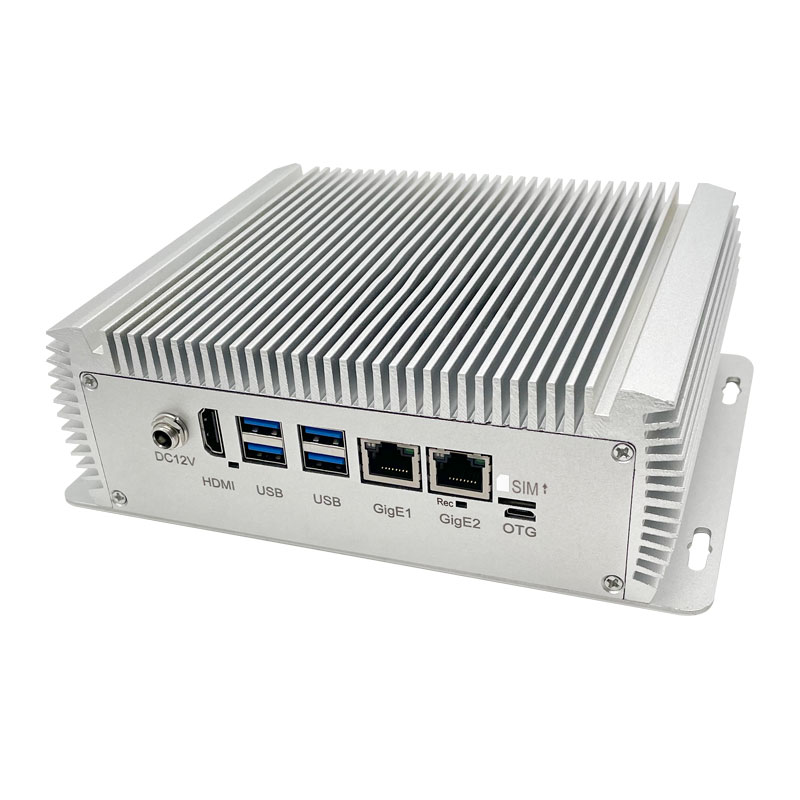

NVIDIA Jetson Orin NX/Orin Nano IPC 11F2E6

NVIDIA Jetson Orin NX/Orin Nano IPC 11F2E6

Size：202mm x 206mm x 64.5mm
Weight：2kg
The industrial computer comes with a 128GB NVME hard drive by default

Feature

* NVIDIA Jetson Carrier Board: Support NVIDIA Jetson Orin NX/Orin Nano Module

* Versatile Connectivity: Offer 4x USB 3.0，6x RJ45 POE，1x HDMI，1x SIM Nano

* Advanced Peripherals Supported:

Assemble 1x fan, 2x M.2 2242 M key, 1x M. 2 3050 B key slot (for 4G/5G module), 2x 4 Lane MIPI camera interface FPC connector, 2x 20 pin 2.0mm spacing multi-function extension pin connector (including 4x GPIO, 2x I2C, 2x SPI, 1x I2S, 2x UART)

* Input Power: DC +12V~ +24V

* Compact and Durable during Operation:

Design in small size of 202mm*206mm*64.5mm to save operation space, and maintain function in the temperature range from -20°C to 65℃

* Size：202mm x 206mm x 64.5mm
* Weight：2000g

The industrial computer comes with a 128GB NVME SSD by default

If you need to replace other sizes of hard disks or expand other interface modules, please contact our sales staff in advance.

Compare NVIDIA® Jetson Orin NX and Jetson Orin NANO Specifications

Module	Orin NX 16GB	Orin NX 8GB	Orin Nano 8GB	Orin Nano 4GB
AI Performance	100 TOPS	70 TOPS	40 TOPS	20 TOPS
GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores			512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
CPU	8-core Arm® Cortex®- A78AE v8.2 64-bit CPU2MB L2 + 4MB L3	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3
Memory	16GB 128-bit LPDDR5 102.4GB/s	8GB 128-bit LPDDR5 102.4GB/s	8GB 128-bit LPDDR5 68 GB/s	4GB 64-bit LPDDR5 34 GB/s
Storage	(Supports external NVMe)
Video Encode	1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)		1080p30 supported by 1-2 CPU cores
Video Decode	1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)		1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)
Networking	1x GbE
Power	10W - 25W	10W - 20W	7W - 15W	7W - 10W

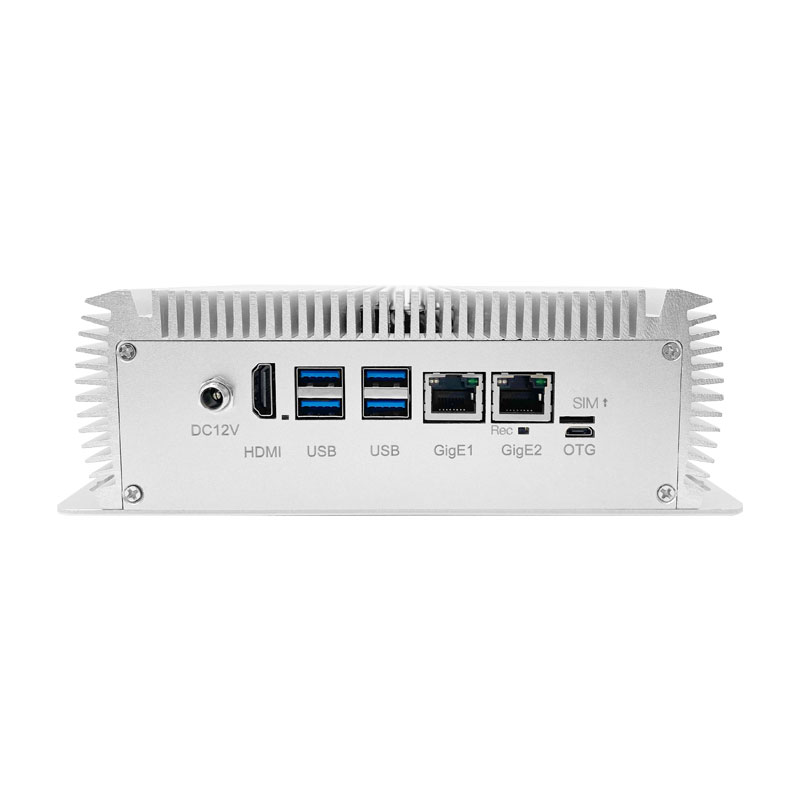

The Interface Display

11F2E6 Industrial computer network port POE function is optional. If you need to expand the function, please contact us

NAME	Description
LED	Carrier board power supply status indicator light
USB	Dual layer Type-A USB 3.0 connector and downward compatible
HDMI	Type A HDMI display and output port
REC	Recovery button, Press and hold the Recovery button to power on the device to enter the recovery mode
GigE1 GigE2	GigE1 and GigE2 in front are standard 10/100/1000M adaptive RJ45 network ports (expandable and POE powered).（The POE function is not standard）

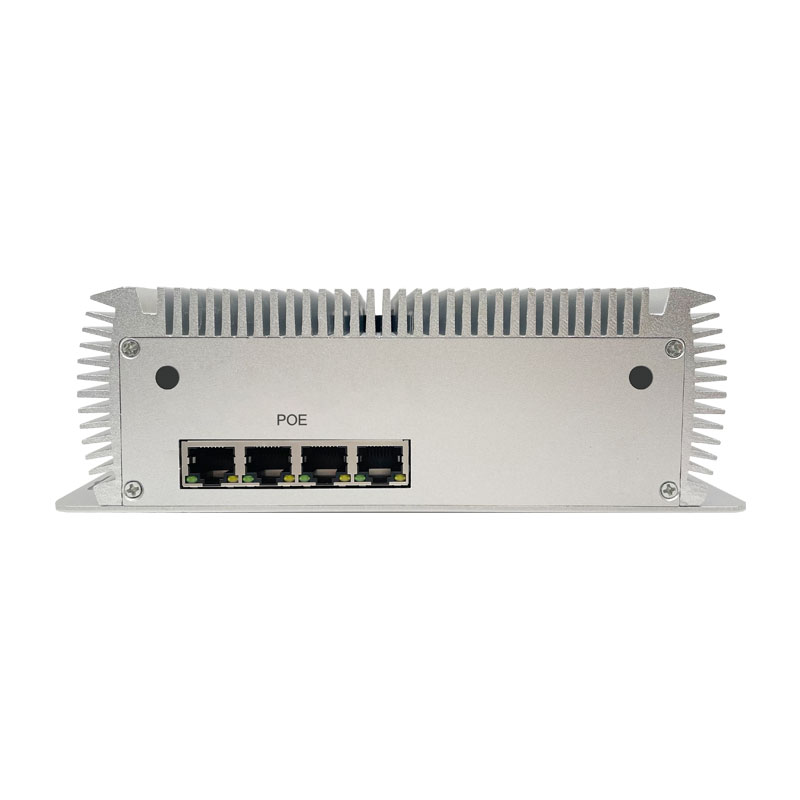

PoE	4 POE network ports (POE function is not standard)
OTG	When equipped with ORIN NX/ORIN NANO module, it is used for system burning and OTG function output.
SIM Card	Nano type SIM card connector（It must be used with a 5G module, which is nonstandard）
Power	DC ：12V～24V
