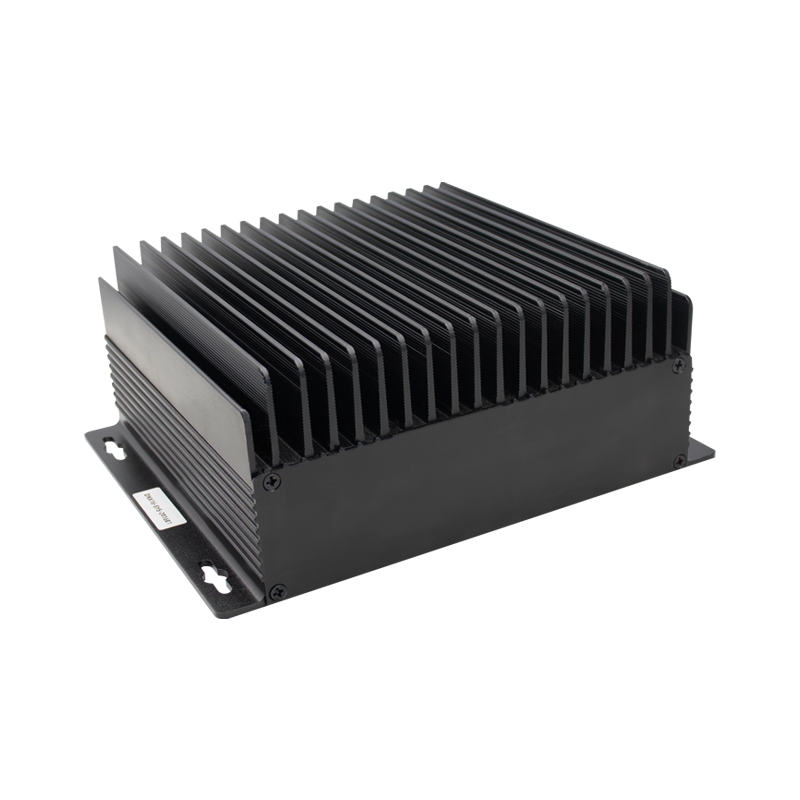

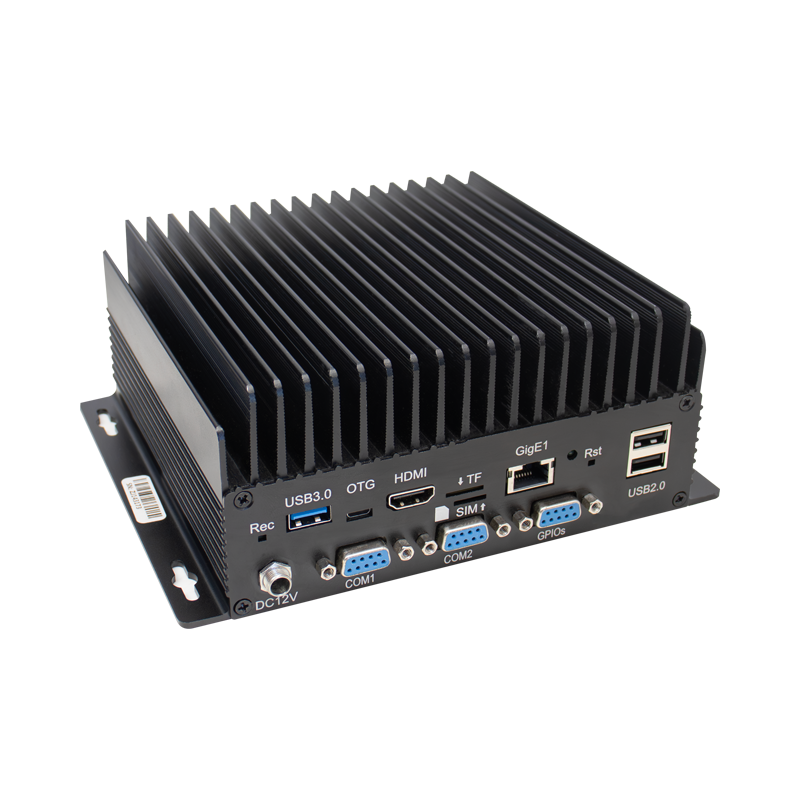

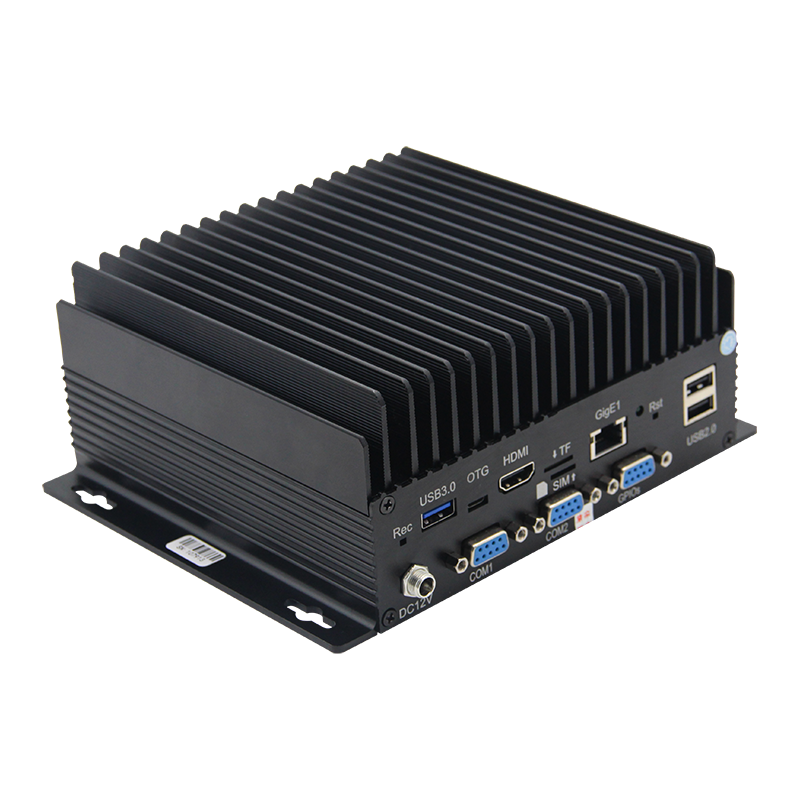

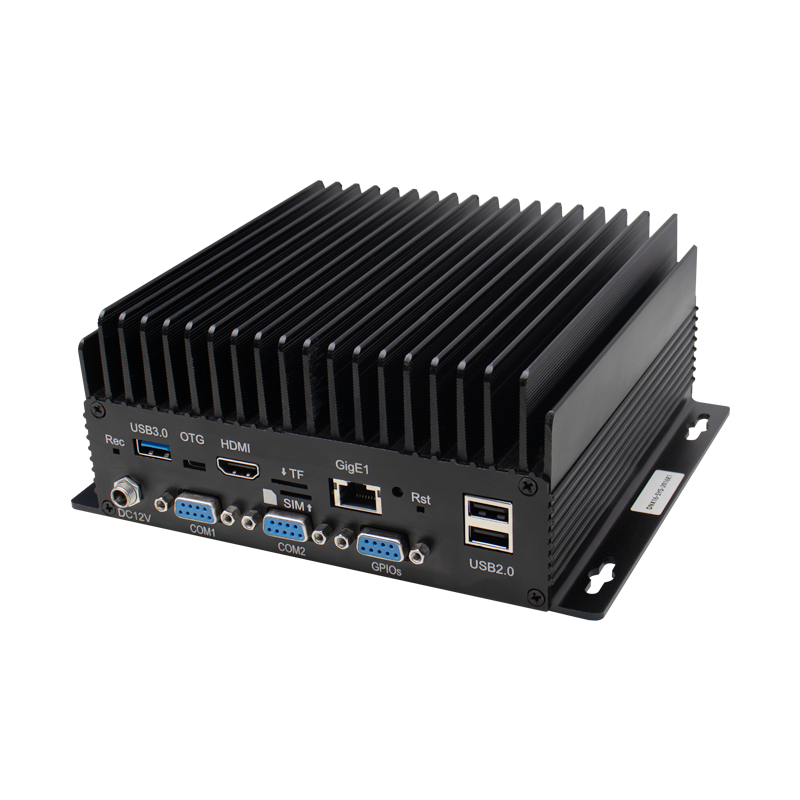

Orin NX SYS-2016

Jetson™ Orin NX: 157/117 TOPS, 16/8GB LPDDR5

Display: 1x HDMI

Other I/O: 1x USB3.0 Type-A, 2x USB2.0 Type-A , 1x Micro SD, 1x Nano SIM, 1x RJ45, 4x GPIO, 1x CAN, 2x RS232

Expansion: 2x miniPCIe

Temperature -25℃+65℃

DC 9V~24V

Pre-installed Ubuntu

Overview

SYS-2016 is a high-performance edge AI computing device based on NVIDIA Jetson Xavier NX / Orin NX system-on-modules. It delivers scalable AI performance of 21/117/157 TOPS to support workloads ranging from lightweight AI inference to sophisticated multimodal AI tasks. Widely applicable to robotics, industrial automation, smart surveillance, smart healthcare and intelligent transportation, it delivers stable, efficient and reliable local edge computing solutions for intelligent transformation.

The SYS-2016 features a rugged, compact industrial design with triple protection against ESD, over-voltage and reverse polarity. All onboard components adopt wide-temperature specifications with outstanding heat conduction and heat dissipation performance. Equipped with abundant I/O interfaces, the device supports expandable full-speed Gigabit Ethernet, high-capacity storage, 4G communication modules and various video capture&output cards, significantly improving system integration flexibility.

Applications
Orin NX SYS-2016 Orin NX SYS-2016

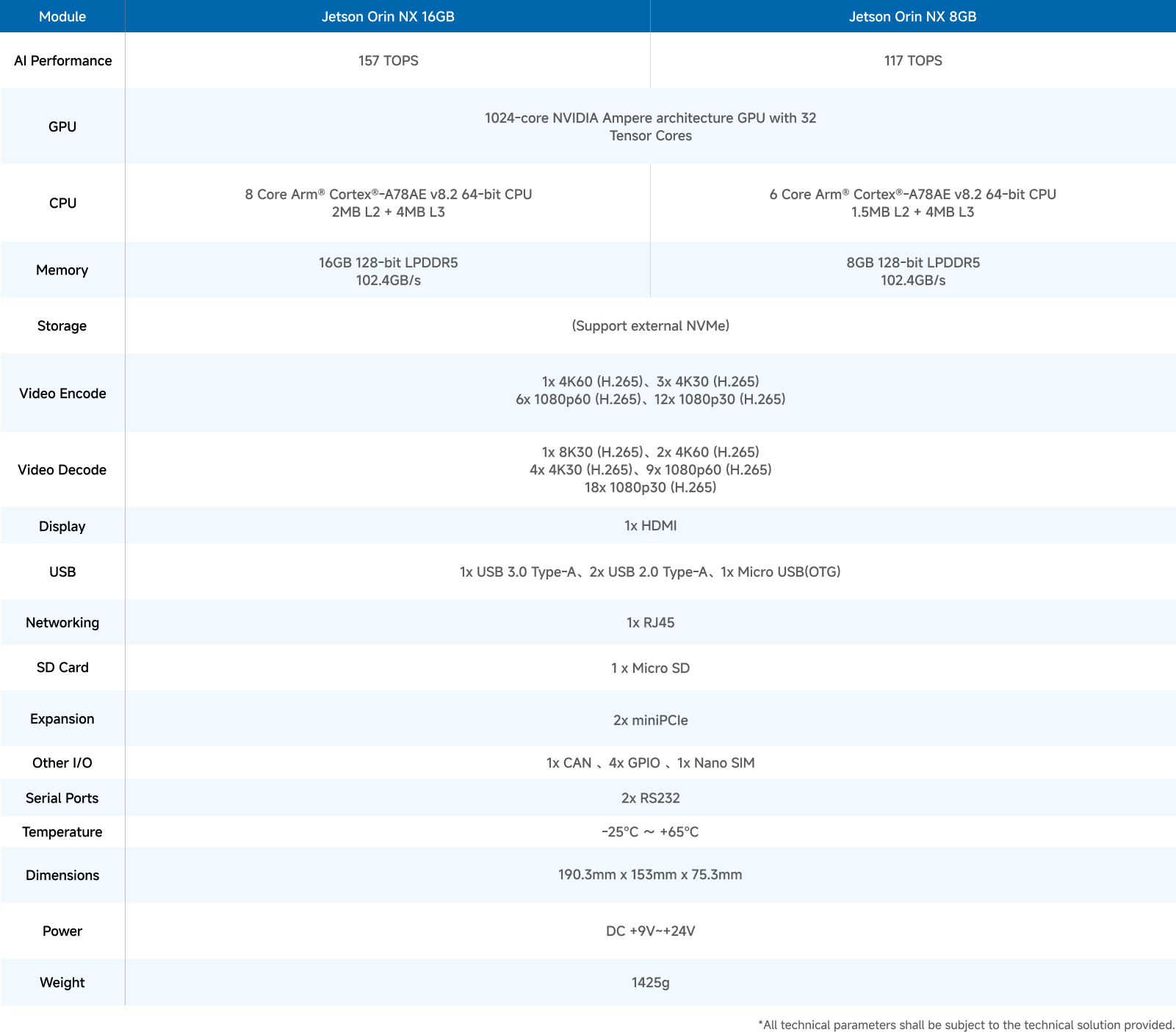

Specifications
Orin NX SYS-2016

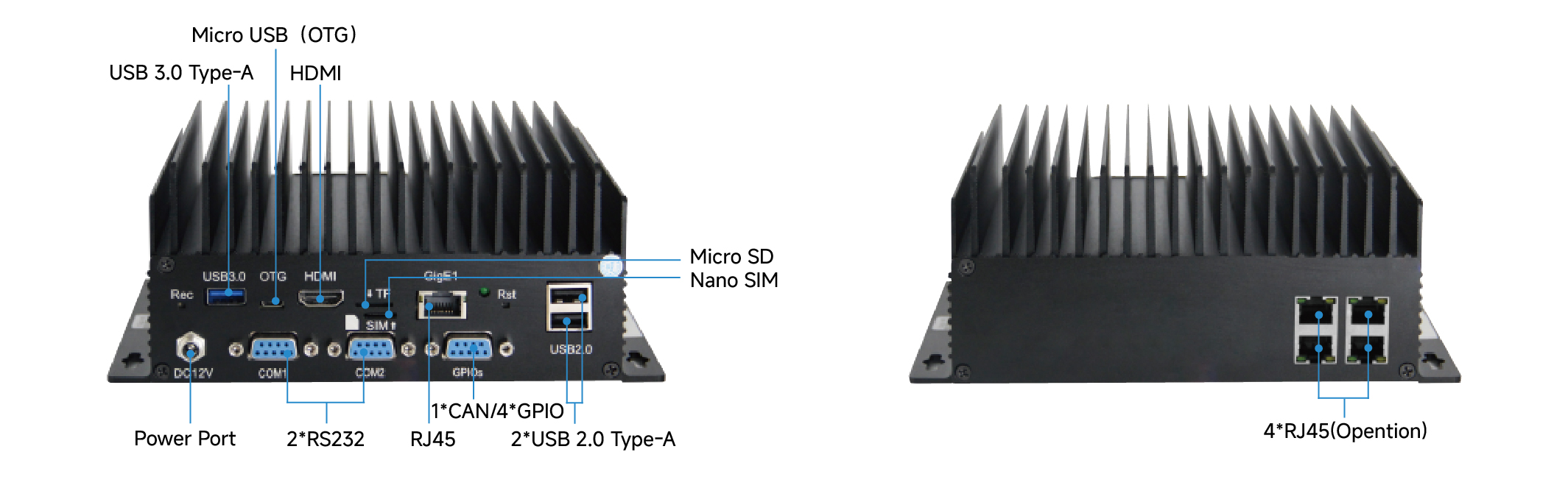

Interfaces
Orin NX SYS-2016
