NVIDIA Jetson 核心模组

  • Jetson Orin NX 模组
Jetson Orin NX 模组

Jetson Orin NX 模组

NVIDIA Ampere architecture
with 1024 NVIDIA® CUDA® cores and 32 tensor cores
Supports external NVMe
69.6mm x 45mm
260-pin SO-DIMM connector

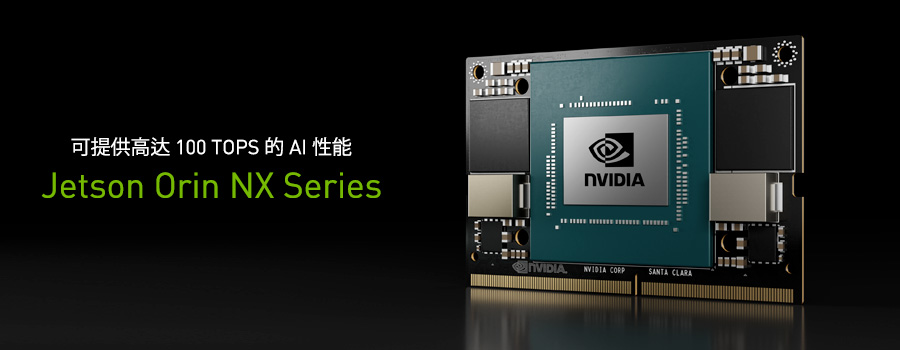

Jetson Orin NX 模组极其小巧,但可提供高达 100 TOPS 的 AI 性能,功率可在 10W 到 25W 之间进行配置。此模组的性能最高可达到 Jetson AGX Xavier 的 3 倍、Jetson Xavier NX 的 5 倍。



Jetson AGX Orin NX 模组技术规格


Jetson AGX Orin NX 8GB

Jetson AGX Orin NX 16GB

AI Performance
70 TOPS (INT8)
100 TOPs (INT8)

GPU

NVIDIA Ampere architecture
with 1024 NVIDIA® CUDA® cores and 32 tensor cores

Max GPU Freq
765 MHz
918 MHz

CPU

6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3

8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3

CPU Max Freq
2 GHz
DL Accelerator
1x NVDLA v2.0
2x NVDLA v2.0
DLA Max Frequency
614 MHz
Vision Accelerator
PVA v2.0

Memory 8GB 128-bit LPDDR5
102.4 GB/s

16GB 128-bit LPDDR5
102.4 GB/s

Storage

Supports external NVMe

CSI Camera

Up to 4 cameras (8 via virtual channels*)
8 lanes MIPI CSI-2
D-PHY 1.2 (20 Gbps)

Video Encode

1x 4K60 | 3x 4K30| 6x 1080p60 | 12x 1080p30 (H.265)
H.264, H.265, AV1

Video Decode

1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60 | 18x 1080p30 (H.265)
H.264, H.265, VP9, AV1

UPHY

3 x1 + 1 x4 PCIe Gen 4
3x USB 3.2 Gen2

Networking

1x GbE

Display

1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1

Other I/O

3x USB 2.0
3x UART | 2x SPI | 4x I2C | 1x CAN | DMIC | DSPK | 2x I2S | 15x GPIOs

Power

10W | 15W | 20W
10W | 15W | 25W
Mechanical 69.6mm x 45mm
260-pin SO-DIMM connector

*Jetson Orin NX 的虚拟通道相关摄像头信息并非最终信息,可能会发生变化。
