NVIDIA Jetson 整机

  • Jetson AGX Orin / Xavier 工控机 8F5E2
  • Jetson AGX Orin / Xavier 工控机 8F5E2
  • Jetson AGX Orin / Xavier 工控机 8F5E2
  • Jetson AGX Orin / Xavier 工控机 8F5E2
Jetson AGX Orin / Xavier 工控机 8F5E2Jetson AGX Orin / Xavier 工控机 8F5E2Jetson AGX Orin / Xavier 工控机 8F5E2Jetson AGX Orin / Xavier 工控机 8F5E2

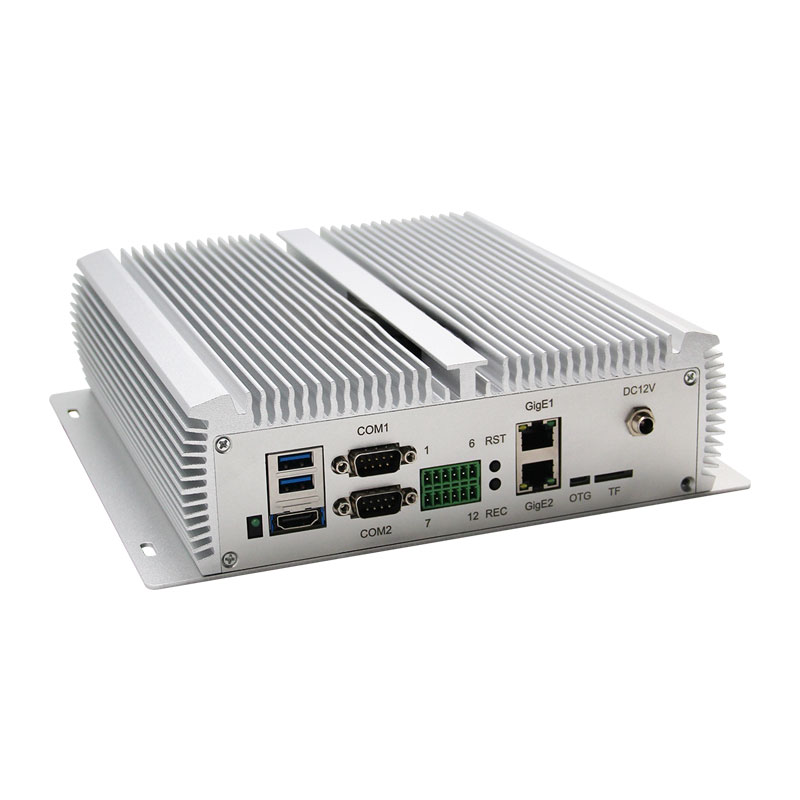

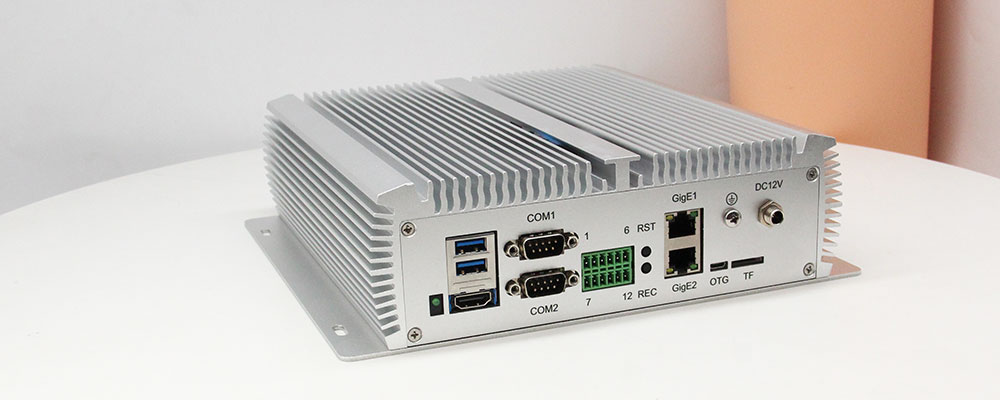

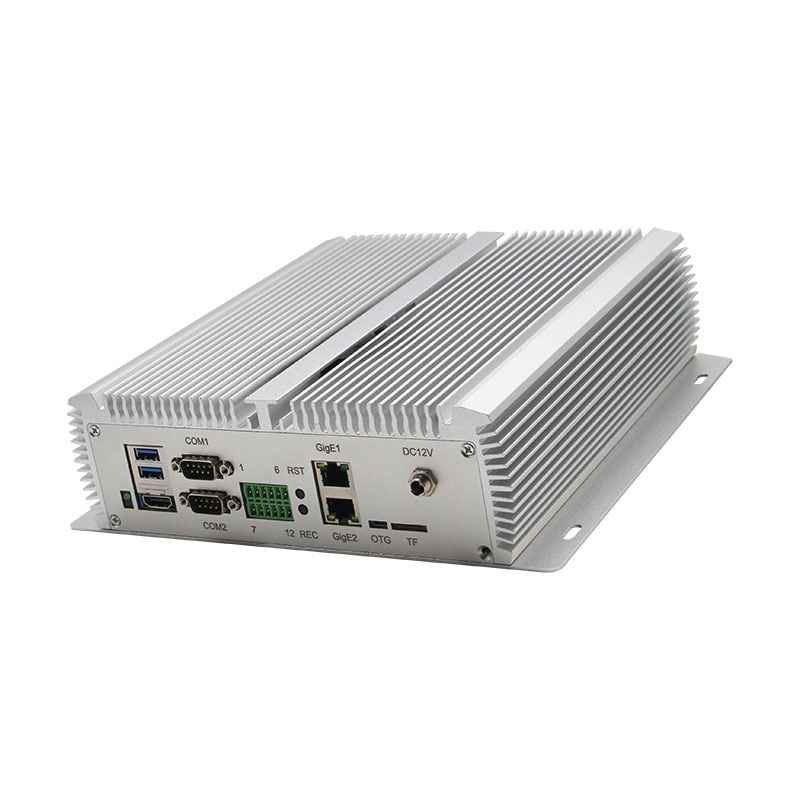

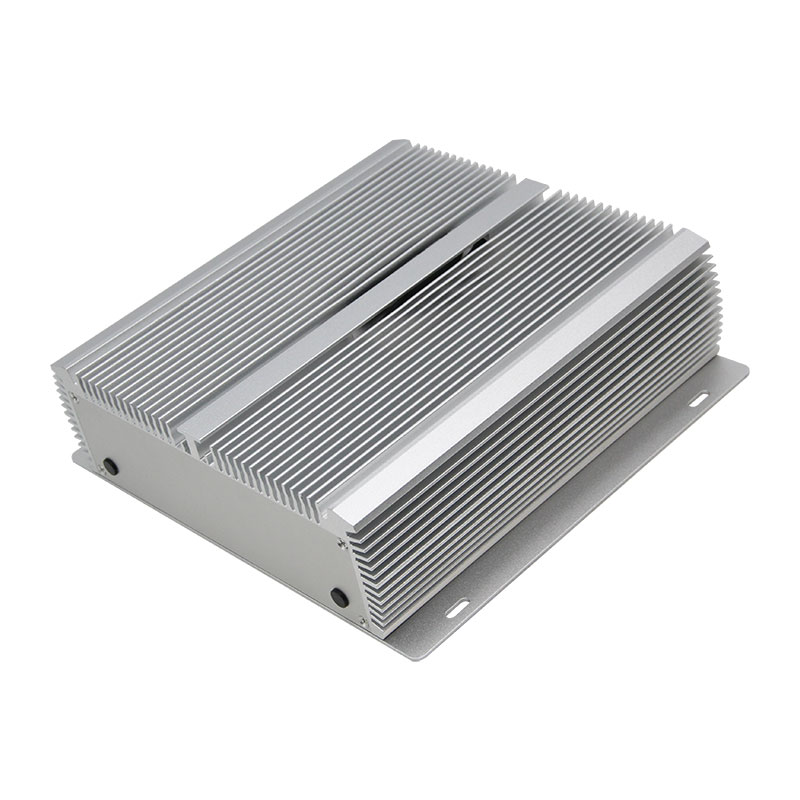

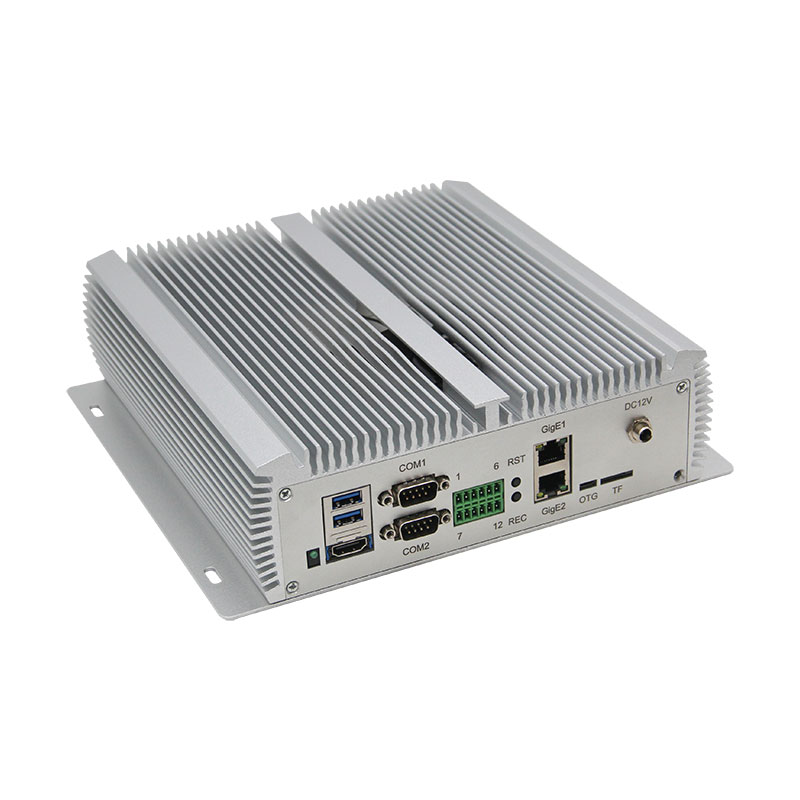

Jetson AGX Orin / Xavier 工控机 8F5E2

产品尺寸:288mm×238mm×67 mm
电源要求:12V
工作温度: -25~+65℃
重量:2950g

8F5E2是一款搭配NVIDIA Jetson AGX Xavier/AGX Orin核心模块的加固型AI工控机。内部接口器件均采用宽温型号。


8F5E2标准型可支持多个全速千兆以太网,如需扩展USB3.0信号、SSD存储卡、SATA信号、4G通信模块、各类视频采集/输出卡、AD采集卡、多串口卡、声音采集/输出卡、多功能IO卡等...



Module NVIDIA Jetson AGX Xavier 32G NVIDIA Jetson AGX ORIN 32G NVIDIA Jetson AGX ORIN 64G
AI Performance

32 TOPS

200 TOPS

275 TOPS

CPU

8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3

Memory

32GB 256-bit LPDDR4 x 136.5GB/s
32GB 256-bit LPDDR5 204.8 GB/s
64GB 256-bit LPDDR5 204.8 GB/s
GPU 512-core NVIDIA Volta GPU with 64 Tensor Cores
1792-core NVIDIA Ampere GPU with 56 Tensor Cores 2048-core NVIDIA Ampere GPU with 64 Tensor Cores
USB Micro-B
1 x Type B (OTG)
USB Type-A
1 x USB 3.1
2 x USB 3.1 2 x USB 3.1
Other I/O

4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS 232 | 1 x Debug(UART)

2 x CAN (with on-board transceiver)

Networking 2 x 10/100/1000 Ethernet/RJ45
Power Supply DC + 12V
Temperature
-25~+65°C
Dimensions
238 mm × 222 mm × 67 mm
Weight 2950g

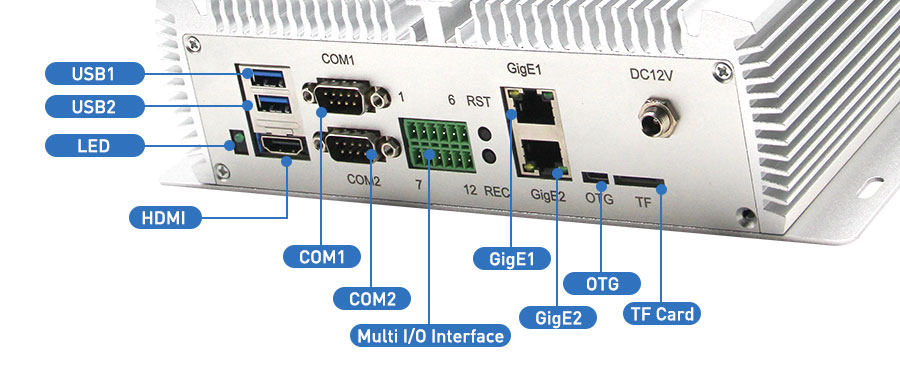

对外接口展示
