Jetson Xavier NX IPC SYS-2006

NVIDIA® Jetson Xavier™ NX, 21 TOPS in 15W power mode with 384 CUDA Cores, 48 Tensor Cores, 2 NVDLA engines, 6 ARM CPU cores, 8 GB 128-bit LPDDR4x 51.2GB/s memory, it can run simultaneously Run multiple network models.

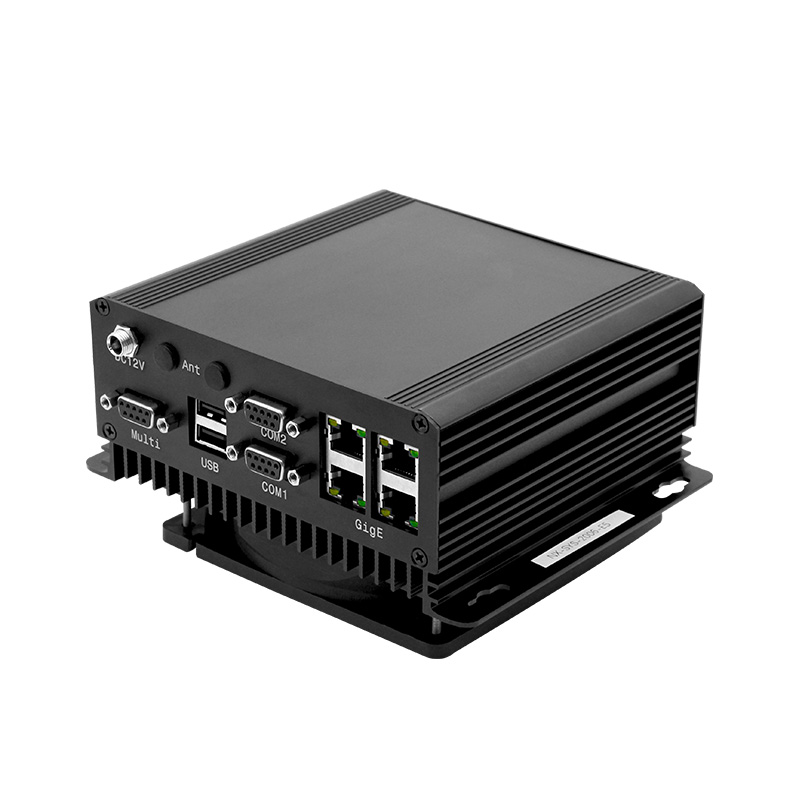

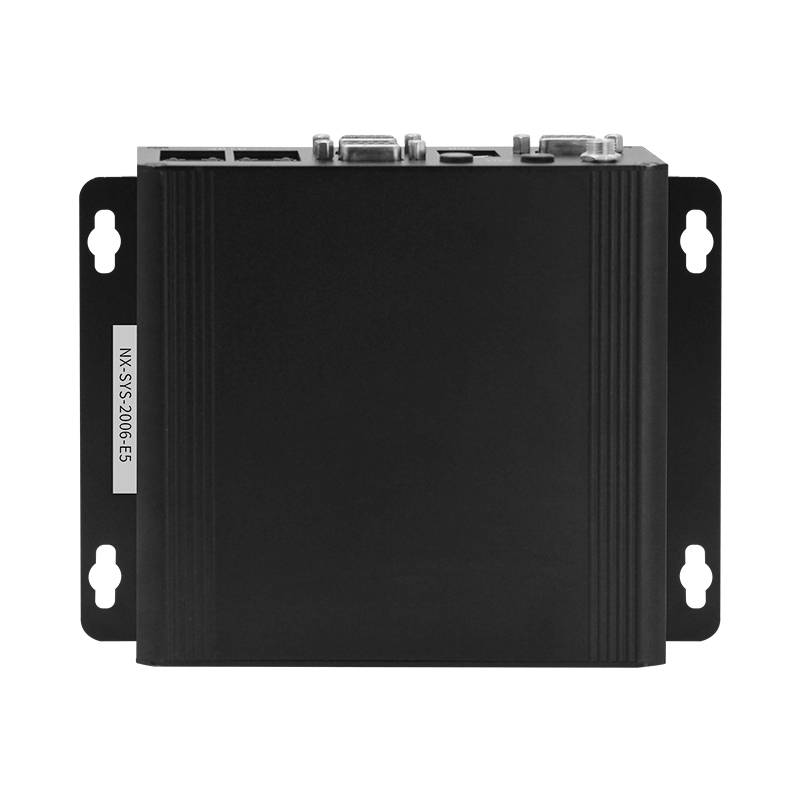

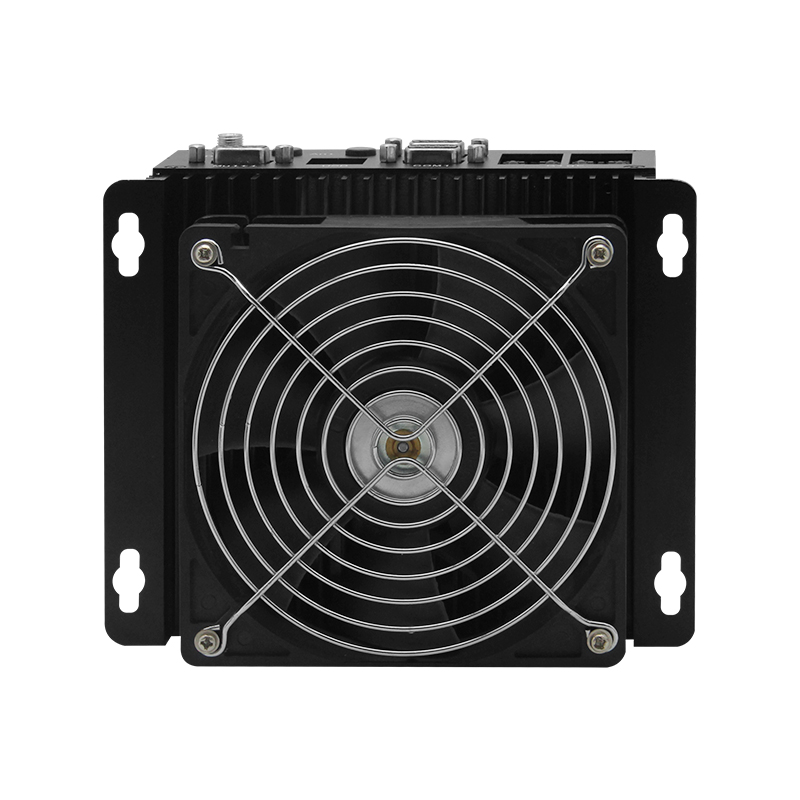

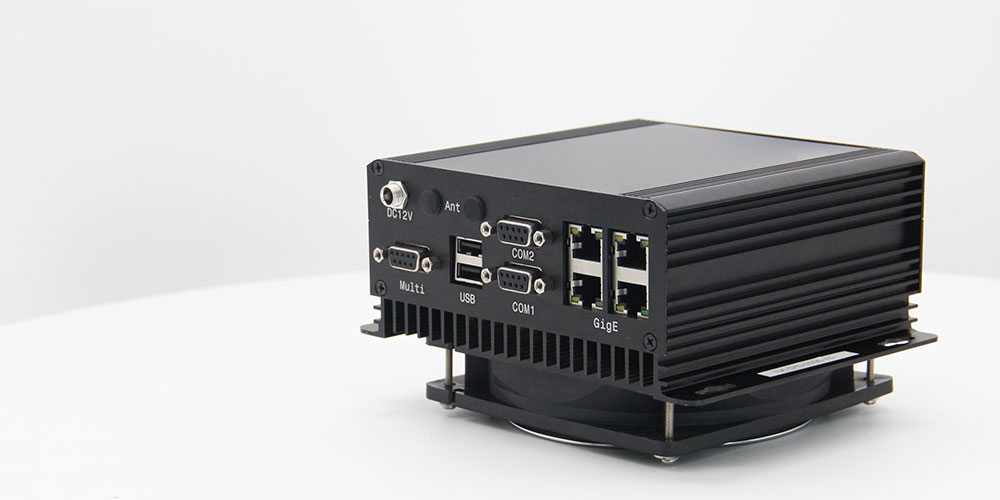

NX-SYS-2006 is a compact AI industrial computer with NVIDIA® Jetson™ Xavier NX series core modules. For industrial deployment applications, the main interfaces are designed for electrostatic safety protection, and a high-reliability power supply application scheme is adopted. The input power supply has overvoltage and reverse polarity protection functions, and has a wealth of external interfaces. warm model.

NX-SYS-2006 standard type can support 1/3/5 full-speed Gigabit Ethernet, if you need to expand USB3.0 signal, SSD memory card, SATA signal, 4G communication module, various video capture/output cards, AD capture card, multi-serial port card, sound acquisition/output card, multi-function IO card, etc., please contact our sales staff.

NVIDIA® Jetson Xavier™ NX, 21 TOPS in 15W power mode, with 384 CUDA Cores, 48 Tensor Cores, 2 NVDLA engines, 6 ARM CPU cores, 8 GB 128-bit LPDDR4x 51.2 GB/s memory, it can run multiple network models at the same time.


Product Feature

Ø Factory pre-installed Xavier NX core module
Ø 1 USB3.1 TypeA connector
Ø 2 USB2.0 TypeA connectors
Ø 1 Micro USB connector
Ø Optional 1/3/5 Gigabit Ethernet (10/100/1000 BASE-T) RJ45 connectors
Ø 1 HDMI 2.0 interface (maximum 6Gbps, 24bpp, 4096x2160@60Hz)
Ø Optional 32GB ~ 1TB SSD expansion storage
Ø 1 working indicator light
Ø 1 micro TF card connector
Ø 1 Nano SIM card connector
Ø Automatically start when power on
Ø Onboard Reset and Recovery buttons
Ø 1 CAN bus interface with onboard transceiver
Ø 2 RS-232 level serial ports
Ø 3 3.3V bit programmable GPIO, 1 bit programmable GPO with 3.3V strong drive capability
Ø Product size: 160mm×130mm×65mm
Ø Power requirements: DC +9V~+24V
Ø Working temperature: -25~+65℃


Jetson Xavier NX Module Technical Specifications


Jetson Xavier NX 16GB

Jetson Xavier NX

AI Performance

21 TOPS

GPU

384-core NVIDIA Volta GPU with 48 Tensor Cores

CPU

6-core NVIDIA Carmel ARM®v8.2 64-bit CPU
6MB L2 + 4MB L3

Memory

16 GB 128-bit LPDDR4x
59.7GB/s

8 GB 128-bit LPDDR4x
59.7GB/s

Storage

16 GB eMMC 5.1

Power

10 W | 15 W | 20 W

PCIe

1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s*

CSI Camera

Up to 6 cameras (24 via virtual channels)
14 lanes (3x4 or 6x2) MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps)

Video Encode

2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)
2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264)

Video Decode

2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)
2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)

Display

2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0

DL Accelerator

2x NVDLA Engines

* Please refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features



Order Information

Order

Function

NX-SYS-2006




NVIDIA® JetsonTM Xavier NX series module compact AI embedded industrial computer.
