Jetson Xavier NX IPC NX-SYS-2016

Input Power : DC +12V
Temperature Range : -25℃ to 65℃
Size : 190mm × 160mm ×76.3mm

NX-SYS-2016 is a compact AI industrial computer with NVIDIA®Jetson™ Xavier NX series core modules. For industrial deployment applications, the main interfaces are designed for electrostatic safety protection, and a high-reliability power supply application scheme is adopted. The input power supply has overvoltage and reverse polarity protection functions, and has a wealth of external interfaces. warm model.

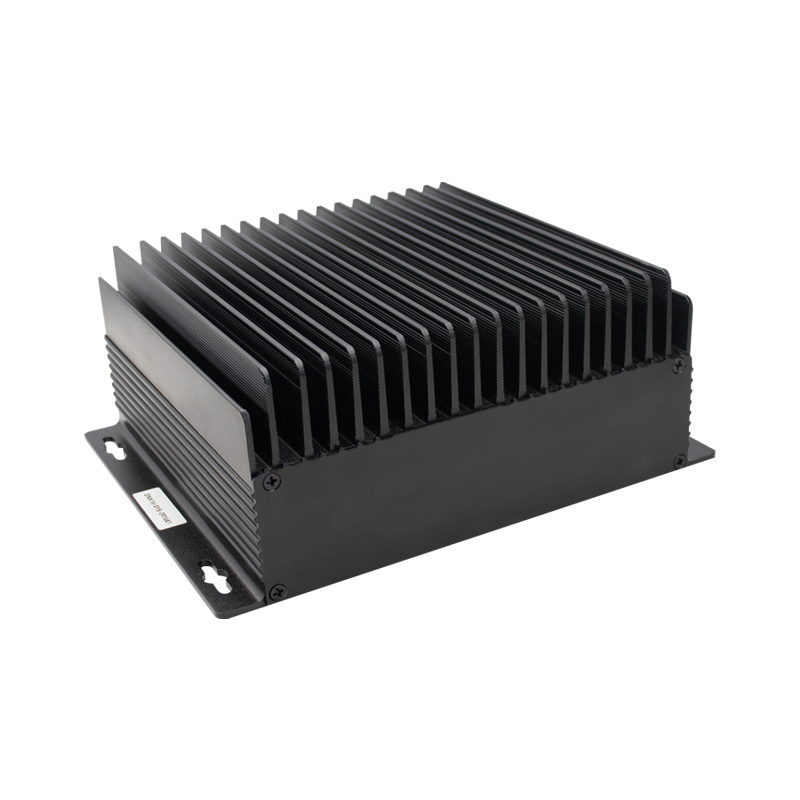

NX-SYS-2016 adopts large-size heat dissipation fins, and uses red copper bosses and high-performance heat pipes for heat dissipation design. It has good heat conduction and heat dissipation performance, so that the whole machine can adapt to  higher ambient temperature scenarios.

NX-SYS-2016 standard type can support 1/3/5 full-speed Gigabit Ethernet, if you need to expand USB3.0 signal, SSD memory card, SATA signal, 4G communication module, various video capture/output cards, AD capture card, multi-serial port card, sound acquisition/output card, multi-function IO card, etc.

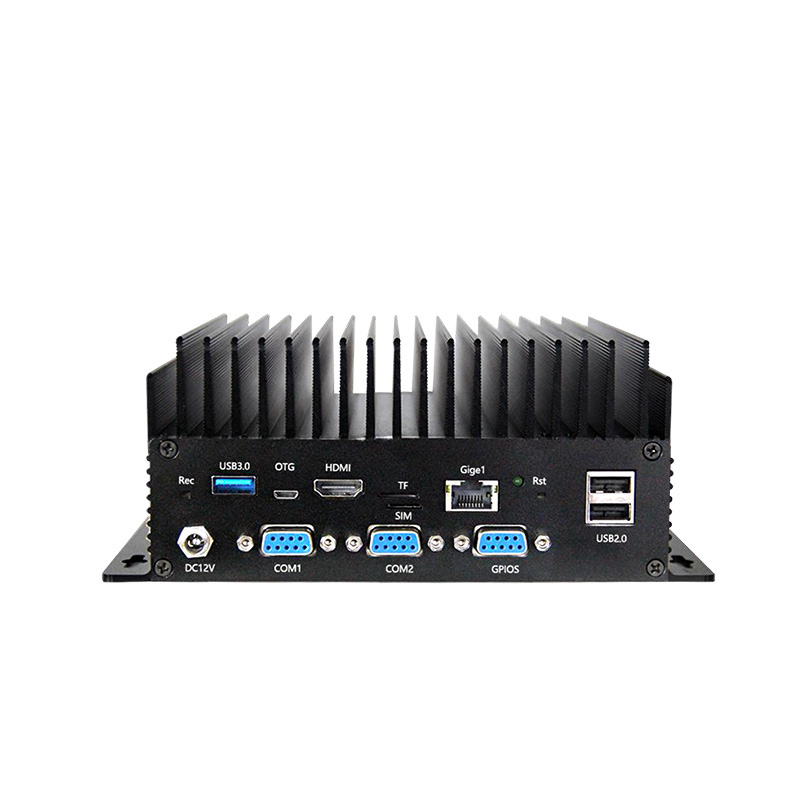

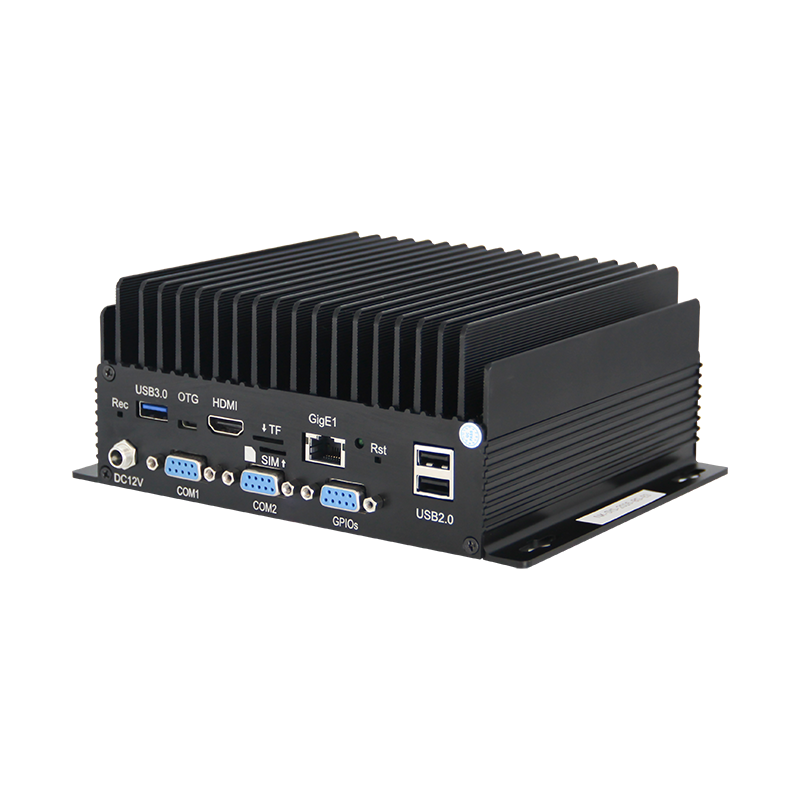

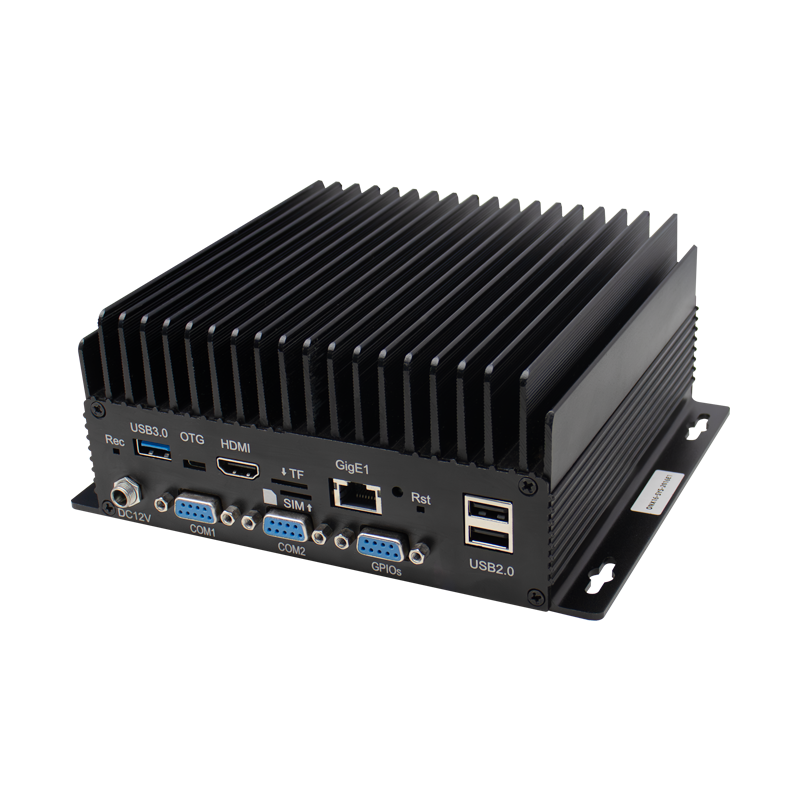

Product Feature

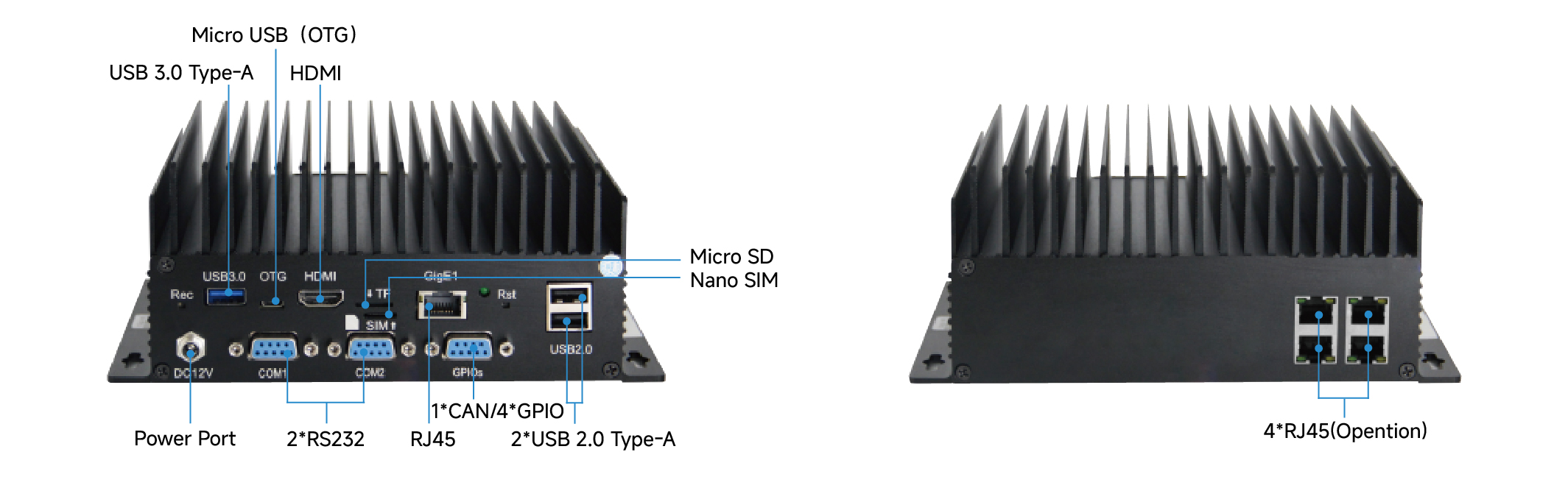

Ø Factory pre-installed Xavier NX core module

Ø 1 USB3.1 TypeA connector

Ø 2 USB2.0 TypeA connectors

Ø 1 Micro USB connector

Ø Optional 1/3/5 Gigabit Ethernet (10/100/1000 BASE-T) RJ45 connectors

Ø 1 HDMI 2.0 interface (maximum 6Gbps, 24bpp,4096x2160@60Hz)

Ø Optional 32GB ~ 1TB SSD expansion storage

Ø 1 micro TF card connector

Ø 1 SIM card connector

Ø Automatically start when power on

Ø Onboard Reset and Recovery buttons

Ø 1 CAN bus interface with onboard transceiver

Ø 2 RS-232 level serial ports

Ø 3 3.3V bit programmable GPIO, 1 bit programmable GPO with 3.3V strong drive capability

Ø Product size: 190mm×160mm×76.3mm

Ø Weight: 1425g

Ø Power requirements: DC +9V~+24V

Ø Working temperature: -25~+65℃

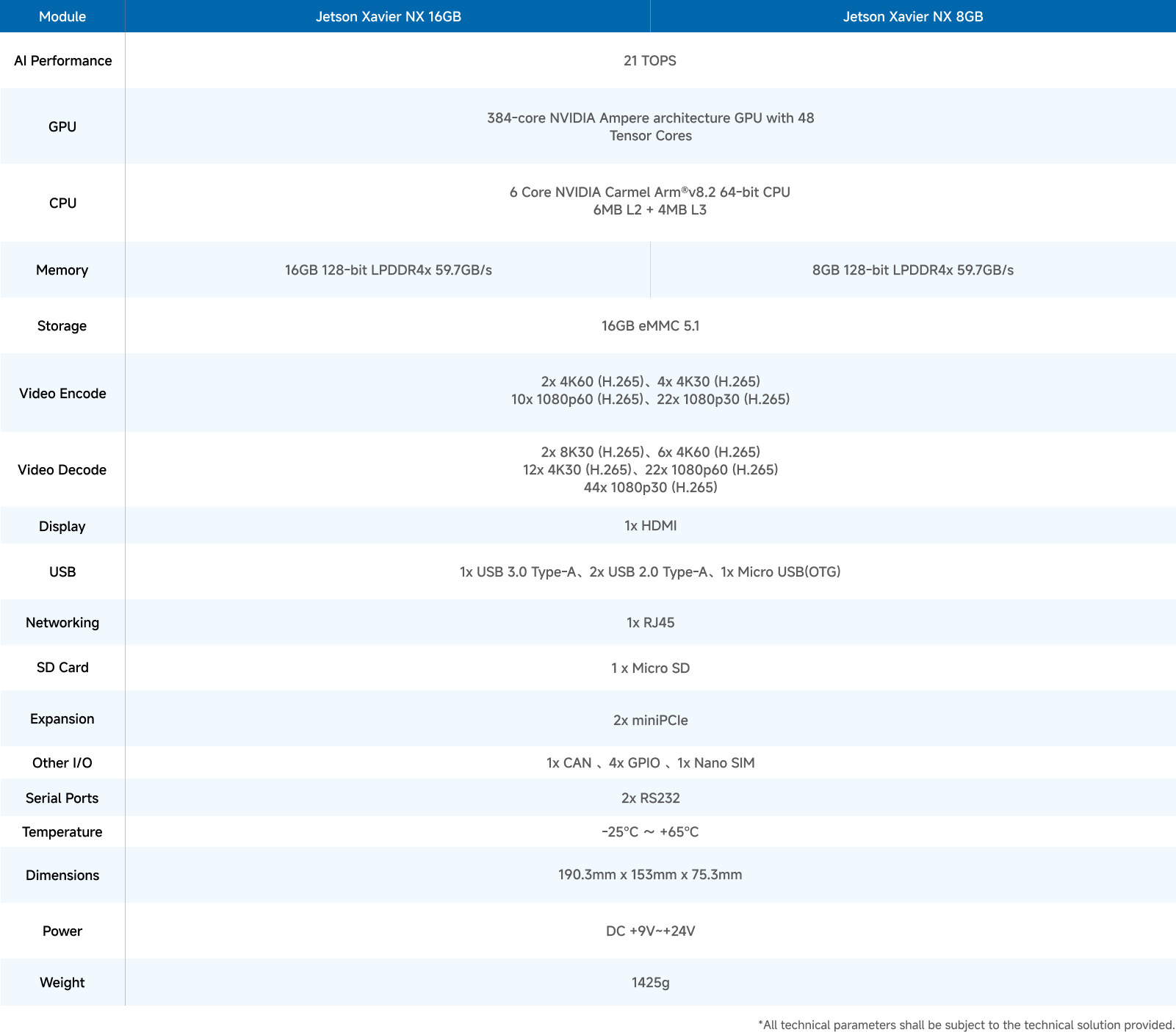

Jetson Xavier NX 16GB

Jetson Xavier NX

AI Performance



384-core NVIDIA Volta™GPU with 48 Tensor Cores


6-core NVIDIA Carmel ARM®v8.2 64-bit CPU
6MB L2 + 4MB L3


16 GB 128-bit LPDDR4x

8 GB 128-bit LPDDR4x


16 GB eMMC 5.1


10 W | 15 W | 20 W


1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s*

CSI Camera

Up to 6 cameras (24 via virtual channels)
14 lanes (3x4 or 6x2) MIPI CSI-2D-PHY 1.2 (up to 30 Gbps)

Video Encode

2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)
2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264)

Video Decode

2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)
2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)


2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0

DL Accelerator

2x NVDLA Engines

* Please refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features

Order Information




NVIDIA® JetsonTM Xavier NX series module

Compact AI embedded Industrial computer.
