NVIDIA Jetson Embedded Systems

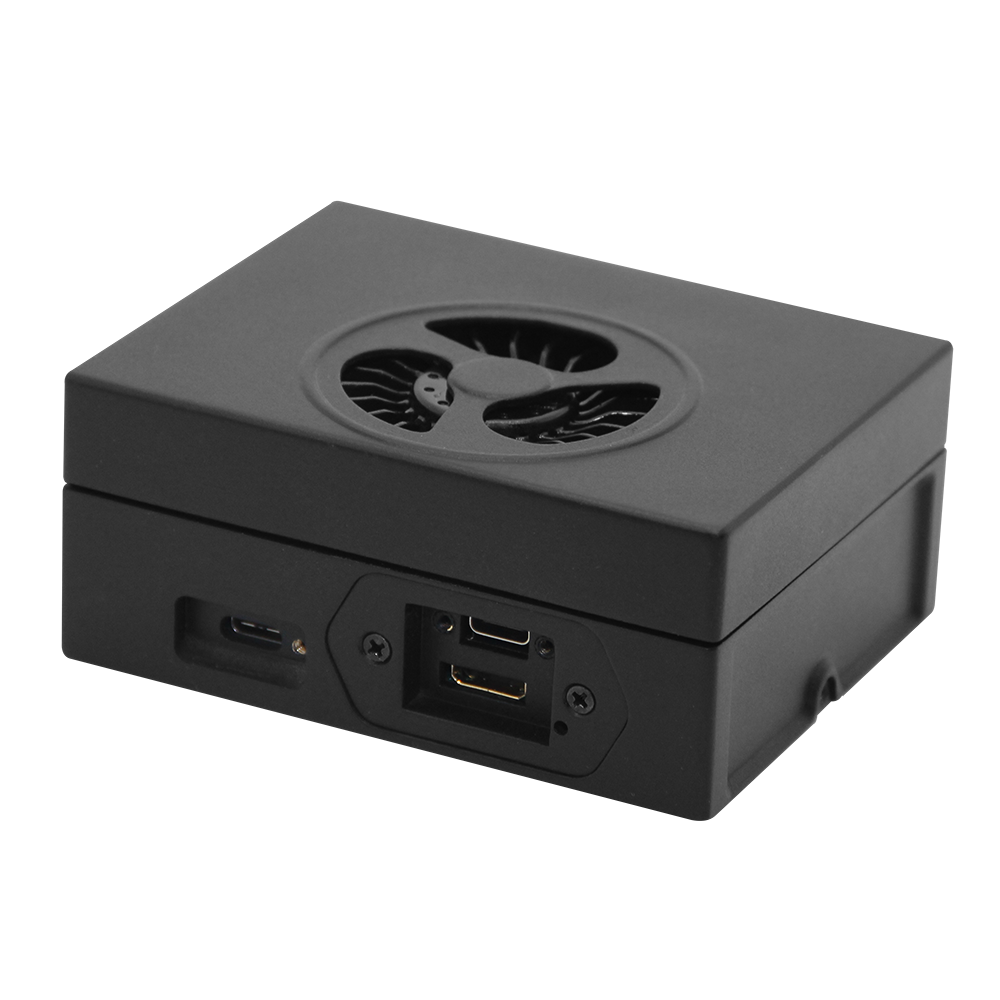

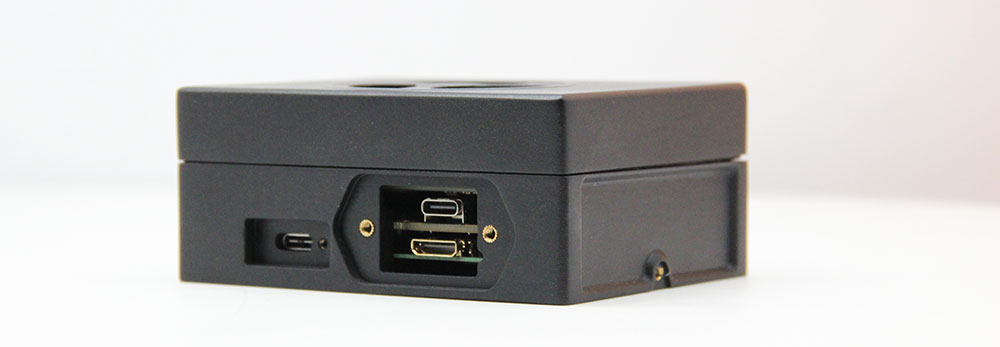

Jetson Xavier NX/Orin NX IPC NX16-7F4

With Jetson Xavier NX 16G /Orin NX 16G Module
Built-in wifi5

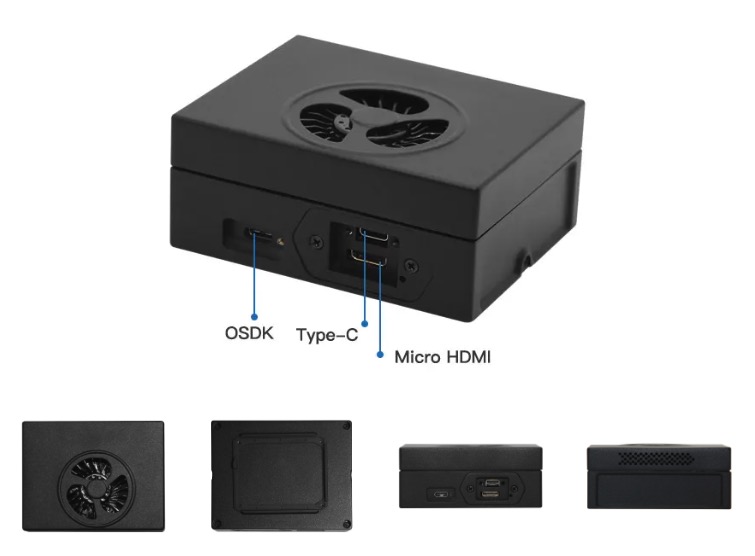

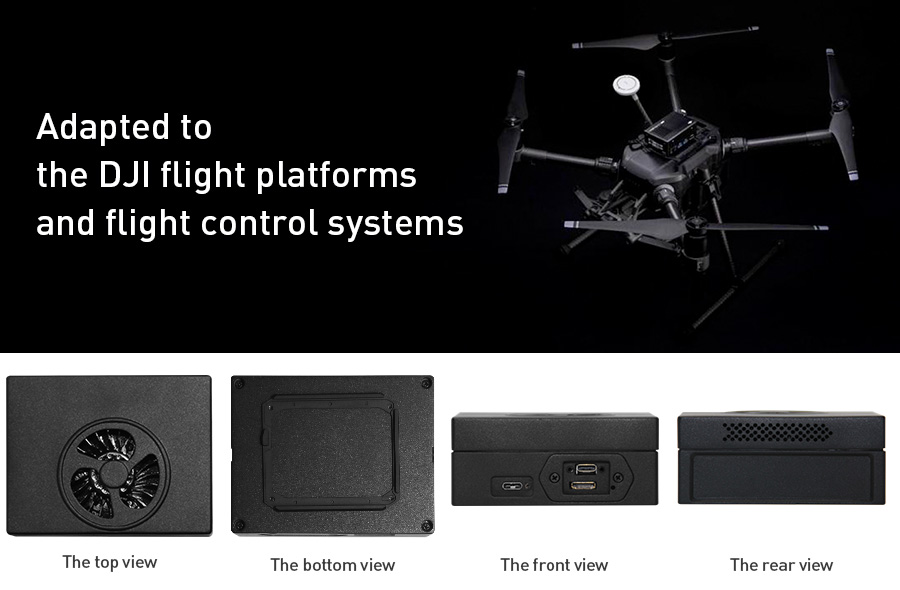

OSDK Connector
Size : 98mm × 76mm × 42mm
Weight : 182g

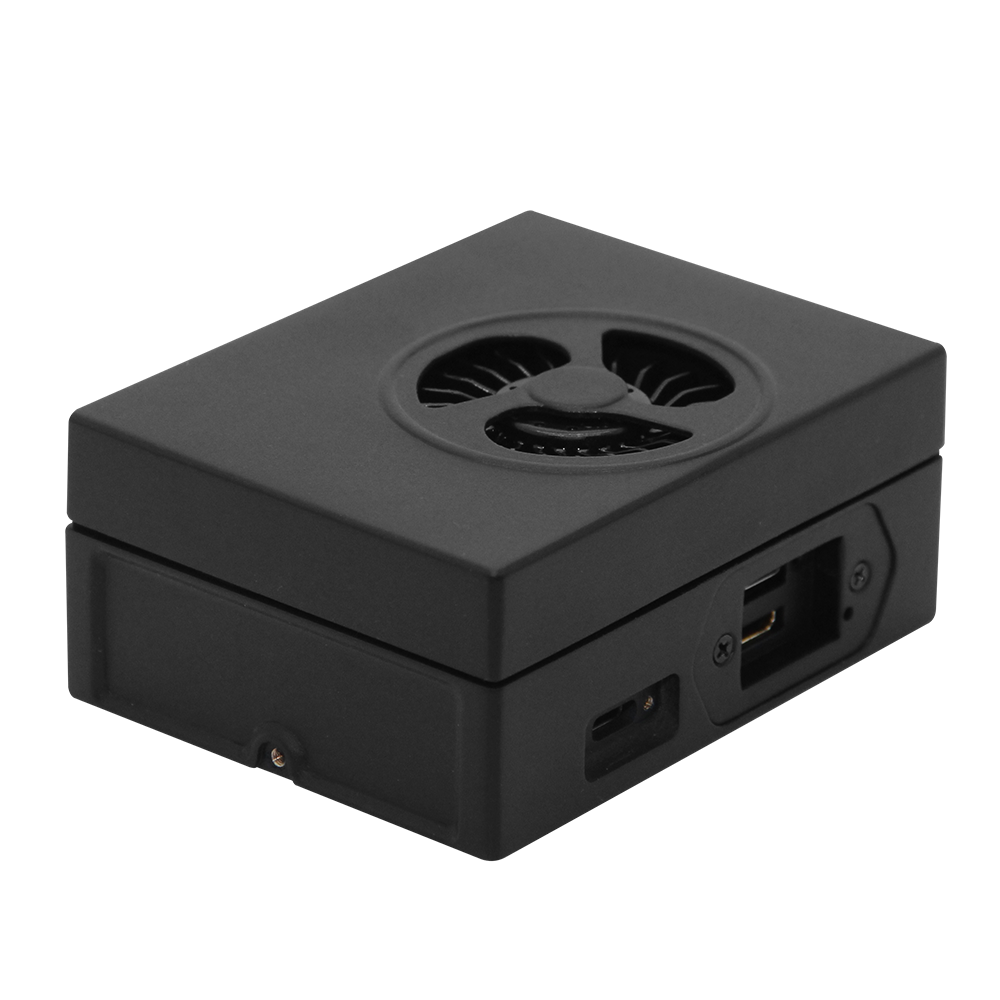

7F4 with NVIDIA Jetson Xavier NX 16G / Orin NX 16G module is a small IPC which is suitable for compact deployment

Product Feature

	NX16-7F4	ONX16-7F4
AI Performance	21 TOPS	100 TOPS
GPU	384-core NVIDIA Volta™ GPU with 48 Tensor Cores	NVIDIA Ampere architecture with 1024 NVIDIA^® CUDA^®cores and 32 tensor cores
CPU	6-core NVIDIA Carmel Arm^®v8.2 64-bit CPU 6MB L2 + 4MB L3	8-core Arm^® Cortex^®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
DL Accelerator	2x NVDLA	2x NVDLA v2
Vision Accelerator	2 x PVA	PVA v2.0
Memory	16GB 128-bit LPDDR4x 59.7GB/s	16GB 128-bit LPDDR5 102.4 GB/s
Storage	16GB eMMC 5.1	Supports external NVMe
Camera	Up to 6 cameras (24 via virtual channels) 14 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps)	Up to 4 cameras (8 via virtual channels*) 8 lanes MIPI CSI-2 D-PHY 1.2 (20 Gbps)
Video Encode	2x 4K60 (H.265) 10x 1080p60 (H.265) 22x 1080p30 (H.265)	1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)
Video Decode	2x 8K30 (H.265) 6x 4K60 (H.265) 22x 1080p60 (H.265) 44x 1080p30 (H.265)	1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)
PCIe	1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4)	1 x4 + 3 x1 (PCIe Gen4, Root Port & Endpoint)
Networking	10/100/1000 BASE-T Ethernet	1x GbE
Display	2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 No DSI support	1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Power	10W \| 15W \| 20W	10W \| 15W \| 25W
Mechanical	69.6mm x 45mm 260-pin SO-DIMM connector	69.6mm x 45mm 260-pin SO-DIMM connector

*Virtual channel related camera information for Jetson Orin modules is not final and subject to change.

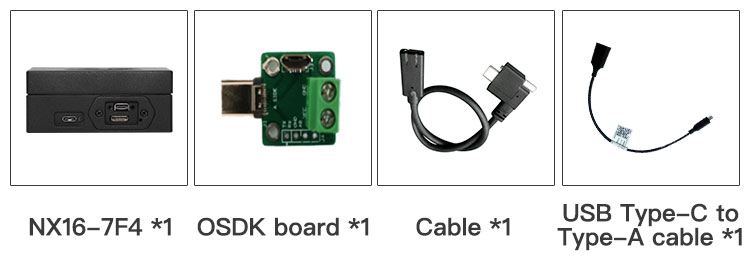

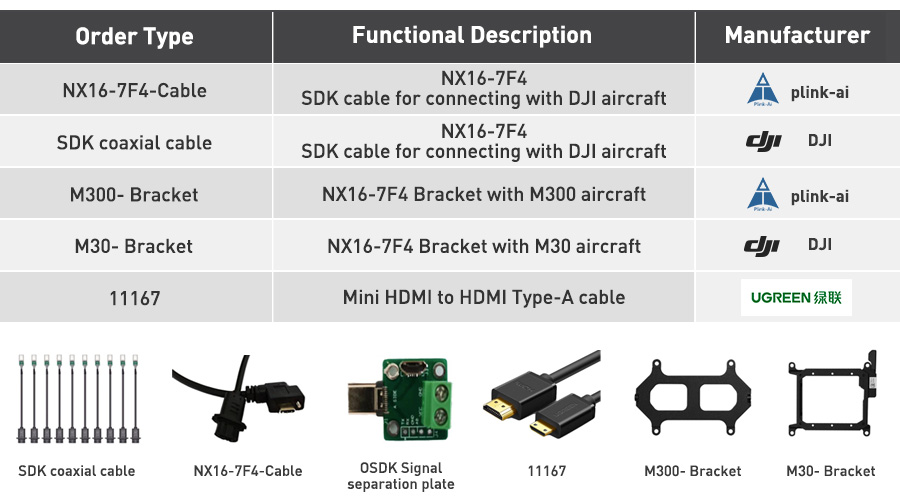

Order Information

Model	Function
NX16-7F4	NVIDIA Jetson Xavier NX 16G module compact AI embedded industrial computer.
ONX16-7F4	NVIDIA Jetson AGX Orin NX 16G module compact AI embedded industrial computer.
