Introduction

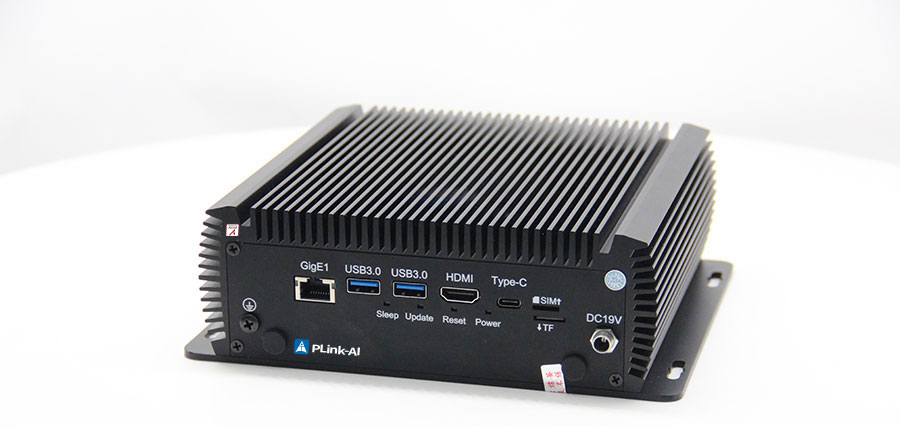

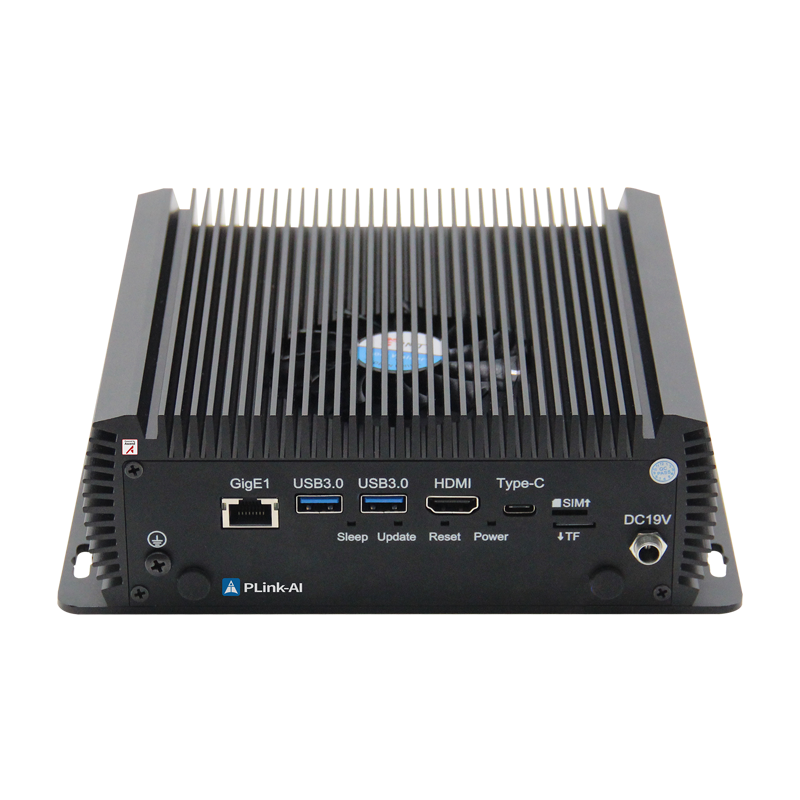

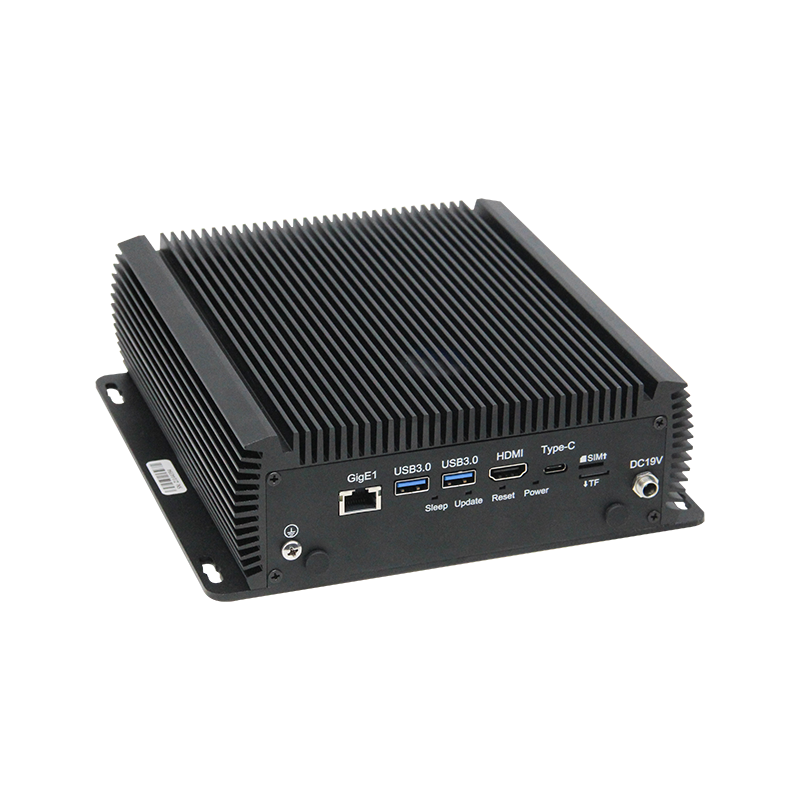

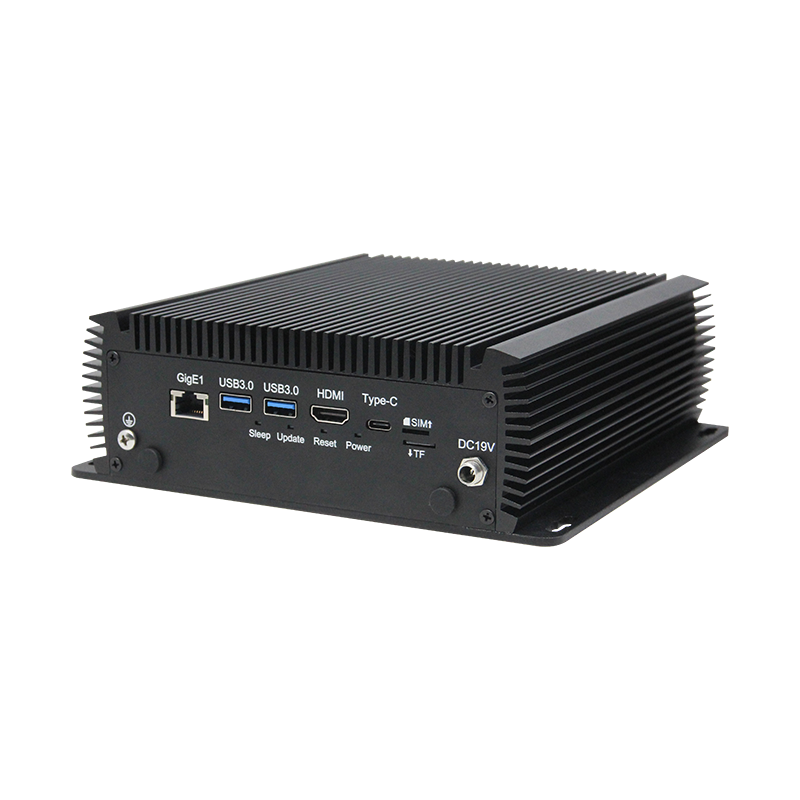

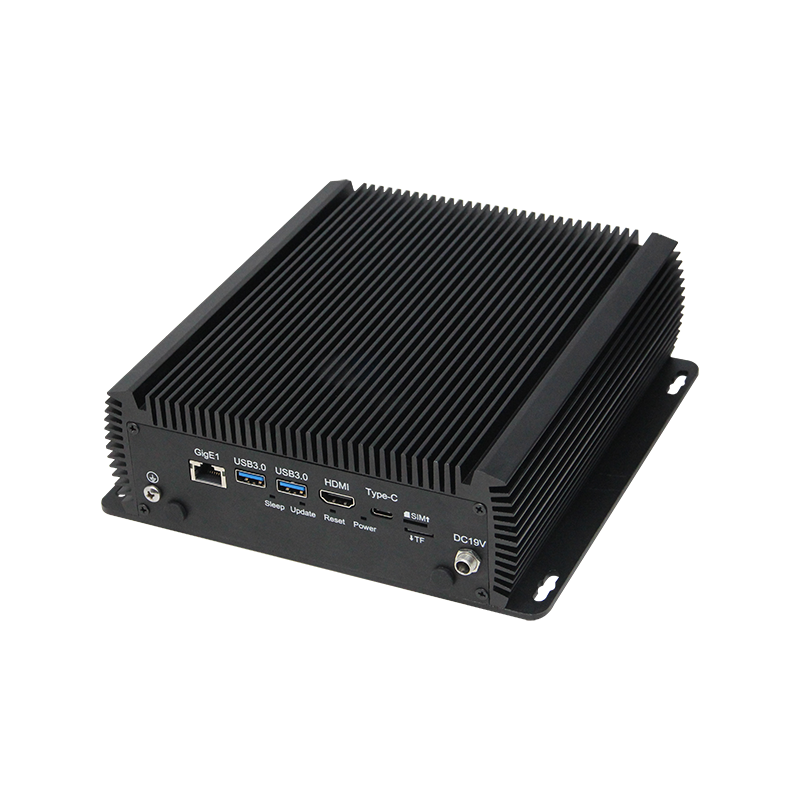

101F1E5 is an industrial-grade computing device equipped with the Ascend Atlas 200I A2 acceleration module. It offers two AI compute options of 8 TOPS or 20 TOPS, enabling AI application acceleration for tasks such as target recognition and image classification at the edge. This device can meet the real-time AI inference performance requirements of edge AI scenarios in smart parks, machine vision, security patrols, and smart retail.
The device features a robust and compact fan cooling design, with abundant I/O interfaces and key interfaces equipped with electrostatic protection capabilities, providing a solid guarantee for the long-term stable operation of edge AI scenarios in various fields.
Specifications
Processor
Ascend Atlas 200I A2
AI Compute
20 TOPS INT8， 10 TFLOPS FP16
8 TOPS INT8， 4 TFLOPS FP16
CPU
4core * 1.6GHz
4core * 1.0GHz
Memory
LPDDR4X, 12/8/4 GB, with a total bandwidth of 51.2 / 34.1 /34.1 GB/s, ECC supported
LPDDR4X, 12/8/4 GB, with a total bandwidth of 51.2 / 34.1 /34.1 GB/s, ECC supported
Video Encoder/Decoder
JPEG Encoder/Decoder
40x 1080P 30FPS, 4x 4K (3840x2160) 75FPS H.264 / H.265
20x 1080P 30FPS, 3x 4K (3840x2160) 50FPS H.264 / H.265
JPEG decoder:1080P 512FPS,
JPEG encoder:1080P 256FPS, max. resolution:16384 x 16384
40x 1080P 30FPS, 4x 4K (3840 x 2160) 75FPS H.264 / H.265
20x 1080P 30FPS, 3x 4K (3840 x 2160) 50FPS H.264 / H.265
JPEG decoder:1080P 512FPS,
JPEG encoder:1080P 256FPS,
max. resolution:16384 x 16384
Display
1xHDMI
USB
2x USB 3.0 Type-A, 1x USB 3.0 Type-C
Network
5x RJ45
SD
1x Micro SD
Button
1x Power,1x Recovery,1x Reset, 1x sleep
Expansion
1x miniPCIe, 1x M.2 KEY E(2230), 1x M.2 KEY M(2242), 1x M.2 KEY B(3050), 1x nano SIM, 1x SATA(供电)
Operating Temperature
-25℃~+65℃
Dimensions
202mm*200mm*65.5mm
Input Voltage
DC 19V~36V
Weight
2036g
OS
openEuler/Ubuntu

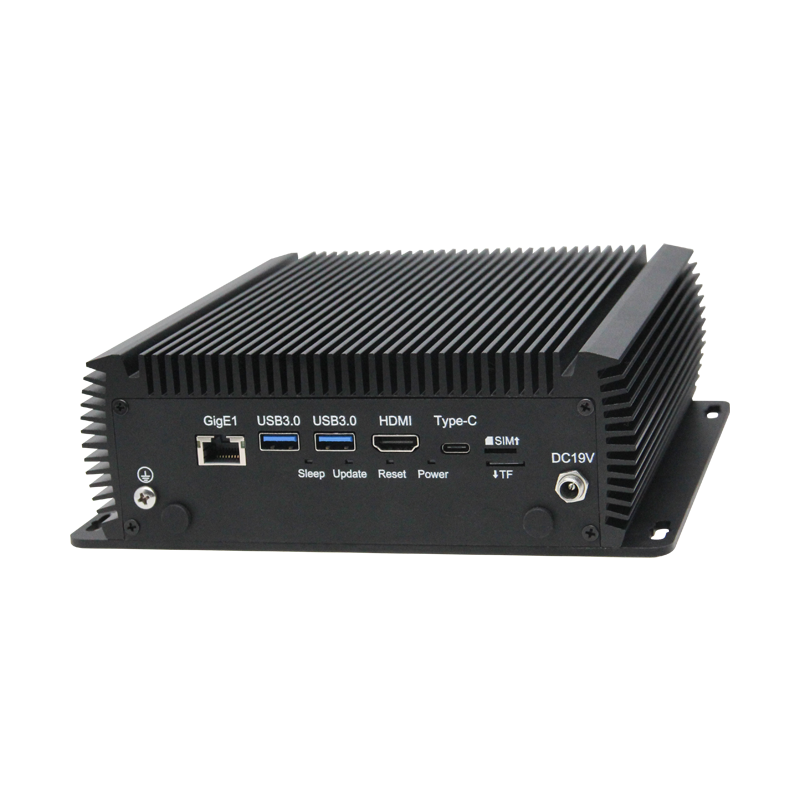

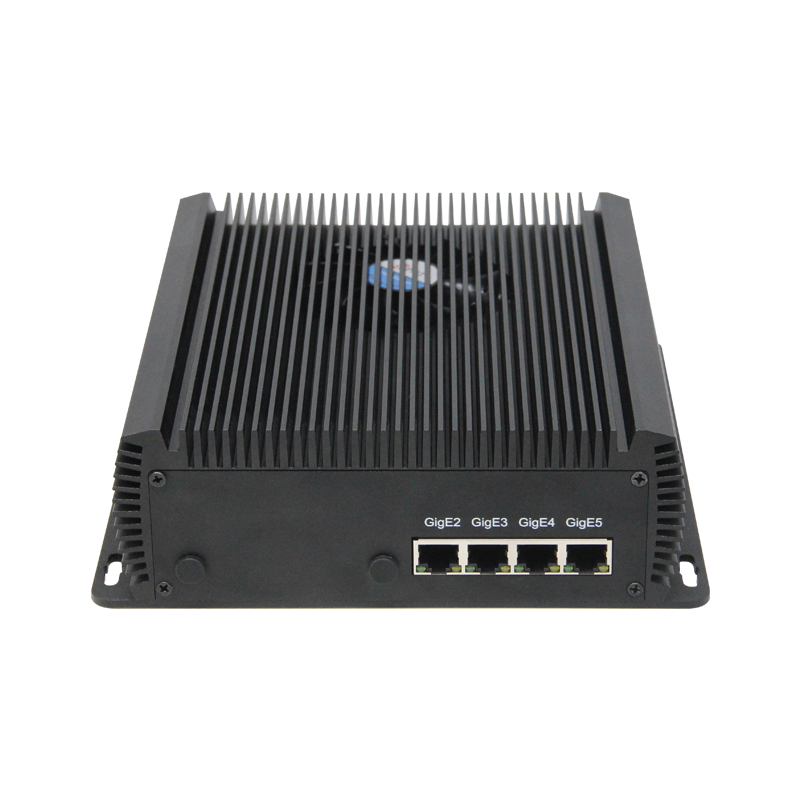

Interfaces

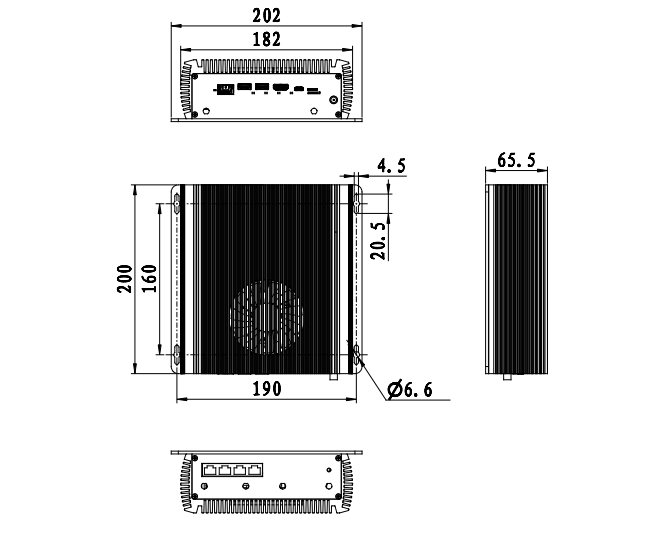

Dimensions
