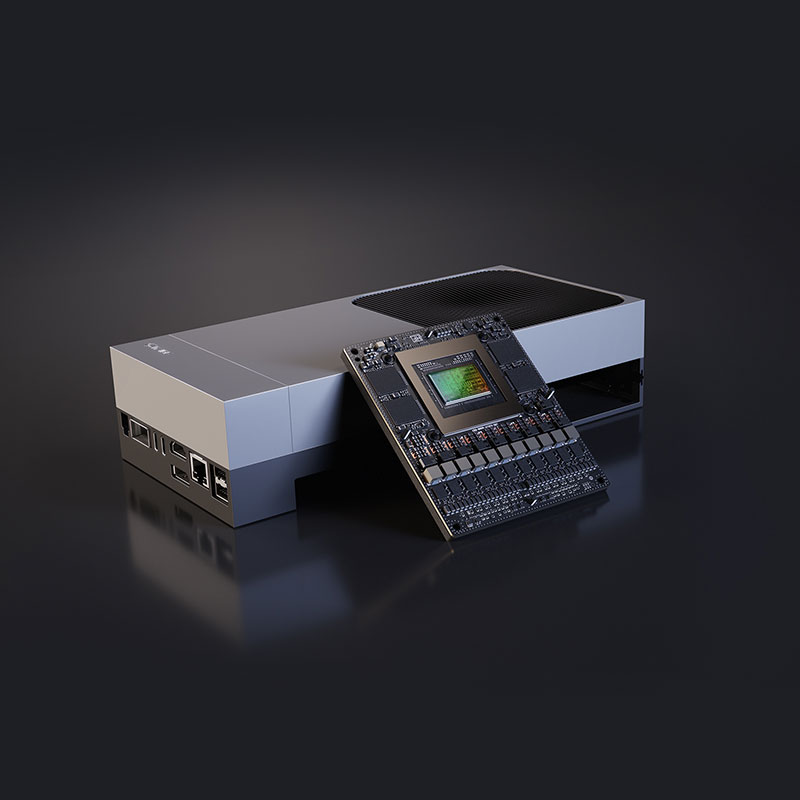

NVIDIA® Jetson Thor™ series modules give you the ultimate platform for physical AI and robotics, delivering up to 2070 FP4 TFLOPS of AI compute and 128 GB of memory with power configurable between 40 W and 130 W. They deliver over 7.5x higher AI compute than NVIDIA AGX Orin™, with 3.5x better energy efficiency.
|
|
|
Jetson T5000 |
|
AI Performance |
2070 TFLOPS (FP4—Sparse) |
|
| GPU |
2560-core NVIDIA Blackwell architecture GPU with 96 fifth-gen Tensor Cores Multi-Instance GPU (MIG) with 10 TPCs |
|
| CPU |
14-core Arm® Neoverse®-V3AE 64-bit CPU 1 MB L2 cache per core 16 MB shared system L3 cache |
|
|
Memory |
128 GB 256-bit LPDDR5X 273 GB/s |
|
|
Storage |
1 TB NVMe M.2 Key M Slot |
Supports NVMe through PCIe Supports SSD through USB3.2 |
| 视频编码 |
6x 4Kp60 (H.265) 12x 4Kp30 (H.265) 24x 1080p60 (H.265) 50x 1080p30 (H.265) 48x 1080p30 (H.264) 6x 4Kp60 (H.264) |
|
| 视频解码 |
4x 8Kp30 (H.265) 10x 4Kp60 (H.265) 22x 4Kp30 (H.265) 46x 1080p60 (H.265) 92x 1080p30 (H.265) 82x 1080p30 (H.264) 4x 4Kp60 (H.264) |
|
|
Camera |
HSB camera via QSFP slot USB camera |
Up to 20 cameras via HSB Up to 6 cameras through 16x lanes MIPI CSI-2 Up to 32 cameras using Virtual Channels C-PHY 2.1 (10.25 Gbps) D-PHY 2.1 (40 Gbps) |
|
PCIe |
M.2 Key M slot with x4 PCIe Gen5 M.2 Key E slot with x1 PCIe Gen5 |
Up to Gen5 (x8 lanes) Root port only—C1 (x1) and C3 (x2) Root Point or Endpoint—C2 (x1), C4 (x8), and C5 (x4) |
|
Networking |
1x 5GBe RJ45 connector 1x QSFP28 (4x 25 GbE) |
4x 25 GbE |
|
Power |
40 W – 130 W |
40 W瓦 – 130 W |
|
Mechanical |
243.19 mm x 112.40 mm x 56.88 mm Thermal Transfer Plate (TTP) and optional fan or heat sink |
699-pin B2B connector Integrated Thermal Transfer Plate (TTP) with heatpipe |
