The Y-C28 is equipped with the NVIDIA Jetson thor™ core module and offers 128GB of memory. Rich I/O interfaces are compatible with different types of sensors, meeting the requirements of embodied intelligent multi-modal fusion. The product complies with industrial-grade standards, ensuring stable and reliable operation in industrial application environments.
Y-C28 carrier board specification
|
Module |
NVIDIA Jetson Thor |
| Temperature |
-40 ~ +85℃ |
|
Power |
DC 9V～36V |
|

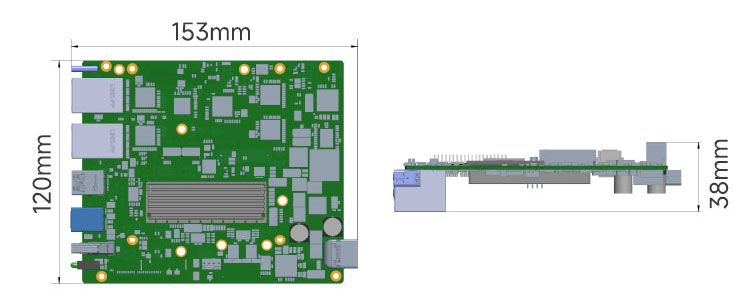

Size |
120mm x 153mm x 38mm |
NVIDIA Jetson Thor technical specification
|
AI Perf |
2070 TFLOPS (FP4—Sparse) |
| GPU |
2560-core NVIDIA Blackwell architecture GPU with 96 fifth-gen Tensor Cores |
| CPU |
14-core Arm® Neoverse®-V3AE 64-bit CPU 64 KB I-Cache, 64 KB D-Cache 1 MB L2 cache per core 16 MB shared system L3 cache |
|
Memory |
128 GB 256-bit LPDDR5X 273 GB/s |
|
Storage |
Supports NVMe through PCIe Supports SSD through USB 3.2 |
|
Video Encode |
6x 4Kp60 (H.265) 12x 4Kp30 (H.265) 24x 1080p60 (H.265) 50x 1080p30 (H.265) 48x 1080p30 (H.264) 6x 4Kp60 (H.264) |
|
Video Decode |
4x 8Kp30 (H.265) 10x 4Kp60 (H.265) 22x 4Kp30 (H.265) 46x 1080p60 (H.265) 92x 1080p30 (H.265) 82x 1080p30 (H.264) 4x 4Kp60 (H.264) |
|
Power |
40 W–130 W |
