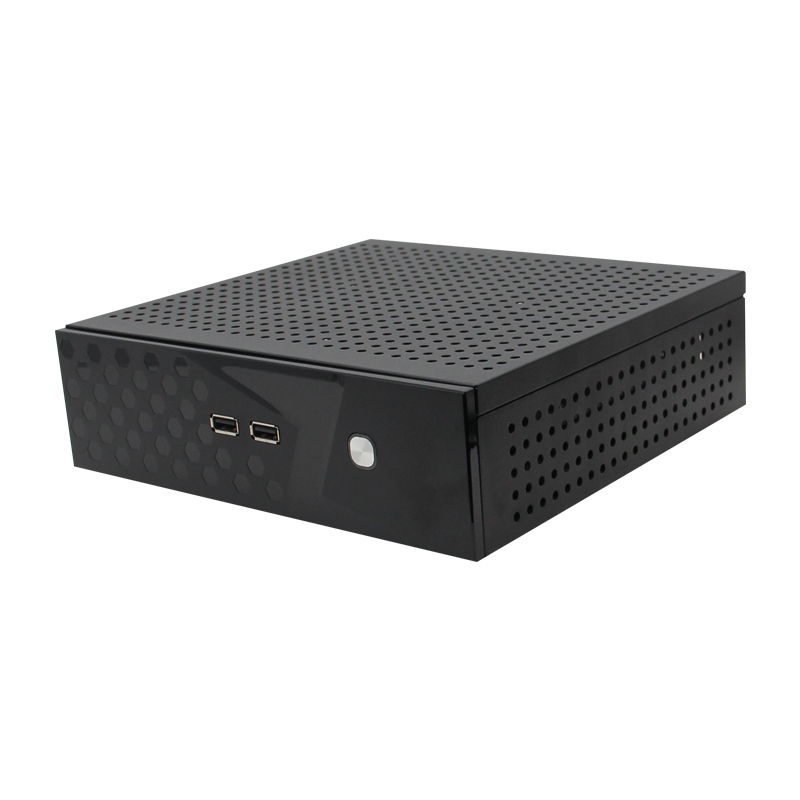

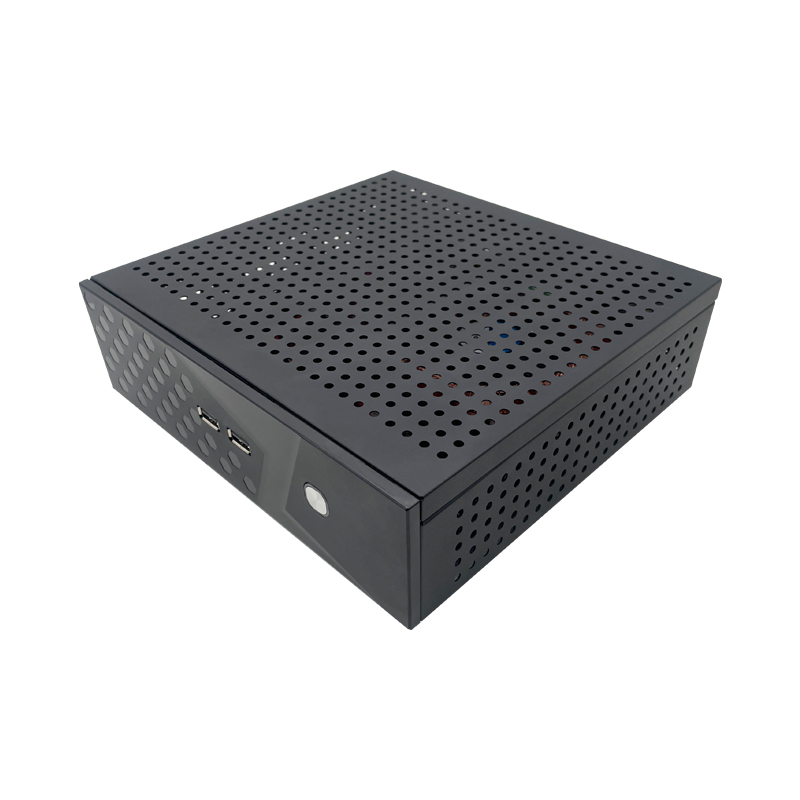

Jetson AGX Orin / AGX Xavier 工控机 8F3E1

产品尺寸:210mm×200mm×60mm
电源要求:12V
工作温度: -20~+65℃
重量:1485g


NVIDIA Jetson AGX Xavier/AGX Orin

嵌入式工控机 8F3E1
8F3E1是采用NVIDIA AI嵌入式系统构建的紧凑型边缘计算机


* 适配模组:

NVIDIA Jetson AGX Orin/AGX Xavier Module

* 接口:

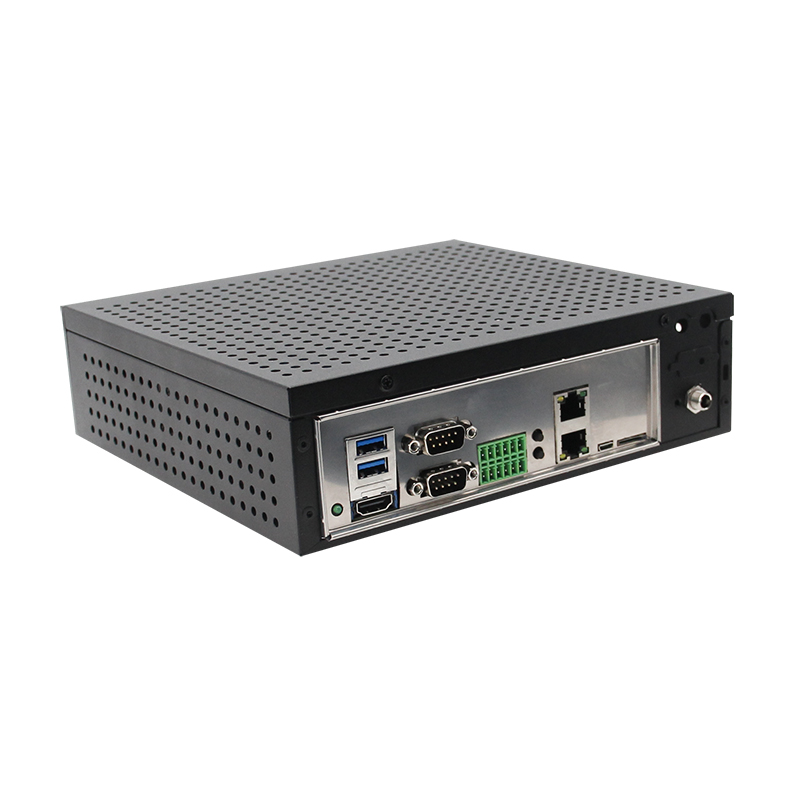

Offer 2x RJ45, 2x USB 3.0, 2x USB 2.0, 1x HDMI and 1x USB Micro B

* 外设支持:
1x fan, 1x RTC, 2x M.2 PCIe Key M connector, 1x 10 pin USB expansion connector, 2x MiniPCIE connector, 1x 120 pins CSI camera connector, 1x TF slot, 2x DB9 connector and 1x24 pin expansion header

* 输入电源:DC +12V

应用场景:

*自助机器
*无人驾驶船只
*工业自动化和控制系统
*数字标牌和媒体播放器
*物联网和嵌入式系统
*教育和科研


Product Name 8F3E1
Jetson Module Supported NVIDIA Jetson AGX Orin/AGX Xavier
Networking 2x Gigabit Ethernet (10/100/1000)
USB 2x USB 3.0 Type-A
2x USB 2.0
1x Micro-B
Camera 1x 120 pins CSI Camera expansion header
Display 1x HDMI
FAN 1x FAN connector(12V PWM)
M.2 KEY M 2x M.2 KEY M interface
Other I/O 2x CAN,2x RS232,1x Debug,4x GPIO,1x SPI,2x I2C
Mechanical 210mm x 200mm x 60mm
Weight 1485g
Operating Temperature -20℃~65℃

Y-C8 自研载板/开发板具有网络功能,配备两个千兆以太网(10/100/1000)端口,可实现快速数据传输速度。它还配备了2个USB 3.0 Type-A接口,2个USB 2.0接口和1个Micro-B接口,用于多种连接。

Note

当与Jetson AGX Xavier模块配合使用时,只有一个USB 3.1可用,其余为USB 2.0,一个RJ45网口可选

AGX Xavier 32G AGX Xavier Industrial AGX Orin 32G AGX Orin 64G
AI Performance 32 TOPS 30 TOPS 200 TOPS 275 TOPS
GPU 512-core NVIDIA Volta GPU with 64 Tensor Cores 1792-core NVIDIA Ampere GPU with 56 Tensor Cores 2048-core NVIDIA Ampere GPU with 64 Tensor Cores
CPU 8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3 8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
Memory 32GB 256-bit LPDDR4x 136.5GB/s 32GB 256-bit LPDDR4x (ECC support)
136.5GB/s
32GB 256-bit LPDDR5 204.8 GB/s 64GB 256-bit LPDDR5 204.8 GB/s
Storage 32GB eMMC 5.1 64GB eMMC 5.1
Video Encode 4x4K60 (H.265) 16x1080p60 (H.265) 32x1080p30 (H.265) 2x 4K60 (H.265)
6x 4K30 (H.265)
12x 1080p60 (H.265)
24x 1080p30 (H.265)
1x4K60 (H.265) 3x4K30 (H.265) 6x1080p 60 (H.265) 12x1080p 30 (H.265) 2x4K60 (H.265) 4x4K30 (H.265) 8x1080p 60 (H.265) 16x1080p 30 (H.265)
Video Decode 2x8K30 (H.265) 6x4K60 (H.265) 26x1080p60 (H.265) 52x 1080p30 (H.265) 2x 8K30 (H.265)
4x 4K60 (H.265)
8x 4K30 (H.265)
18x 1080p60 (H.265)
36x 1080p30 (H.265)
1x8K30 (H.265) 2 x4K60 (H.265) 4x4K30 (H.265) 9x1080p60 (H.265) 18x1080p30 (H.265) 1x8K30 (H.265) 3x4K60 (H.265) 7x4K30 (H.265) 11x1080p60 (H.265) 22x 1080p30 (H.265)
PCIe 1x8 + 1x4 + 1x2 + 2x1 (PCIe Gen4, Root Port & Endpoint) Up to 2x8 + 2x4 + 2x1 (PCIe Gen4, Root Port & Endpoint)
Networking 10/100/1000 BASE-T Ethernet 1x GbE 4x 10GbE
Display 3 multi-mode DP 1.4 /eDP 1.4/HDMI 2.0 No DSI support 1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Power 10W - 30W 20W - 40W 15W - 40W 15W - 60W
