Jetson Xavier NX Carrier Board Y-C7Jetson Xavier NX Carrier Board Y-C7Jetson Xavier NX Carrier Board Y-C7Jetson Xavier NX Carrier Board Y-C7Jetson Xavier NX Carrier Board Y-C7Jetson Xavier NX Carrier Board Y-C7

Jetson Xavier NX Carrier Board Y-C7

1 Gigabit Ethernet (10/100/1000 BASE-T)
1 HDMI 2.0 interface (maximum 6Gbps, 24bpp, 4096x2160@60Hz)
1 tight-fitting full-speed USB3.1 Type C connector
1 full-length MiniPCIe connector
1x M.2 E key connector
1 RS-232 level serial port, 1 3.3V level serial port
3 3.

Y-C7 is a low cost, small size, industrial grade carrier board for NVIDIA® Jetson™ Xavier NX, TX2 NX, Nano series core modules. For intelligent computing applications in the drone industry, the main interface is designed for electrostatic safety protection, and a high-reliability, 70W load-carrying power supply solution is adopted. The input power supply has overvoltage and reverse polarity protection functions, and has a wealth of external interfaces. , the whole board device adopts wide temperature model. For the shock resistance requirements of UAVs, all interfaces are designed with flexible wires, so as to improve the shock resistance of the connection with peripherals through the unloading force of the flexible wires. For high-speed USB3.1 signals, a Type-C connector design with a fixed structure is adopted, and Type-C peripherals or adapter cables can be locked by screws.


Through the 2 lane MIPI CSI interface on the Y-C7, a variety of camera modules can be connected, and video signals such as CVBS (PAL/NTSC), SDI, and HDMI can also be connected. The Y-C7 carrier board is surface-mounted with a 64GB industrial-grade EMMC storage particle. Through the storage expansion software provided by us, one-key configuration of the expanded storage space can be performed conveniently, quickly and efficiently.


The Y-C7 carrier board can carry hundreds of functional modules through a MiniPCIe connector and an M.2 E key connector to further expand system functions. It can be expanded to 4 full-speed USB3.0 signals, 2 Gigabit Ethernet signals, and 2 full-speed SATA signals. It can also be equipped with 4G/wifi communication modules, video capture/output cards of various formats, AD capture cards, and multi-serial ports. card, sound acquisition/output card, multi-function IO card...

Product Features:

1 anti-vibration full-speed USB3.1 Type-C connector

1 Micro USB connector

1 Gigabit Ethernet (10/100/1000 BASE-T) connector

1 HDMI 2.0 interface

1 USB2.0 interface

1 full-length M.2 E key connector

1 full-length MiniPCIe connector

1 fan control interface

1 RS232 level serial port

One 3.3V TTL level UART serial port

1x 2 Lane MIPI Camera Interface FPC Connector

1 set of 3.3V level I2C signal

1 CAN bus interface with onboard transceiver

3 3.3V bit programmable GPIO, 1 bit programmable GPO with 3.3V strong drive capability

1 RTC clock keep power supply interface

5V, 3.3V power output interface

1 work indicator

Power on automatically

Board size: 80mm×60mm×16.8 mm

Power Requirements: DC +9V ~ +24V

Operating temperature: -40 ~ +85℃

Weight: 40g



*与Jetson Nano模块搭配使用时,CAN总线接口功能不可用,M.2连接器不可用

订货信息:


订货型号

功能描述

Y-C7

搭配NVIDIA® Jetson™  Xavier NX、TX2 NX、Nano 系列核心模块的小体积接口扩展载板

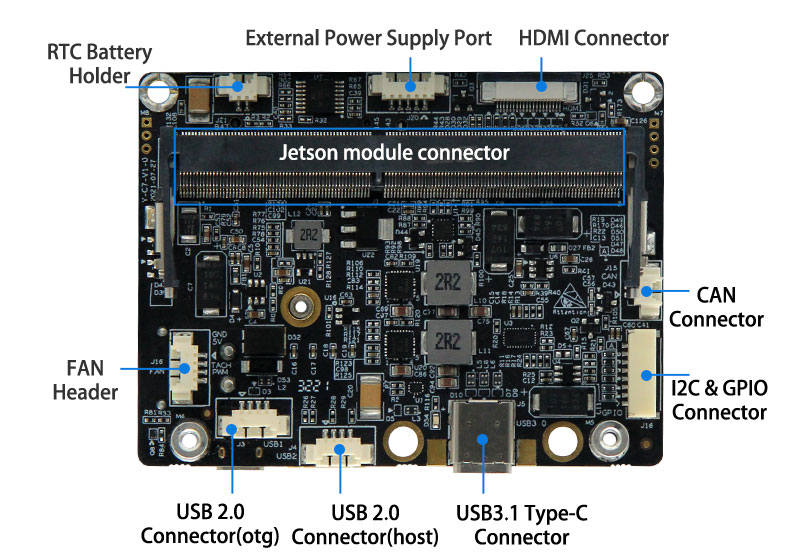

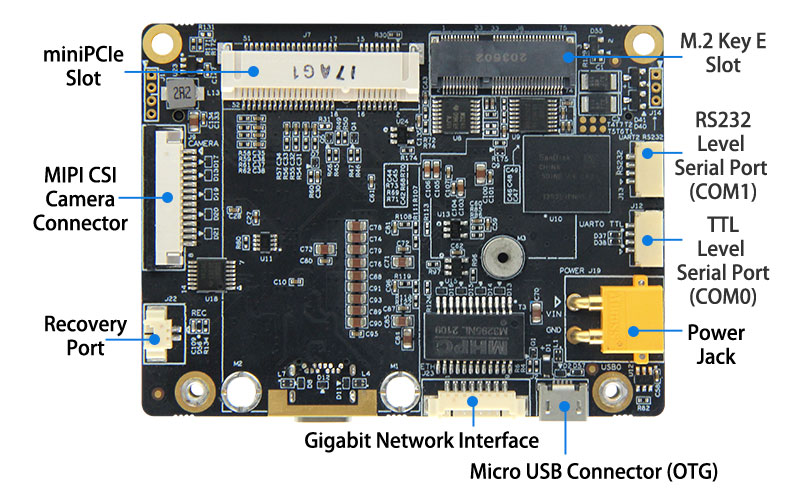

板载接口说明图:
