NVIDIA Jetson 开发系统

  • Orin NX/Orin Nano 开发系统
  • Orin NX/Orin Nano 开发系统
  • Orin NX/Orin Nano 开发系统
  • Orin NX/Orin Nano 开发系统
Orin NX/Orin Nano 开发系统Orin NX/Orin Nano 开发系统Orin NX/Orin Nano 开发系统Orin NX/Orin Nano 开发系统

Orin NX/Orin Nano 开发系统

适配NVIDIA Jetson Orin NX/Orin Nano 模组
尺寸:104mm*90mm*34mm
重量:159g
温度:0~+50°C
电源要求:DC 9V~19V

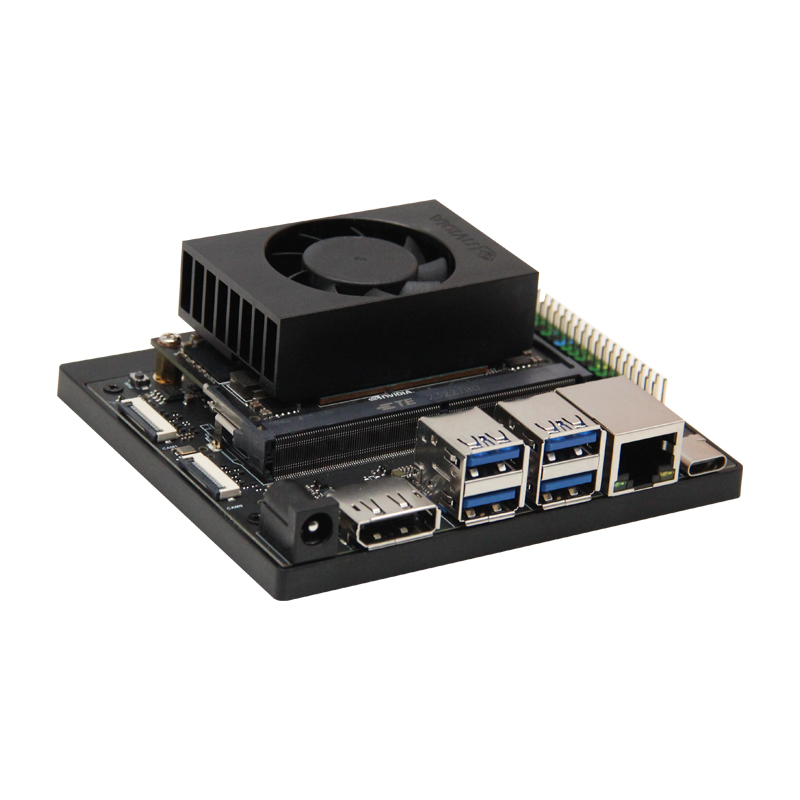

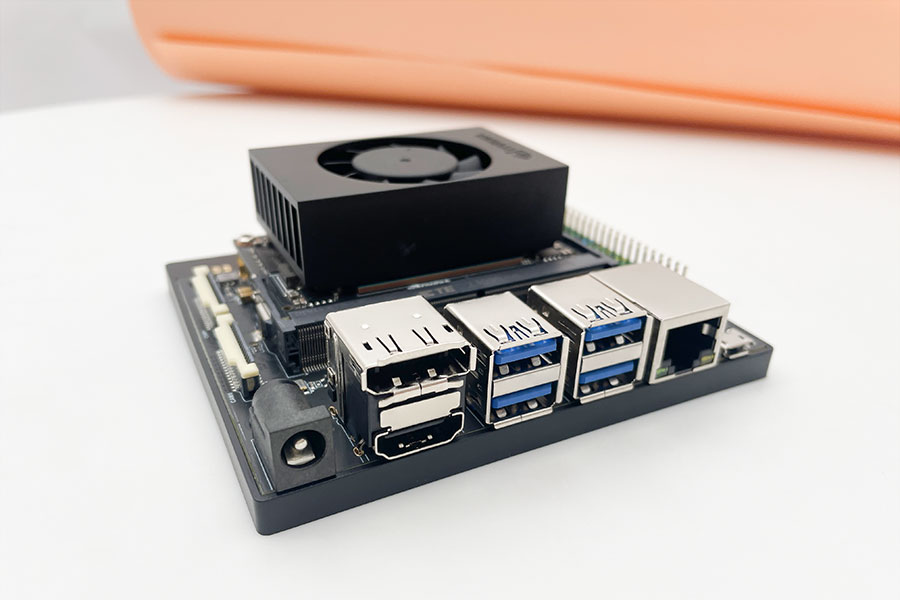

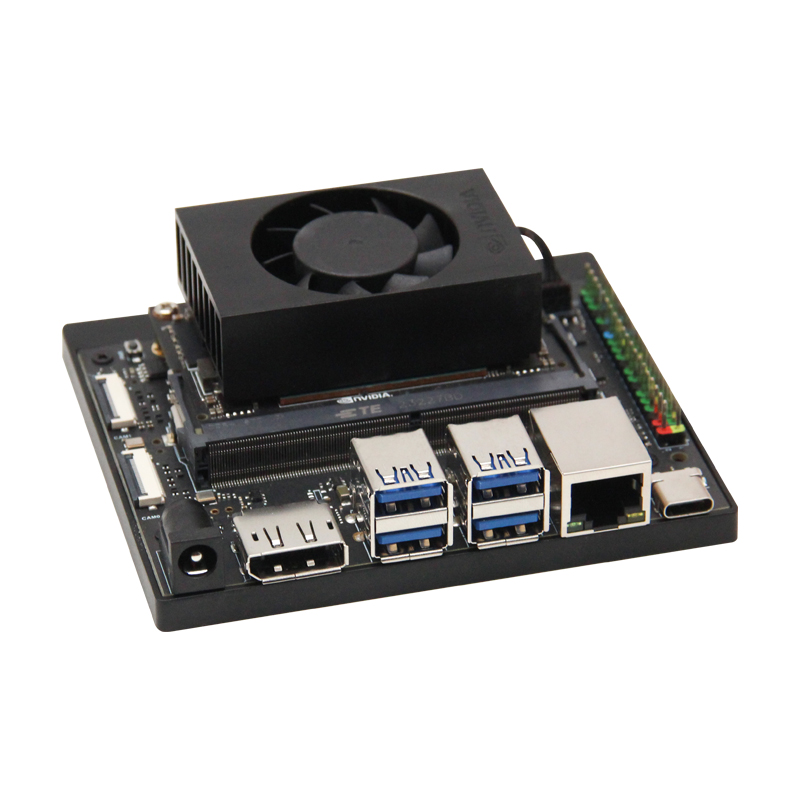

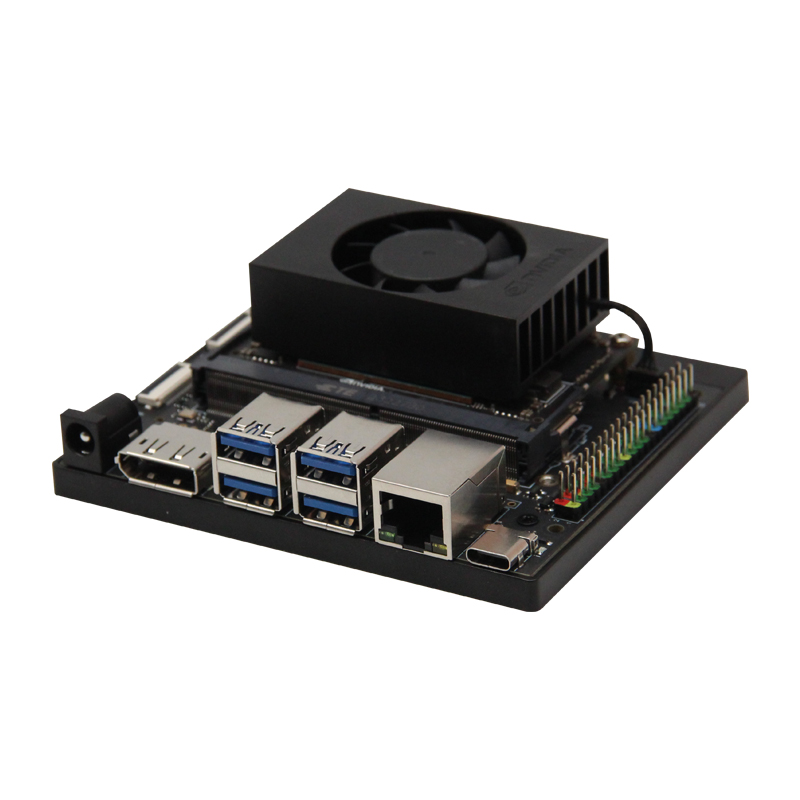

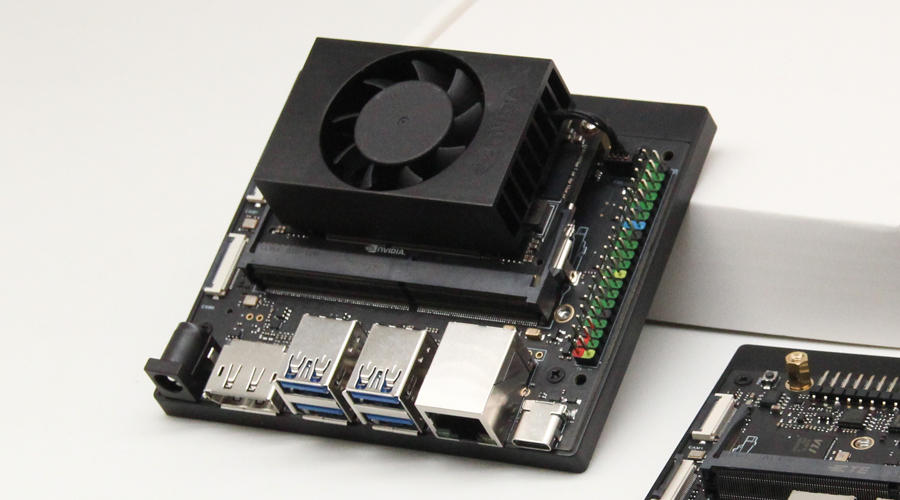

Orin NX/Orin Nano 国产开发套件

Jetson Orin NX/Orin Nano 开发套件是基于 Jetson Orin NX/Orin Nano 核心板设计,提供 M.2、 HDMI、USB 等更多丰富的接口,方便用户更好地发挥产品性能.套件所配Orin NX/Orin Nano核心板 4GB/8GB/16GB 显存版本可选,无内置存储模块,可提供高达 100 TOPS 的 AI 性能。搭配 128 GB NVMe 固态硬盘,高速读写,满足大型 AI 开发项目 的需要。


USB 3.2 Type-A
4

Type-C

1
RJ45 1
HDMI 1
M.2 E key
1
M.2 M key
1

CSI camera

2x MIPI CSI-2

DisplayPort

1


NVIDIA Jetson Orin NX与NVIDIA Jetson Orin Nano模组的对比


Jetson Orin NX 16GB
Jetson Orin NX 8GB
Jetson Orin Nano 8GB
Jetson Orin Nano 4GB
AI Performance
100 TOPS
70 TOPS
40 TOPS
20 TOPS
GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
CPU 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU2MB L2 + 4MB L3
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3
Memory 16GB 128-bit LPDDR5
102.4GB/s
8GB 128-bit LPDDR5
102.4GB/s
8GB 128-bit LPDDR5
68 GB/s
4GB 64-bit LPDDR5
34 GB/s

Storage

-
(Supports external NVMe)
Video Encode
1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)
12x 1080p30 (H.265)
1080p30 supported by 1-2 CPU cores

Video Decode

1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265)
1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)

CSI Camera

Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)
Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)

PCIe

1 x4 + 3 x1
(PCIe Gen4, Root Port, & Endpoint)
1 x4 + 3 x1
(PCIe Gen3, Root Port, & Endpoint)
USB 3x USB 3.2 Gen2 (10 Gbps)
3x USB 2.0
3x USB 3.2 Gen2 (10 Gbps)
3x USB 2.0

Networking

1x GbE
Display 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4**
Other I/O 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
PowerPower 10W - 25W
10W - 20W
7W - 15W
7W - 10W
Mechanical
69.6mm x 45mm
260-pin SO-DIMM connector
