NVIDIA Jetson 扩展载板

  • Jetson AGX Orin/AGX Xavier 载板 Y-C8
  • Jetson AGX Orin/AGX Xavier 载板 Y-C8
  • Jetson AGX Orin/AGX Xavier 载板 Y-C8
Jetson AGX Orin/AGX Xavier 载板 Y-C8Jetson AGX Orin/AGX Xavier 载板 Y-C8Jetson AGX Orin/AGX Xavier 载板 Y-C8

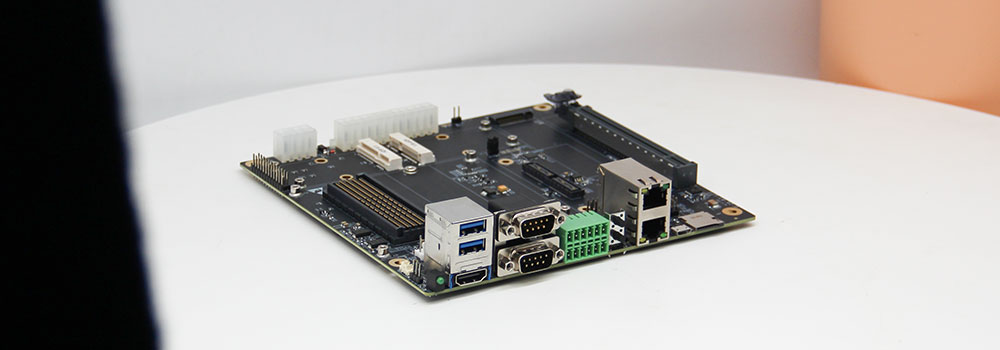

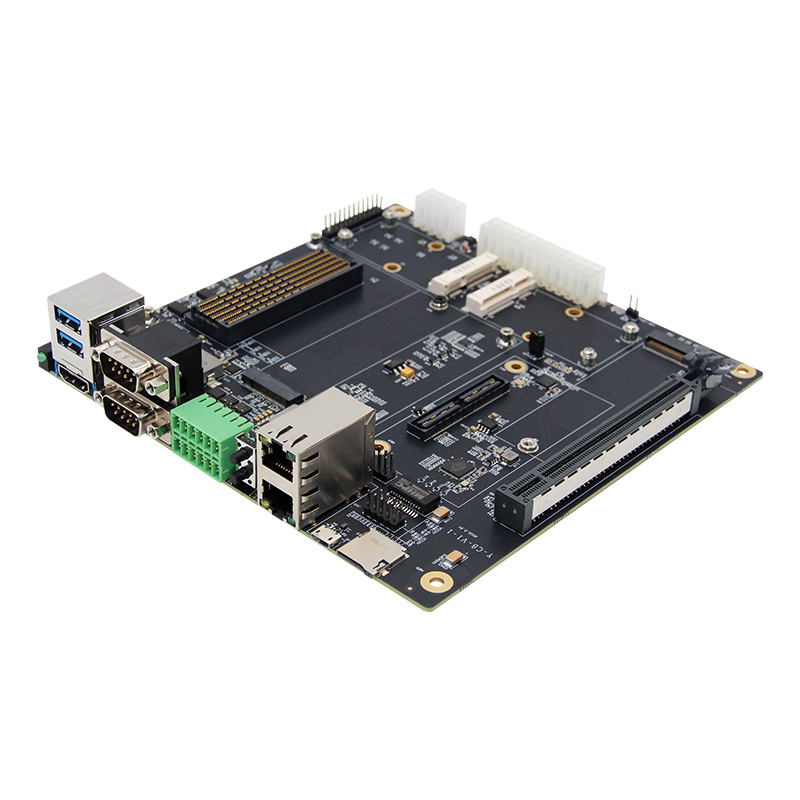

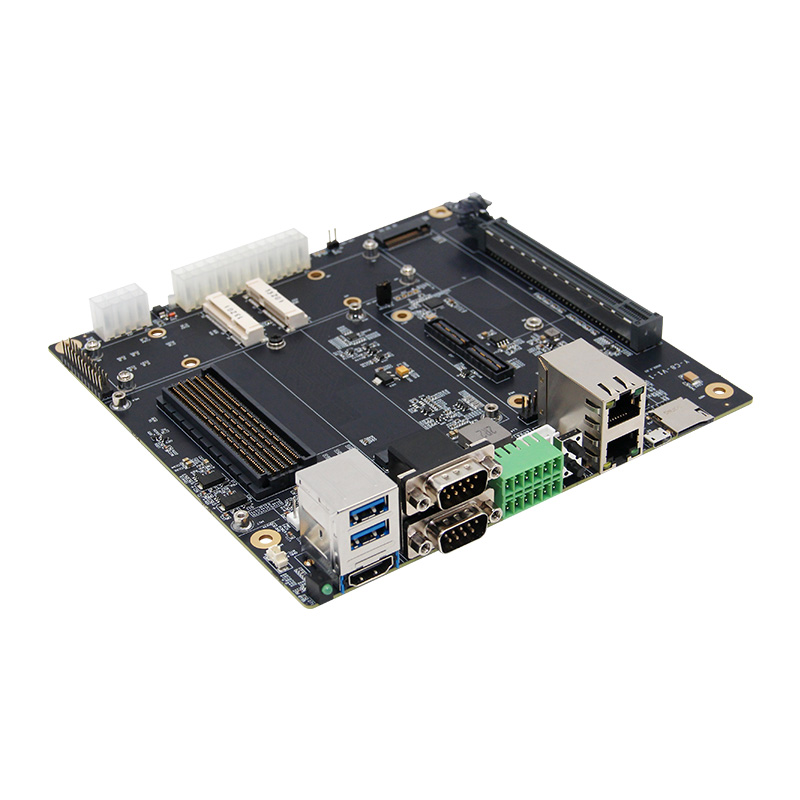

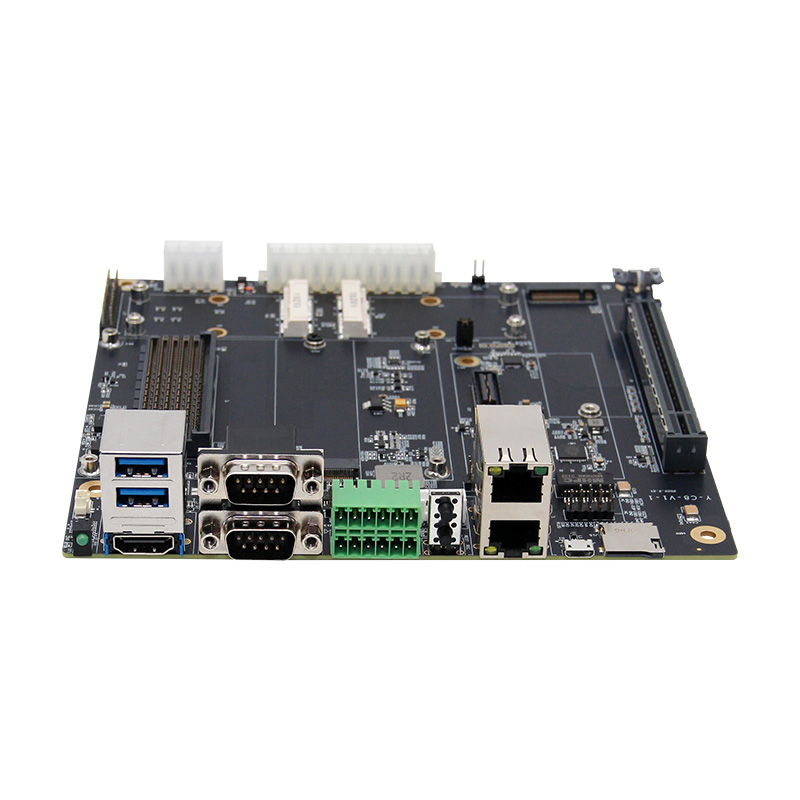

Jetson AGX Orin/AGX Xavier 载板 Y-C8

AGX Orin模组适配
电源要求:DC +12V
工作温度:-20~+65℃
板卡尺寸:170mm x 170mm x 34mm
重量:260g
NVIDIA Jetson AGX Xavier/AGX Orin
载板/开发板 Y-C8
主要特性
* 适配模组: NVIDIA Jetson AGX Orin/AGX Xavier Module

* 通用接口:
2x RJ45, 2x USB, 1x HDMI and 1x USB Micro B


* Other I/O: 1x RTC, 2x M.2 PCIe Key M connector, 1x 10 pin USB expansion connector, 2x MiniPCIE connector, 1x 120 pins CSI camera connector, 1x Micro SD slot, 2x DB9 connector and 1x 24 pin expansion header, 2x CAN, 2x RS232, 1x Debug, 4x GPIO, 1x SPI, 2x I2C



* 输入功率: DC +12V


* 尺寸: 170mm*170mm*34mm

* 工作温度: -20°C to 65℃


Application
* robots and robotics
* V2X and Healthcare
* Industrial automation and control systems
* Digital signage and media players
* IoT (Internet of Things) and embedded systems
* Education and prototyping projects
Product Name
Y-C8
Jetson Module Supported
NVIDIA Jetson AGX Xavier/AGX Orin
Networking
2x GigabitEthernet (10/100/1000)
USB
2x USB
1x Micro-B
Camera
1x 120 pins CSI Camera expansion header
Display
1x HDMI
FAN
1x FAN connector(12V PWM)
M.2 KEY M
2x M.2 KEY M interface
Other I/O
2x CAN,2x RS232,1x Debug,4x GPIO,1x SPI,2x I2C
Mechanical
170mm x 170mm x 34mm
Weight
260g
Operating Temperature
-20℃~+65℃




Module
AGX Xavier 32G
AGX ORIN 32G
AGX ORIN 64G
CPU
8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
CPU Memory
32GB 256-bit LPDDR4 x 136.5GB/s
32GB 256-bit LPDDR5 204.8 GB/s
64GB 256-bit LPDDR5 204.8 GB/s
GPU
512-core NVIDIA Volta GPU with 64 Tensor Cores
1792-core NVIDIA Ampere GPU with 56 Tensor Cores
2048-core NVIDIA Ampere GPU with 64 Tensor Cores
USB Micro-B
1 x Type B (OTG)
USB Type-A
1 x USB 3.1
2 x USB 3.1
2 x USB 3.1
Other I/O
4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS 232 | 1 x Debug(UART)
2 x CAN (with on-board transceiver)
Networking
1 x 10/100/1000 Ethernet/RJ45
Power Supply
DC +12V
Temperature
-20~+65°C
Dimensions
170mm×170mm×34 mm
Weight
260g
Y-C8
Y-C9
AGX Orin Developer Kit
USB Type-A
2x USB 3.0
3x USB 3.0
2x USB 3.2 2.0 2x USB 3.2 1.0
USB Type-C
1x USB Type-C
2X USB 3.2 2.0
supporting USB-PD
USB Micro-B
1x USB 2.0
USB 2.0(DEBUG)
PCIe
x16 PCIe slot supporting PCIe x8
x16 PCIe slot supporting x8 PCIe Gen4
MiniPCIe
2x MPCIe
2x MPCIe
RJ45
2x RJ45
one of the RJ45 connector needs
1x RJ45
1x RJ45 connector with up to 10 GbE
DisplayPort
HDMI
HDMI
1x DisplayPort 1.4a (+MST) connector
M.2 Key M
2x
1x
x4 PCIe Gen4
M.2 Key E
x1 PCIe Gen4
microSD slot
1x
UHS-1 card supporting SDR104
Other I/O
2x CAN
4xGPIO
1x SPI
1x I2C
40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO)
12-pin automation header
10-pin audio panel header
10-pin JTAG header
4-pin fan header
2-pin RTC batter backup connector
microSD slot
DC power jack
Power, Force Recovery, and Reset buttons
Y-C8 具有网络功能,配备2个千兆以太网(10/100/1000)端口,可实现快速数据传输速度。它还配备了2个USB 3.0 Type-A接口,2个USB 2.0接口和一个Micro-B接口,用于多种连接选项。

Note

当与Jetson AGX Xavier模块配合使用时,只有一个USB 3.1可用,其余为USB 2.0,一个RJ45网口可选
